Product Details:
Place of Origin: Guang Dong
Brand Name: Jetacon
Certification: UL, CE
Model Number: 6ES7 222-1BL22-0XA0
Payment & Shipping Terms:
Minimum Order Quantity: 5 pieces
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T, L/C, Paypal, Payoneer
Supply Ability: 1KK poles monthly
Contact Now
Detailed Product Description

Completely compatible with plc S7 200 software,CPU and Extension Module,
It can perfectly replace each other,and plc step 7-MICRO/WIN programming software supported.

Type Number Available :

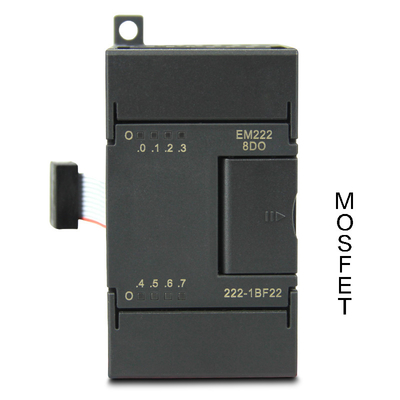

6ES7 222-1BF22-0XA0     Expension 8 DO 24 V DC

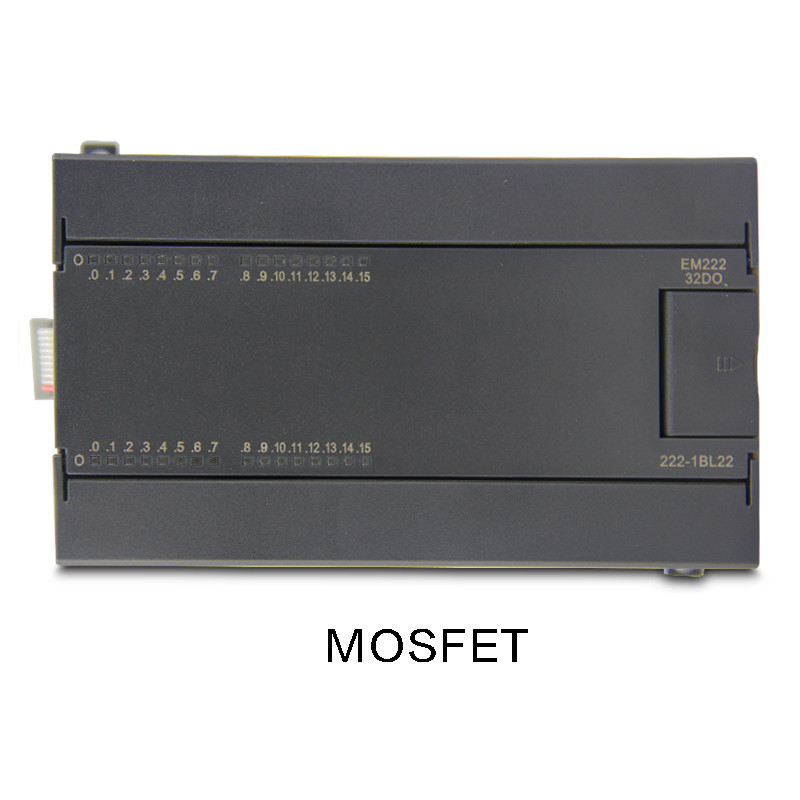

6ES7 222-1BL22-0XA0     Expension 32 DO 24 V DC;

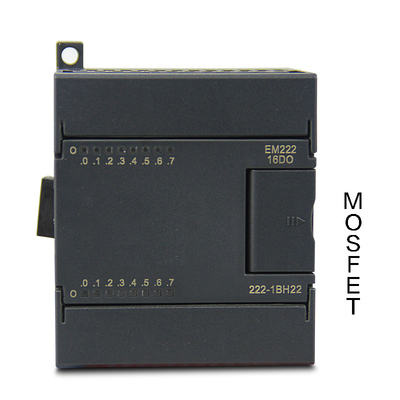

6ES7 222-1BH22-0XA0     Expension 16 DO 24V DC

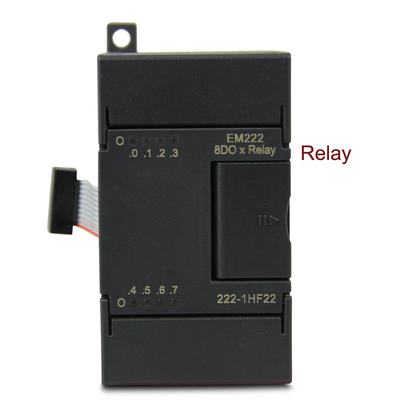

6ES7 222-1HF22-0XA0     Expension 8 DO relay

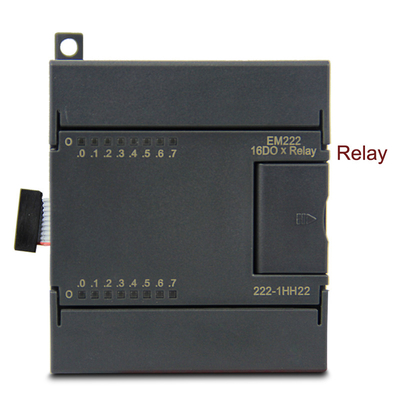

6ES7 222-1HH22-0XA0     Expension 16 DO RELAY

EM222 6ES7 222-1BL22-0XA0 222-1BH22-0XA0 Module Compatible with PLC S7 200 0

EM222 6ES7 222-1BL22-0XA0 222-1BH22-0XA0 Module Compatible with PLC S7 200 1

EM222 6ES7 222-1BL22-0XA0 222-1BH22-0XA0 Module Compatible with PLC S7 200 2

EM222 6ES7 222-1BL22-0XA0 222-1BH22-0XA0 Module Compatible with PLC S7 200 3

EM222 6ES7 222-1BL22-0XA0 222-1BH22-0XA0 Module Compatible with PLC S7 200 4

EM222 6ES7 222-1BL22-0XA0 222-1BH22-0XA0 Module Compatible with PLC S7 200 5

--

Model EM222  32 outputs
Product  Description 32DO,24V DC;Transistor;

Optical isolation with high immunity
The bus current consumption 140mA
Power loss 5.2W
Number of digital outputs 32
Signal output type· Transistor
Isolation Optical coupler
Rated voltage 24V DC
Permissible voltage range 20.4~28.8V DC
Rated current 0.75A
Lamp load 5W
Cable Length (Shielded) 500m
Cable Length (unshielded) 150m
Switching frequency /
Lifetime contact mechanical /
Lifetime contact mechanical(rated load voltage) /
Dimensions(W x H x D)(mm) 137.5×80×62
Order Number 222-1BL22-0XA0

--
