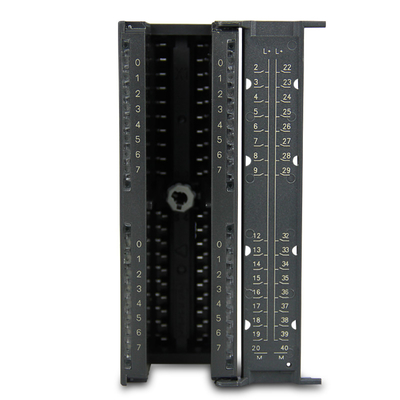

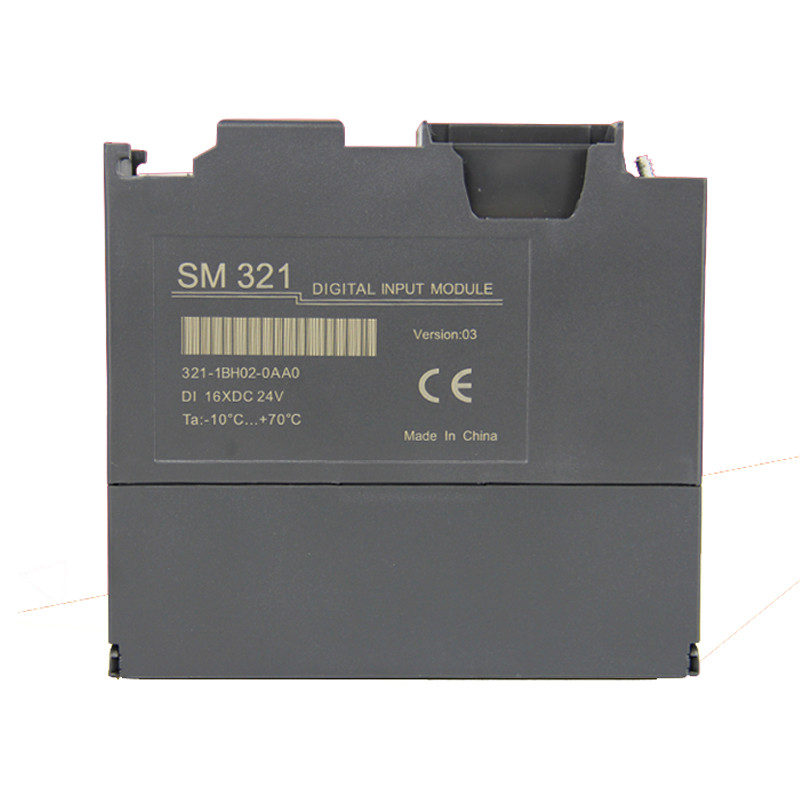

SM321 16 Points Digital inputs Module Compatible PLC S7-300 6ES7 321-1BH02-0AA0

SM321 16 Points Digital inputs Module Compatible PLC S7-300 6ES7 321-1BH02-0AA0

    • SM321 16 Points Digital inputs Module Compatible PLC S7-300 6ES7 321-1BH02-0AA0
    • SM321 16 Points Digital inputs Module Compatible PLC S7-300 6ES7 321-1BH02-0AA0
    • SM321 16 Points Digital inputs Module Compatible PLC S7-300 6ES7 321-1BH02-0AA0
    • SM321 16 Points Digital inputs Module Compatible PLC S7-300 6ES7 321-1BH02-0AA0
    • SM321 16 Points Digital inputs Module Compatible PLC S7-300 6ES7 321-1BH02-0AA0
  • SM321 16 Points Digital inputs Module Compatible PLC S7-300 6ES7 321-1BH02-0AA0

    Product Details:

    Place of Origin: Guang Dong
    Brand Name: Jetacon
    Certification: UL, CE
    Model Number: 6ES7 321-1BH02-0AA0

    Payment & Shipping Terms:

    Minimum Order Quantity: 10
    Price: Get latest price
    Packaging Details: Standard Export Carton
    Delivery Time: 7-20 working days
    Payment Terms: T/T, L/C, Paypal, Payoneer
    Supply Ability: 1KK poles monthly
    Contact Now
    Detailed Product Description

    Type Number Available :

    6ES7

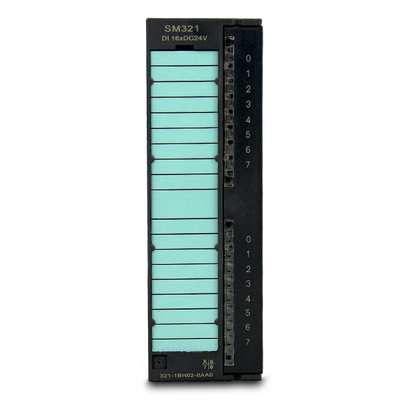

    321-1BH02-0AA0    Switch input module(16 points,24VDC)

    6ES7

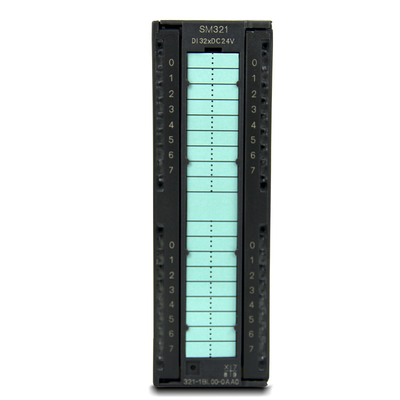

    321-1BL00-0AA0  Switch input module(32 points,24VDC)

    6ES7

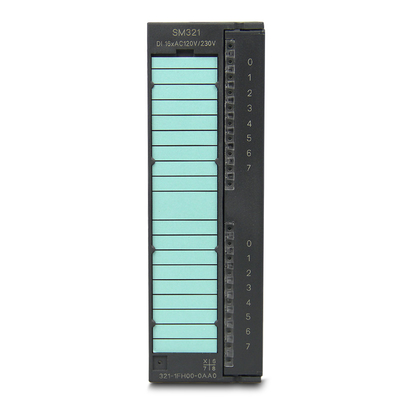

    321-1FH00-0AA0  Switch input module(16 points,120/230VAC)

    SM321 16 Points Digital inputs Module Compatible PLC S7-300 6ES7 321-1BH02-0AA0

    SM321 16 Points Digital inputs Module Compatible PLC S7-300 6ES7 321-1BH02-0AA0

    SM321 16 Points Digital inputs Module Compatible PLC S7-300 6ES7 321-1BH02-0AA0

    --

    Model

    SM321

    Number of digital inputs:16

    Product Description

    16DI,24V DC;

    High immunity;stable

    Power consumption

    ·From bus current consumption

    17mA

    ·Power loss

    3.5W

    Number of digital inputs

    16

    Cable Length (Shielded)

    1,000m

    Cable Length (unshielded)

    600m

    Input voltage

    ·Rate value

    24V DC

    ·For ”0” signal

    -30~5V DC

    ·For ”1” signal

    13~30V DC

    ·Frequency range

    /

    Input current

    7mA

    Input delay



    ·From “0” to “1”,Min

    1.2~4.8ms

    ·From “1” to “0”,Min

    1.2~4.8ms

    Front connector

    20-pin

    Input type

    NPN

    Connection of 2-wire BERO sensor

    Yes

    Permissible quiescent current

    1.5mA

    Isolation tested for contact



    ·Between channel and backplane bus

    Yes

    ·Per group between channels

    Yes

    The status indicates

    Green LED each channel

    Dimensions(WxHx D)(mm)

    40×125×120

    Order Number

     321-1BH02-0AA0

    --
