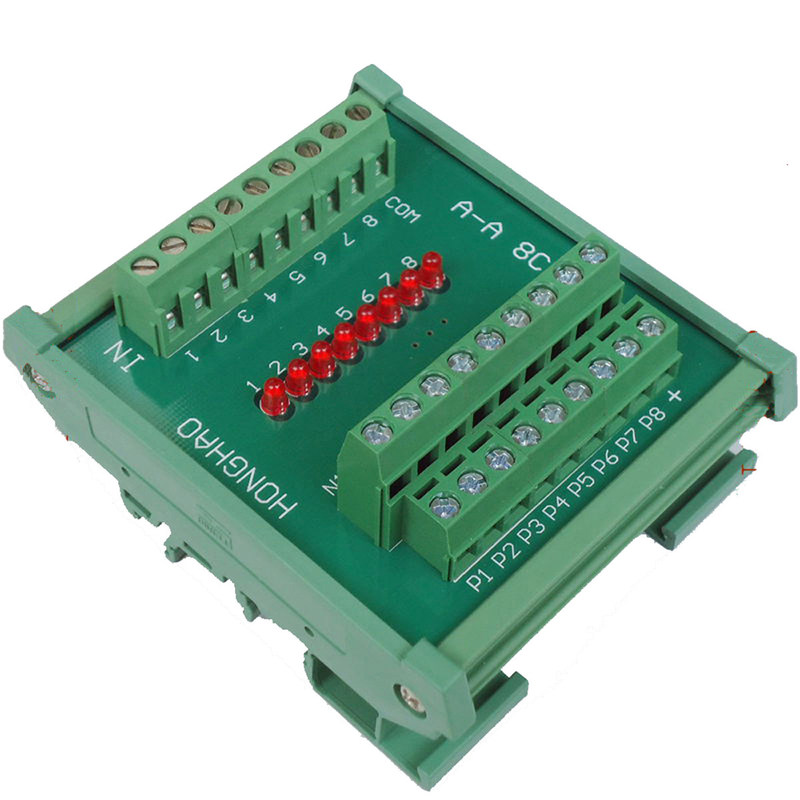

Name: Logic Level Polarity Interchange Converter of NPN and PNP PLC Signal 8 Ways 5V or 24V
Brand: Shenzhen Jetacon Technology Limited
SKU: A-A 8CH
Availability: InStock

Home Products Terminal Block Inteface Module

Logic Level Polarity Interchange Converter of NPN and PNP PLC Signal 8 Ways 5V or 24V

Product Details:

Place of Origin:	Guang Dong
Brand Name:	Jetacon
Certification:	UL, CE
Model Number:	A-A 8CH

Payment & Shipping Terms:

Minimum Order Quantity:	2 Pieces
Price:	Get latest price
Packaging Details:	Standard Export Carton
Delivery Time:	7-20 working days
Payment Terms:	T/T, L/C, Paypal, Payoneer
Supply Ability:	1KK poles monthly

Contact Now

Detailed Product Description

Power Supply:	DC 24V

NPN to PNP and PNP to NPN converters, two options are both designed into one module.

You may choose either NPN to PNP or PNP to NPN connection.

LED indicator for output ON

The converters can be used with all kinds of low voltage sensors

Working Power Supply Voltage : 24 VDC

Signal Voltage Ouput: 3.3v 12v, 5v or 24 VDC

Standard DIN rail mounting ( 35 mm)

Temperature range 10 to 55 C

high speed counting up to 10Khz

Product size : 80mm L x 80mm W around

Note: some times the item is from customized products, the actual productwill have some minor difference from the photo, thanks.

Contact Details

Shenzhen Jetacon Technology Limited

Contact Person: Mr. Lin

Tel: 86-13714094727 / 86-0755-61675749

Fax: 86-0755-89571454
