Name: SM322 Digital I/O Module Compatible PLC S7-300 6ES7 322-1HF01-0AA0 322-1BL00-0AA0
Brand: Shenzhen Jetacon Technology Limited
SKU: 6ES7 322-1HF01-0AA0
Availability: InStock

Home Products PLC S7-200 S7-300 Module

SM322 Digital I/O Module Compatible PLC S7-300 6ES7 322-1HF01-0AA0 322-1BL00-0AA0

Product Details:

Place of Origin:	Guang Dong
Brand Name:	Jetacon
Certification:	UL, CE
Model Number:	6ES7 322-1HF01-0AA0

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Get latest price
Packaging Details:	Standard Export Carton
Delivery Time:	7-20 working days
Payment Terms:	T/T, L/C, Paypal, Payoneer
Supply Ability:	1KK poles monthly

Contact Now

Detailed Product Description

Type Number Available :

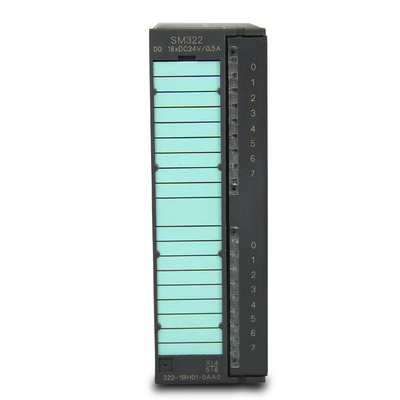

6ES7 322-1BH01-0AA0 Switch output module(16 points,24VDC)

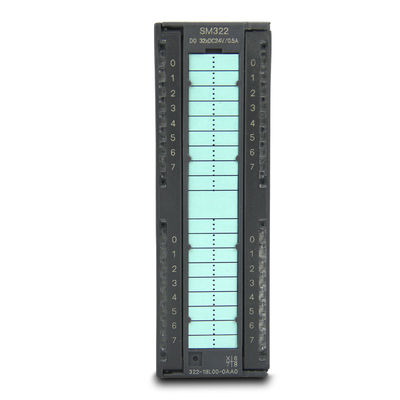

6ES7 322-1BL00-0AA0 Switch output module(32 points,24VDC)

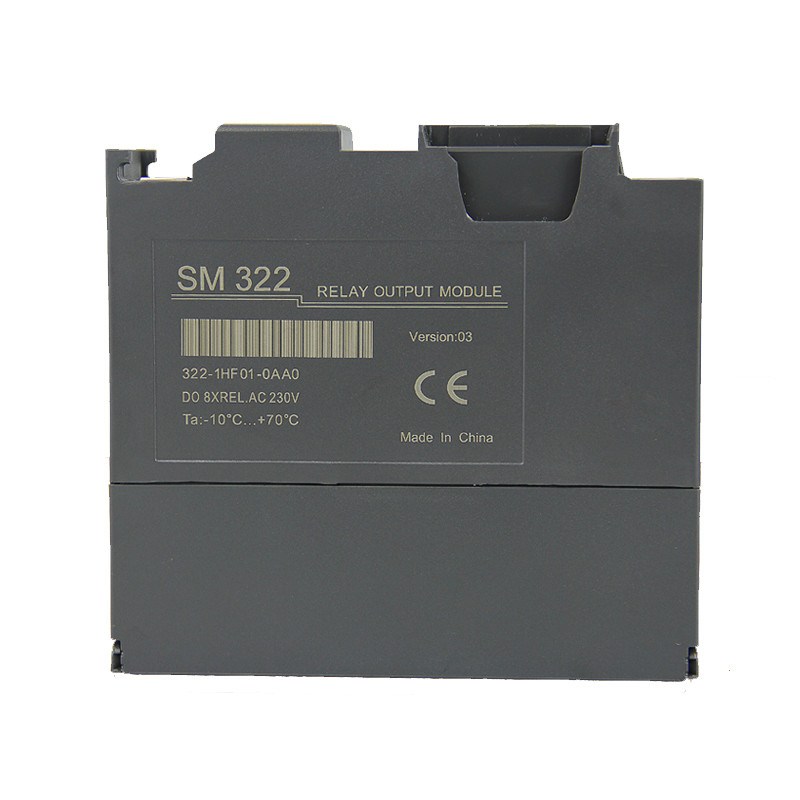

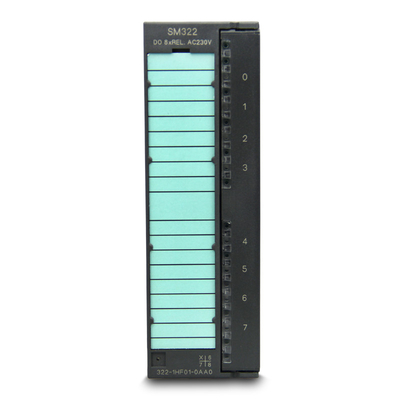

6ES7 322-1HF01-0AA0 Switch output module(8 points,relay,2A)

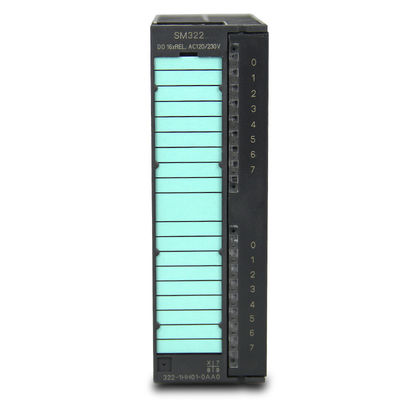

6ES7 322-1HH01-0AA0 Switch output module(16 points,relay,2A)

SM322 Digital I/O Module Compatible PLC S7-300 6ES7 322-1HF01-0AA0 322-1BL00-0AA0 0

SM322 Digital I/O Module Compatible PLC S7-300 6ES7 322-1HF01-0AA0 322-1BL00-0AA0 1

SM322 Digital I/O Module Compatible PLC S7-300 6ES7 322-1HF01-0AA0 322-1BL00-0AA0 2

SM322 Digital I/O Module Compatible PLC S7-300 6ES7 322-1HF01-0AA0 322-1BL00-0AA0 3

Model

SM322

Number of digital outputs:8

Product Description

8DO,24V DC;Transistor;

Optical isolation with high immunity

Power consumption

·From bus current consumption

50mA

·Power loss

6.8W

Number of digital outputs

Cable Length (Shielded)

1,000m

Cable Length (unshielded)

600m

Short-circuit protection

Yes,Electronic

Inductive cutoff voltage

L+(-48V)

Lamp load Max

10W

Output voltage:”1” signal

Min,L+(-0.8V)

Output current:”1” signal

Lifetime contact mechanical

Lifetime contact mechanical rated load voltage)

Sum of output currents(per group)

IIsolation tested for contact

·To backplane bus

Yes,Optocoupler

·To per group between channels

Yes


·Resistive loads,Max	100Hz
·Capacitive loads,Max	0.5Hz
·Lamp loads,Max	10Hz
·Mechanical load,Max	/
The status indicates	Green LED each channel
Front connector	20-pin
Dimensions(W x H x D)(mm)	40×125×120
Order Number	UN 322-1BF01-0AA0
