Product Details:
Place of Origin: China Mainland
Brand Name: JETACON
Certification: RoHS
Model Number: Sensorboard-4 6
Payment & Shipping Terms:
Minimum Order Quantity: 2 Pieces
Price: US $29.99
Packaging Details: Standard Export Carton
Delivery Time: 3-5 days
Payment Terms: T/T, L/C, Paypal, Payoneer
Supply Ability: 10 /Pieces per Day
Contact Now
Detailed Product Description
Color: Green Application: NPN And PNP Type
Arrays No.: 4 Or 6 Arrays

Features:

it is compatible with 2 wire sensor and 3 wire sensor.

Standard Din Rail Type ( 35mm)

4 or 6 groups of singals inputs are available

It accepts the sensors which are NPN and PNP type of Load, Force, Torque and Pressure Sensors


Voltage input : 24VDC

Rated Current for single wire: 0.5A

Rated Current for each arrays : 1A

Package Including : 1 x Sensor Singal Distribution Breakout Board

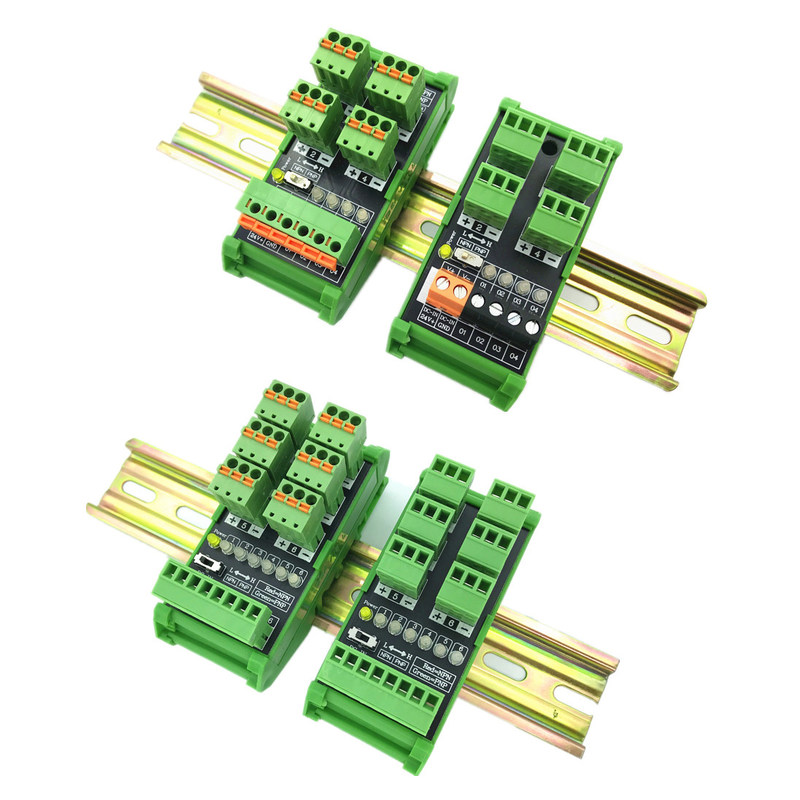

Sensors Wiring Distribution Hub Terminal Blocks Breakout Board 4 6 Arrays Din Rail Mount 0

Sensors Wiring Distribution Hub Terminal Blocks Breakout Board 4 6 Arrays Din Rail Mount 1
