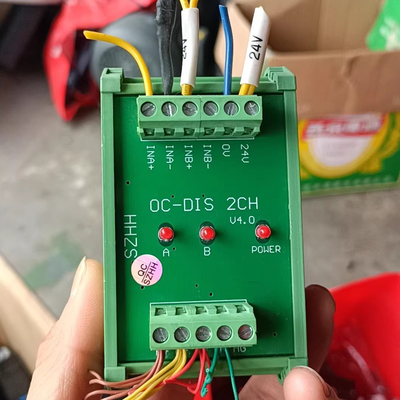

Converter of Open Collector HTL 24v into Differential TTL 5v Signal 2 Ways Universal

Converter of Open Collector HTL 24v into Differential TTL 5v Signal 2 Ways Universal

    • Converter of Open Collector HTL 24v into Differential TTL 5v Signal 2 Ways Universal
    • Converter of Open Collector HTL 24v into Differential TTL 5v Signal 2 Ways Universal
    • Converter of Open Collector HTL 24v into Differential TTL 5v Signal 2 Ways Universal
    • Converter of Open Collector HTL 24v into Differential TTL 5v Signal 2 Ways Universal
    • Converter of Open Collector HTL 24v into Differential TTL 5v Signal 2 Ways Universal
  • Converter of Open Collector HTL 24v into Differential TTL 5v Signal 2 Ways Universal

    Product Details:

    Place of Origin: Guang Dong
    Brand Name: Jetacon
    Certification: UL, CE
    Model Number: OC-DIS 2CH

    Payment & Shipping Terms:

    Minimum Order Quantity: 2 pieces
    Price: Get latest price
    Packaging Details: Standard Export Carton
    Delivery Time: 7-20 working days
    Payment Terms: T/T, L/C, Paypal, Payoneer
    Supply Ability: 1KK poles monthly
    Contact Now
    Detailed Product Description
    Power Supply: DC14-36V, 24V Typical Singal Input: HTL 5V-24V
    Signal Output: TTL 5V Below Application: Electronic Handwheel, PLC Controllers E.g

    The main converter purpose is to change OC (open collector) HTL signal ( 5V -  24V ) into TTL ( 5V ) impulse signal or differential signal

    Support A, B, and Z three-phase differential simultaneous conversion
    Industrial Temperature Range: - 45 ~ + 85 ℃

    Introduction:
    1. The main converter purpose is to change OC (open collector) HTL signal ( 5V - 24V ) into TTL ( 5V ) impulse signal or differential signal , 2 channels, electrical isolation between input and output, control the PLC Servo system
    2. Working frequency: 2000000Hz
    3. The Iutput mode: Accept All NPN or PNP PLC interface .
    4. Installation: DIN35mm rail mounting,convenient and quick.
    5. Product Size: 53mm x 87mm x 35mm
    6. Rated Working Power Voltage: DC24V ( DC14V- DC30V is also available in some condition)


    Package Included:
    1 * Differential to Collector
    Note: some times the item is from customized products, the actual product will have some minor difference from the photo, thanks.
    Converter of Open Collector HTL 24v into Differential TTL 5v Signal 2 Ways Universal
    Actual Singal Input output test result as below ( X1 input ==> A+ A- ouput )
    Converter of Open Collector HTL 24v into Differential TTL 5v Signal 2 Ways Universal
    Converter of Open Collector HTL 24v into Differential TTL 5v Signal 2 Ways Universal
    Converter of Open Collector HTL 24v into Differential TTL 5v Signal 2 Ways Universal
