    Product Details:

    Place of Origin: Guang Dong
    Brand Name: Jetacon
    Certification: UL, CE
    Model Number: DIS-OC-4CH

    Payment & Shipping Terms:

    Minimum Order Quantity: 5 pieces
    Price: Get latest price
    Packaging Details: Standard Export Carton
    Delivery Time: 7-20 working days
    Payment Terms: T/T, L/C, Paypal, Payoneer
    Supply Ability: 1KK poles monthly
    Contact Now
    Detailed Product Description
    Power Supply: DC 24V

    Introduction:

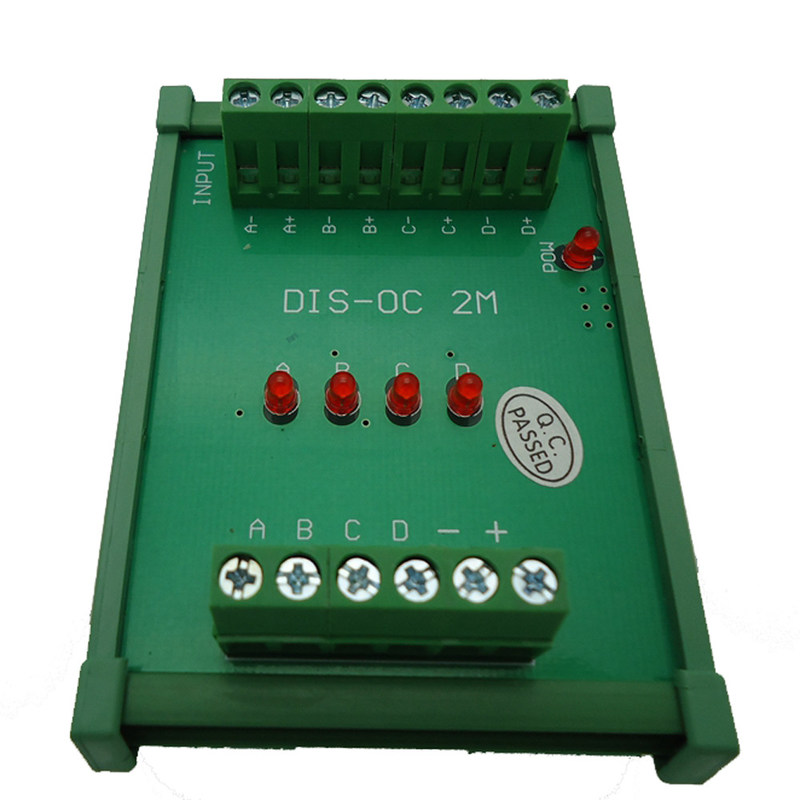

    1. Make the differential signal to the open collector signal output, 4 Channels, electrical isolation between input and output.
    2. Working frequency: 2000000Hz
    3. The collector output mode: using push-pull output mode,support NPN or PNP input's PLC interface .
    4. Installation: DIN35mm rail mounting,convenient and quick!
    5. Product Size: 135mm x 87mm x 35mm around
    6. Rated Working Power Voltage: DC24V ( DC14V- DC30V is also available in some condition)
    7. Singal Output Voltage: HTL

    Applications:
    1. servo driver output A B Z signal to the collector output signal, input to the PLC high-speed counter interface.
    2. the differential encoder output signal to the collector output signal, input to the PLC high-speed counter interface.
    3. for a plurality of servo motor speed synchronization control.


    Item Number             DIS-OC 4CH TTL to HTL Sigal Converter 4 Channles
    Application
                   PLC high speed counter signal conversion
                   Servo motor control signal conversion
                   Rotary encoder control signal conversion
                   Grating ruler output signal conversion
                   PLC and microcontroller pulse signal conversion
                   PLC, servo motor control system anti-jamming
                   Differential signal converted to other pulse signal
    Specification
    Signals Channels                  4
    Power Supply                      10V - 26V DC, 24V Typical
    PNP PLC Connection Compability    Yes
    NPN PLC Connection Compability    Yes
    Optically Isolation               Yes
    Signals Input                     A+/A-/B-/B+/C+/C-/D+/D- TTL/RS232 Signal 5V DC
    Signals Output                      A/B/C/D HTL Signal
    Frequency Range                   0 - 2000000Hz Maximum
    Current Comsumption               100 mA Maximum, Each Channel
    Input Impedance:                  Optically isolated, 5.8 kOhms at 24V typical
    Isolation Voltage                 2500V
    Led indicator                     Red light On
    Physical Features
    Product Dimension                 62mm Width x 87mm Length x 41mm Height
    Net Weight                        57g
    Operation Temperature             -25°C to 70°C
    Terminal Blocks                    5.08mm Pitch, Green, Screw Type
    Wire Gauge                       26 -16 AWG
    Mounting Options                 DIN Rail 35 or 32
    Operation Humidity               98% non-condensing
