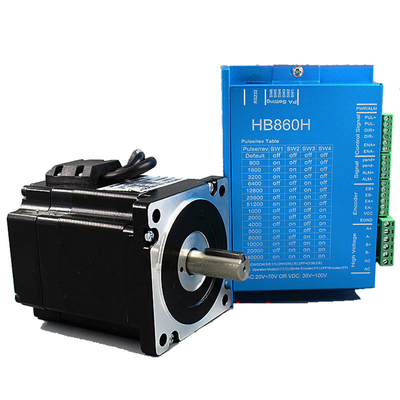

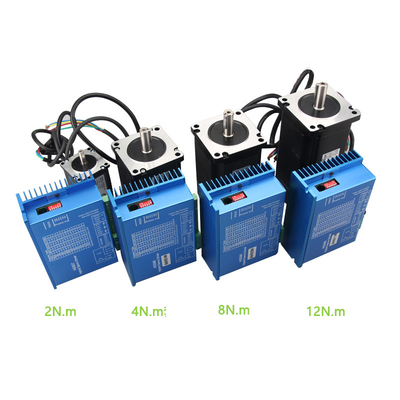

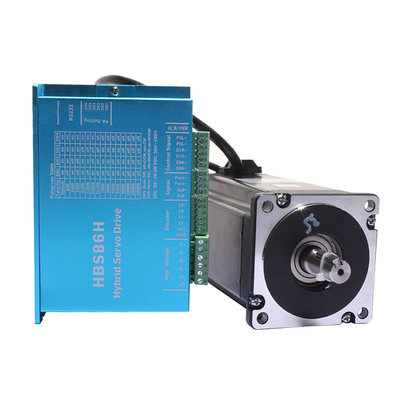

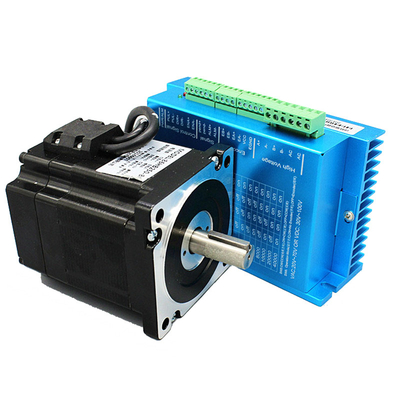

2N.m 4N.m 8N.m 12N.m Hybrid Closed Loop Stepper Servo Motor Driver Kit

2N.m 4N.m 8N.m 12N.m Hybrid Closed Loop Stepper Servo Motor Driver Kit

  • 2N.m 4N.m 8N.m 12N.m Hybrid Closed Loop Stepper Servo Motor Driver Kit
  • 2N.m 4N.m 8N.m 12N.m Hybrid Closed Loop Stepper Servo Motor Driver Kit
  • 2N.m 4N.m 8N.m 12N.m Hybrid Closed Loop Stepper Servo Motor Driver Kit
  • 2N.m 4N.m 8N.m 12N.m Hybrid Closed Loop Stepper Servo Motor Driver Kit
  • 2N.m 4N.m 8N.m 12N.m Hybrid Closed Loop Stepper Servo Motor Driver Kit
  • 2N.m 4N.m 8N.m 12N.m Hybrid Closed Loop Stepper Servo Motor Driver Kit
  • 2N.m 4N.m 8N.m 12N.m Hybrid Closed Loop Stepper Servo Motor Driver Kit
2N.m 4N.m 8N.m 12N.m Hybrid Closed Loop Stepper Servo Motor Driver Kit
Product Details:
Place of Origin: China Mainland
Brand Name: OEM
Certification: CE
Model Number: 86J1880EC-1000
Payment & Shipping Terms:
Minimum Order Quantity: 2 Pieces
Price: US $99.99
Packaging Details: Standard Export Carton
Delivery Time: 7-15 days
Payment Terms: T/T, L/C, Paypal, Payoneer
Supply Ability: 100 /Pieces per Day
Contact Now
Detailed Product Description

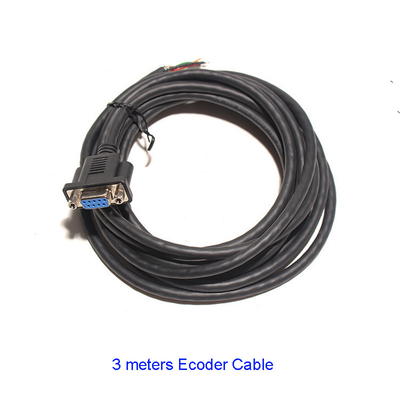

Cable Lenth: 3 Meters Holding Torque: 4 N.M
Voltage: DC 20-50V Step Angle: 1.8 Degree

Main application fields

Advertising industry, Engraving, packaging, lasers, electron industry, medical industry, Printing industry, woodworking, machinery industry, Ceramic Industry, stone industry and so on.
Brief introduction
2HSS two phase hybrid stepper servo drive system integrated servo control technology into the digital step driver. It adopts typical tricyclic control method which include current loop,speed loop and position loop.This product has the advantage of both step and servo system, is a highly cost-effective motion control products.
Characteristic
*Full closed loop control, motor encoder with 1000 line, close to 100% of the torque output
*Segment set range is 2-256, fast response, high speed, light isolation fault alarm output interface ALM
*Current loop bandwidth (-3 db) 2 KHZ (typical), speed loop bandwidth 500 hz (typical), the position loop bandwidth 200 hz (typical)
*RS232 serial port communication available to download or change parameters; Over-current, over-voltage, undervoltage, overheating, speeding, differential protection; Alarm clear input ENA

---

Specifications

-

Model Phase Step Angle Motor Current Holding Torque Flange Drive Current Drive Voltage
57HS10-EC-1000+HBS86 2ph 1.8° 4.2A 143oz-in 1.0Nm NEMA23 57mm 0-8A 20-50VDC
57HS20-EC-1000+HBS86 2ph 1.8° 5.8A 286oz-in 2.0Nm NEMA23 57mm 0-8A 20-50VDC
60HBM30-1000+HBS86 2ph 1.8° 3.0A 429oz-in 3.0Nm NEMA24 60mm 0-8A 20-50VDC
573HBM10-1000+HBS507 3ph 1.2° 5.8A 143oz-in 1Nm NEMA23 57mm 7A 18-48VDC
573HBM20-1000+HBS507 3ph 1.2° 5.8A 286oz-in 2Nm NEMA23 57mm 7A 18-48VDC
1103HBM200H-1000+HBS2206 3ph 1.2° 4.2A 2857oz-in 20Nm NEMA42 110mm 6A 220VAC
1103HBM120H-1000+HBS2206 3ph 1.2° 4.2A 1714oz-in 12Nm NEMA42 110mm 6A 20VAC
86HBM40-1000+HBS86H 3ph 1.8° 6A 571oz-in 4Nm NEMA34 86mm 0-8A 30-100VDC
86HBM80-01-1000+HBS86H 3ph 1.8° 6A 1143oz-in 8Nm NEMA34 86mm 0-8A 30-100VDC
86HBM80-01-1000+HBS86 3ph 1.8° 6A 1143oz-in 8Nm NEMA34 86mm 0-8A 20-50VDC
86HBM80H-1000+HBS1108 3ph 1.8° 5A 1143oz-in 8Nm NEMA34 86mm 0-8A 90-130VAC
86HS40-1000+HBS86H 3ph 1.8° 5.5A 571oz-in 4Nm NEMA34 86mm 0-8A 30-100VDC
86HS40-1000+HBS86 3ph 1.8° 5.5A 571oz-in 4Nm NEMA34 86mm 0-8A 20-50VDC
863HBM80H-1000+HBS2206 3ph 1.2° 3A 1143oz-in 8Nm NEMA34 86mm 6A 150-220VA

-
