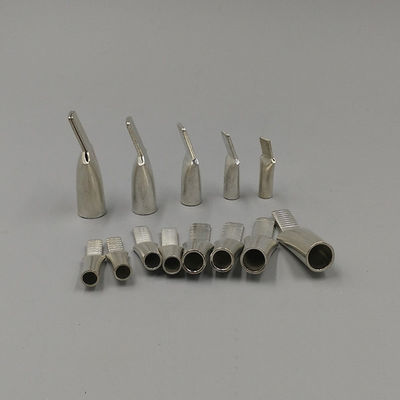

C45 Copper Terminal Lugs Pin-shaped Insert Needle Naked Connectors

C45 Copper Terminal Lugs Pin-shaped Insert Needle Naked Connectors

  • C45 Copper Terminal Lugs Pin-shaped Insert Needle Naked Connectors
  • C45 Copper Terminal Lugs Pin-shaped Insert Needle Naked Connectors
  • C45 Copper Terminal Lugs Pin-shaped Insert Needle Naked Connectors
C45 Copper Terminal Lugs Pin-shaped Insert Needle Naked Connectors
Product Details:
Place of Origin: Guang Dong
Brand Name: Jetacon
Certification: UL, CE
Model Number: C45
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T, L/C, Paypal, Payoneer
Supply Ability: 1KK poles monthly
Contact Now
Detailed Product Description
Type: Lug

Specifications:

Rohs: All kinds of our products are ROHS compliant.
C45 Copper Terminal Lugs Pin-shaped Insert Needle Naked Connectors 0

material:pure copper
Item NO dimension(mm)
Dφ dφ L L1 B
C-102 7.5 5 34 13.5 7
C-162 8.5 6 35 14 7
C-252 10 7 36 14.5 7
C-352 11 8 37 15 7
C-502 13 10 41 15.5 7
C-702 16 12 45 16 7
C-952 18 14 50 18 9
C-1202 20 15 57 20 9
C-1502 22 17 67 24 9
C-1852 24 19 77 28 9
C-2402 26 21 85 31 9

C45 Copper Terminal Lugs Pin-shaped Insert Needle Naked Connectors 1
