RJ48 RJ-48 to BNC Adapter Converter Cable for All of T1 E1 Cards TE110P TE410 TE405 TE420

RJ48 RJ-48 to BNC Adapter Converter Cable for All of T1 E1 Cards TE110P TE410 TE405 TE420

  • RJ48 RJ-48 to BNC Adapter Converter Cable for All of T1 E1 Cards TE110P TE410 TE405 TE420
  • RJ48 RJ-48 to BNC Adapter Converter Cable for All of T1 E1 Cards TE110P TE410 TE405 TE420
  • RJ48 RJ-48 to BNC Adapter Converter Cable for All of T1 E1 Cards TE110P TE410 TE405 TE420
  • RJ48 RJ-48 to BNC Adapter Converter Cable for All of T1 E1 Cards TE110P TE410 TE405 TE420
  • RJ48 RJ-48 to BNC Adapter Converter Cable for All of T1 E1 Cards TE110P TE410 TE405 TE420
RJ48 RJ-48 to BNC Adapter Converter Cable for All of T1 E1 Cards TE110P TE410 TE405 TE420
Product Details:
Place of Origin: Guang Dong
Brand Name: Jetacon
Certification: UL, CE
Model Number: RJ48-BNC
Payment & Shipping Terms:
Minimum Order Quantity: 50 pieces
Price: US $6.99 / piece

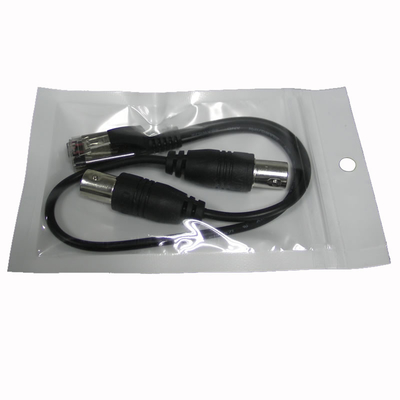

Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T, L/C, Paypal, Payoneer
Supply Ability: 1KK poles monthly
Contact Now
Detailed Product Description

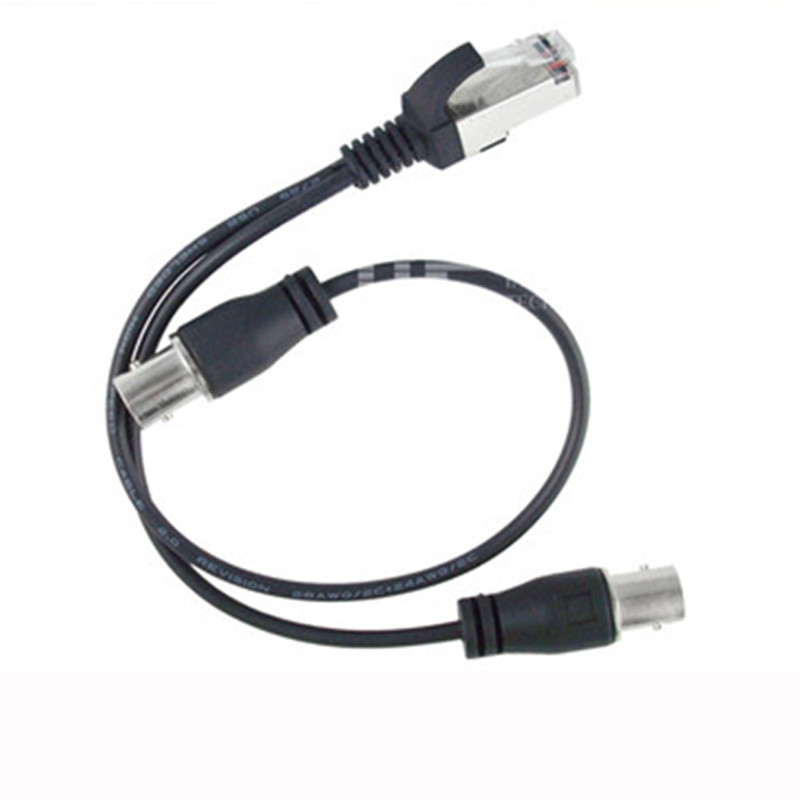

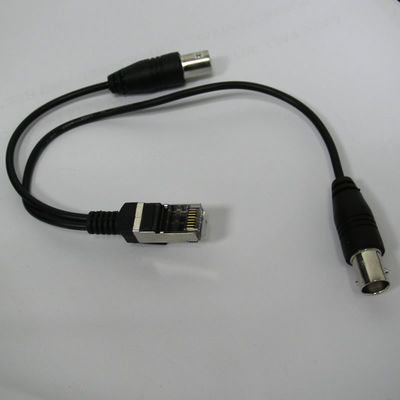

Connnector A: BNC Connector B: RJ-48C

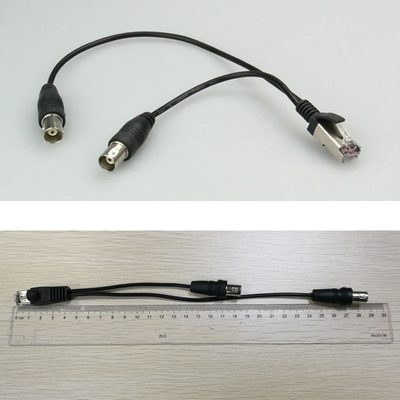

Cable Length: 29cm

Features:

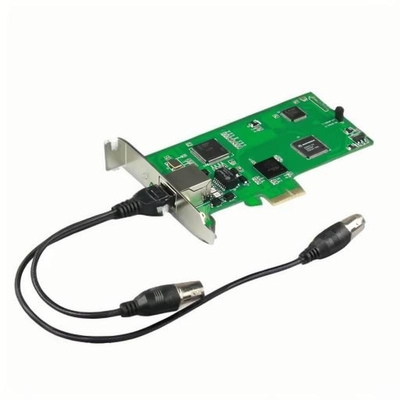

It is suitable for all ISDN PRI T1 / E1 cards, such as TE110P,TE122P,TE120E,TE220,TE420
You need this cable when you test ISDN PRI E1 / T1 or other voice processing cards
Cable length: 29cm

PIN Definition

PIN RJ48description DTE RJ48
RX+ Data receiving + 1
RX- Data receiving - 2
TX+ Data sending + 4
TX- Data sending - 5

RJ48 RJ-48 to BNC Adapter Converter Cable for All of T1 E1 Cards TE110P TE410 TE405 TE420 0

RJ48 RJ-48 to BNC Adapter Converter Cable for All of T1 E1 Cards TE110P TE410 TE405 TE420 1
