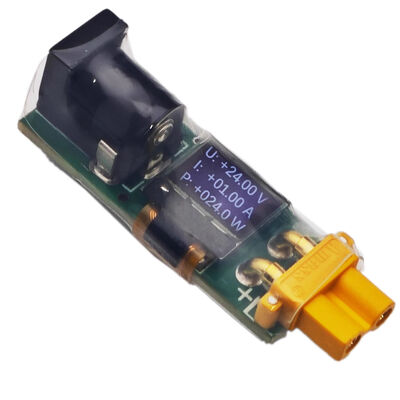

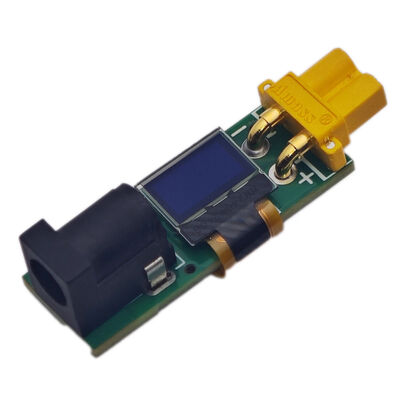

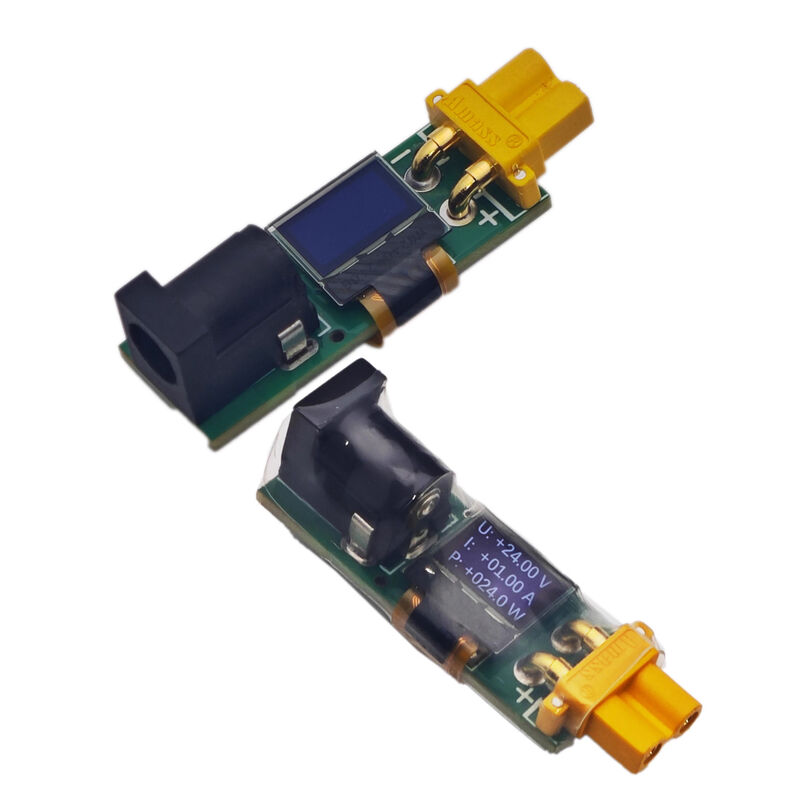

5-30V 10A DC to XT30 Female Adapter with Bidirectional Power Meter Battery Voltage Current Led Display for RC Model

5-30V 10A DC to XT30 Female Adapter with Bidirectional Power Meter Battery Voltage Current Led Display for RC Model

  • 5-30V 10A DC to XT30 Female Adapter with Bidirectional Power Meter Battery Voltage Current Led Display for RC Model
  • 5-30V 10A DC to XT30 Female Adapter with Bidirectional Power Meter Battery Voltage Current Led Display for RC Model
  • 5-30V 10A DC to XT30 Female Adapter with Bidirectional Power Meter Battery Voltage Current Led Display for RC Model
  • 5-30V 10A DC to XT30 Female Adapter with Bidirectional Power Meter Battery Voltage Current Led Display for RC Model
  • 5-30V 10A DC to XT30 Female Adapter with Bidirectional Power Meter Battery Voltage Current Led Display for RC Model
5-30V 10A DC to XT30 Female Adapter with Bidirectional Power Meter Battery Voltage Current Led Display for RC Model
Product Details:
Place of Origin: China Mainland
Brand Name: Jetacon
Certification: CQC
Model Number: XT60-FM-Power Meter
Payment & Shipping Terms:
Minimum Order Quantity: 10 pieces
Price: US $12.99 / Piece
Packaging Details: Standard Export Carton
Delivery Time: 7-15 days
Payment Terms: T/T, L/C, Paypal, Payoneer
Supply Ability: 100pcs / per day
Contact Now
Detailed Product Description
Color: Yellow Weight: 14g

- Interface: DC female to XT30 female plug

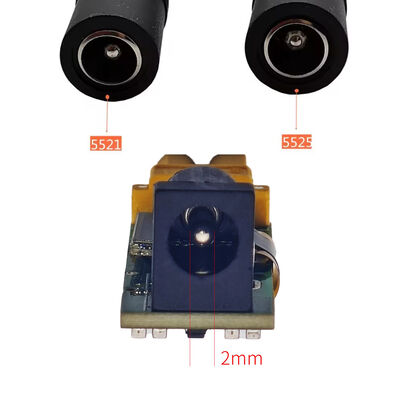

- Inner diameter of DC port: 2.1mm / 2.5mm optional (The compatibility of the 2mm inner diameter is relatively strong.)

- Battery support range: 2-6S Lipo Battery

- Voltage detection range: 5V - 30V

- Current detection range: ± 10 Amps

- Detection accuracy: 0.1V/0.1A

- Dimensions (length × width × height): 44x14.5x14.5mm

- Weight: about 5.6g

- Screen: 0.42-inch OLED screen with a resolution of 72x40

- It is defaultly covered with a transparent hard PVC shell for protection and there is no need to remove it.

5-30V 10A DC to XT30 Female Adapter with Bidirectional Power Meter Battery Voltage Current Led Display for RC Model 0

5-30V 10A DC to XT30 Female Adapter with Bidirectional Power Meter Battery Voltage Current Led Display for RC Model 1



Contact Details
Shenzhen Jetacon Technology Limited

Contact Person: Mr. Lin

Tel: 86-13714094727 / 86-0755-61675749

Fax: 86-0755-89571454
