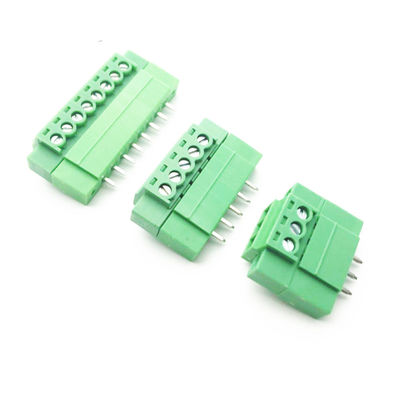

Name: 3.81mm Pitch PCB Screw Terminal Blocks Plug + Straight Angle Pin Header with Flange
Brand: Shenzhen Jetacon Technology Limited
SKU: EC201M-02-3.81 / EC501VM-3.81
Availability: InStock

Home Products Pluggable Terminal Blocks

3.81mm Pitch PCB Screw Terminal Blocks Plug + Straight Angle Pin Header with Flange

Product Details:

Place of Origin:	Guang Dong
Brand Name:	Jetacon
Certification:	UL, CE
Model Number:	EC201M-02-3.81 / EC501VM-3.81

Payment & Shipping Terms:

Minimum Order Quantity:	500
Price:	Get latest price
Packaging Details:	Standard Export Carton
Delivery Time:	7-20 working days
Payment Terms:	T/T, L/C, Paypal, Payoneer
Supply Ability:	1KK poles monthly

Contact Now

Detailed Product Description

Rated Voltage:	300V	Rated Current:	10A
Type:	Electrical Plug	Grounding:	Non-Grounding
Application:	Industrial

Specifications:

Condition: Brand New

Certification: CE, Rohs

Pitch:3.81mm

Poles: 2 Pins to 20 pins

Color:Green

Torque: 0.2Nm

Strip length: 5-6mm

Rated voltage: 300V

Rated current: 10A

Insulation resistance: 5000MΩ/1000V

Contact resistance: 20mΩ

Withstanding voltage: 2000V/1min

Wire range: 28~16AWG

Note:

The terminal blocks are in stock from 2 poles to 20 poles
