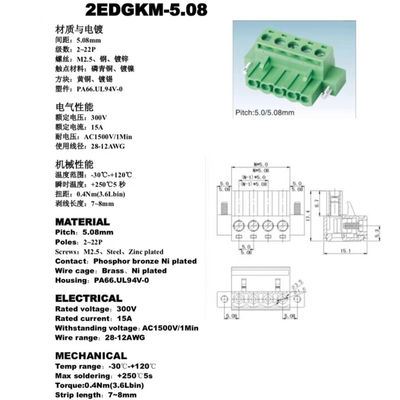

5.08mm Pitch PCB Plug-in Screw Terminal Blocks Plug Right Angle Pin Header with Flange

5.08mm Pitch PCB Plug-in Screw Terminal Blocks Plug Right Angle Pin Header with Flange

  • 5.08mm Pitch PCB Plug-in Screw Terminal Blocks Plug Right Angle Pin Header with Flange
  • 5.08mm Pitch PCB Plug-in Screw Terminal Blocks Plug Right Angle Pin Header with Flange
  • 5.08mm Pitch PCB Plug-in Screw Terminal Blocks Plug Right Angle Pin Header with Flange
  • 5.08mm Pitch PCB Plug-in Screw Terminal Blocks Plug Right Angle Pin Header with Flange
  • 5.08mm Pitch PCB Plug-in Screw Terminal Blocks Plug Right Angle Pin Header with Flange
  • 5.08mm Pitch PCB Plug-in Screw Terminal Blocks Plug Right Angle Pin Header with Flange
  • 5.08mm Pitch PCB Plug-in Screw Terminal Blocks Plug Right Angle Pin Header with Flange
  • 5.08mm Pitch PCB Plug-in Screw Terminal Blocks Plug Right Angle Pin Header with Flange
  • 5.08mm Pitch PCB Plug-in Screw Terminal Blocks Plug Right Angle Pin Header with Flange
  • 5.08mm Pitch PCB Plug-in Screw Terminal Blocks Plug Right Angle Pin Header with Flange
  • 5.08mm Pitch PCB Plug-in Screw Terminal Blocks Plug Right Angle Pin Header with Flange
  • 5.08mm Pitch PCB Plug-in Screw Terminal Blocks Plug Right Angle Pin Header with Flange
  • 5.08mm Pitch PCB Plug-in Screw Terminal Blocks Plug Right Angle Pin Header with Flange
5.08mm Pitch PCB Plug-in Screw Terminal Blocks Plug Right Angle Pin Header with Flange
Product Details:
Place of Origin: Guang Dong
Brand Name: Jetacon
Certification: UL, CE
Model Number: 2EDGRM-5.08 / 2EDGKM-5.08
Payment & Shipping Terms:
Minimum Order Quantity: 100 pieces
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T, L/C, Paypal, Payoneer
Supply Ability: 1KK poles monthly
Contact Now
Detailed Product Description
Rated Voltage: 300V Rated Current: 10A
Type: Plug With Socket Grounding: Non-Grounding
Application: Industrial

Specifications:

Condition: Brand New
Certification: CE, Rohs
Pitch: 5.08mm
Poles: 2 Pins to 20 pins
Color:Green
Torque: 0.2Nm
Strip length: 5-6mm
Rated voltage: 300V
Rated current: 10A
Insulation resistance: 5000MΩ/1000V
Contact resistance: 20mΩ
Withstanding voltage: 2000V/1min
Wire range: 28~16AWG

Note:

The terminal blocks are in stock  from 2 poles to 20 poles
