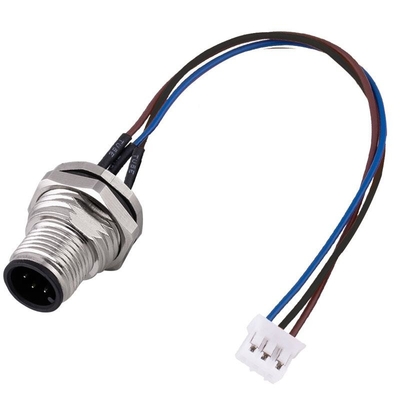

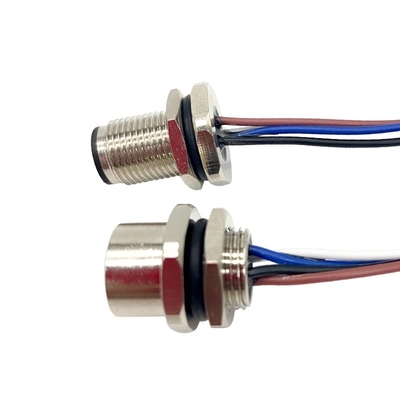

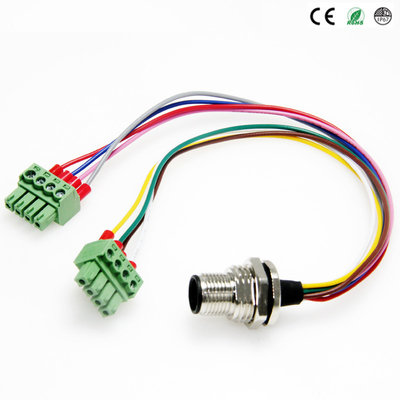

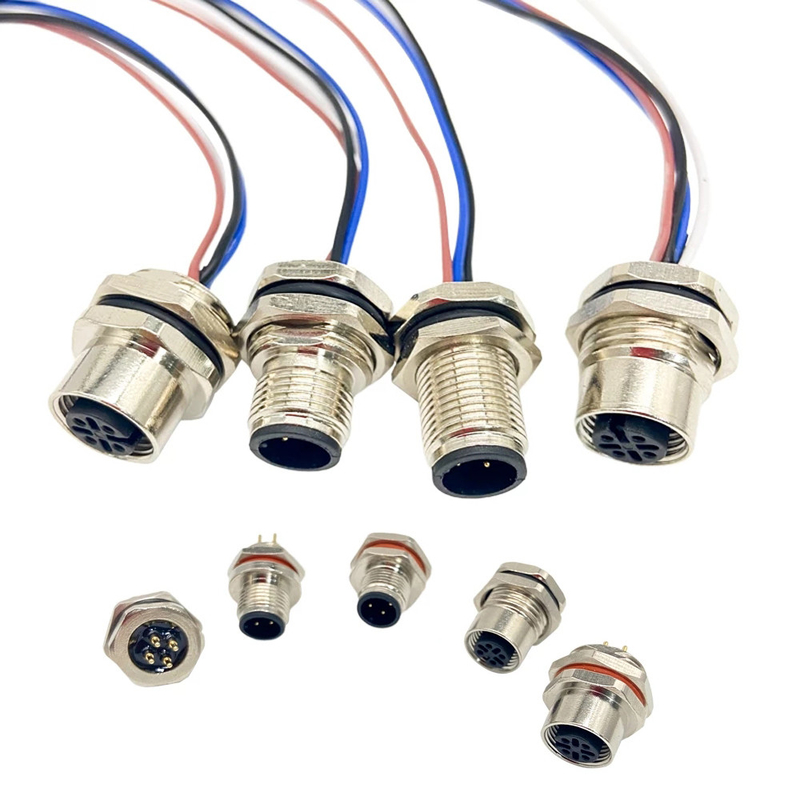

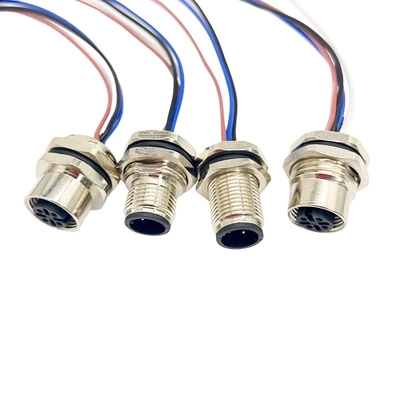

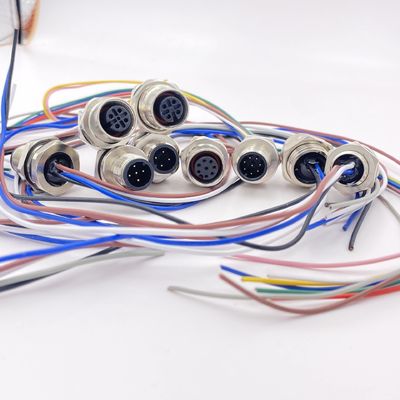

M12 Plugs and Sockets Panel Mounted Wire Terminals Connector 20cm 4P 5P 8P

M12 Plugs and Sockets Panel Mounted Wire Terminals Connector 20cm 4P 5P 8P

  • M12 Plugs and Sockets Panel Mounted Wire Terminals Connector 20cm 4P 5P 8P
  • M12 Plugs and Sockets Panel Mounted Wire Terminals Connector 20cm 4P 5P 8P
  • M12 Plugs and Sockets Panel Mounted Wire Terminals Connector 20cm 4P 5P 8P
  • M12 Plugs and Sockets Panel Mounted Wire Terminals Connector 20cm 4P 5P 8P
  • M12 Plugs and Sockets Panel Mounted Wire Terminals Connector 20cm 4P 5P 8P
  • M12 Plugs and Sockets Panel Mounted Wire Terminals Connector 20cm 4P 5P 8P
  • M12 Plugs and Sockets Panel Mounted Wire Terminals Connector 20cm 4P 5P 8P
  • M12 Plugs and Sockets Panel Mounted Wire Terminals Connector 20cm 4P 5P 8P
  • M12 Plugs and Sockets Panel Mounted Wire Terminals Connector 20cm 4P 5P 8P
M12 Plugs and Sockets Panel Mounted Wire Terminals Connector 20cm 4P 5P 8P
Product Details:
Place of Origin: China Mainland
Brand Name: Jetacon
Certification: CE
Model Number: M12 Wired Connectors
Payment & Shipping Terms:
Minimum Order Quantity: 20 pieces
Price: US $3.99 / Piece
Packaging Details: Standard Export Carton
Delivery Time: 3-5 days
Payment Terms: T/T, L/C, Paypal, Payoneer
Supply Ability: 1000 /Pieces per Day
Contact Now
Detailed Product Description
Material: Stainless Steel Waterproof: IP65

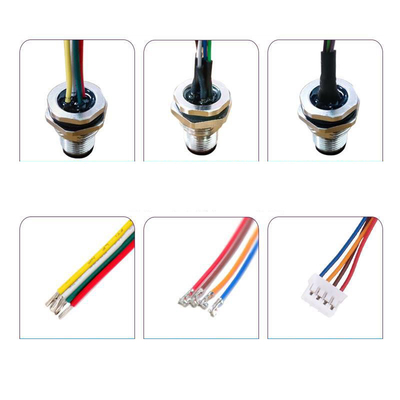

Cable Length: 20cm Or Other Length

Specification:

Number of connectors: 4 / 5 / 8 Pin

Wire gauge in m㎡: Maximum 0.75m㎡

Protection level: IP67

Temination: Screw

Cable range: Φ4--Φ7mm / Φ7--Φ9mm

Temperature rating: -25°C~85°C

Material group: 30 / 60 / 250v

Pin contact: CuZn

Contact Plating: Au

Male insert: PA

Contact resistance: Less than 3.0mΩ

Mechanical operat: More than 100 times

Overvoltage categorie: 2

Housing cante connect: PA

Rated current(40°): 2A / 4A

Rated imoulse voltage: 800/ 1500/ 2500V

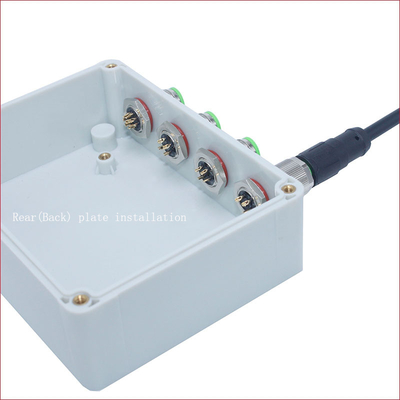

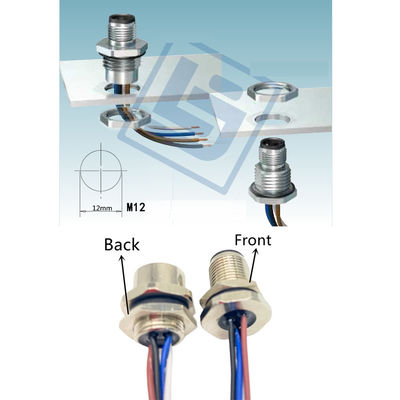

Screw Installation Options: Front Plate installation or Rear plate installation

M12 Plugs and Sockets Panel Mounted Wire Terminals Connector 20cm 4P 5P 8P 0

M12 Plugs and Sockets Panel Mounted Wire Terminals Connector 20cm 4P 5P 8P 1

M12 Plugs and Sockets Panel Mounted Wire Terminals Connector 20cm 4P 5P 8P 2



M12 Plugs and Sockets Panel Mounted Wire Terminals Connector 20cm 4P 5P 8P 3
