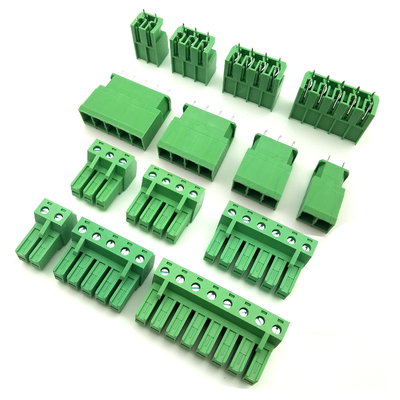

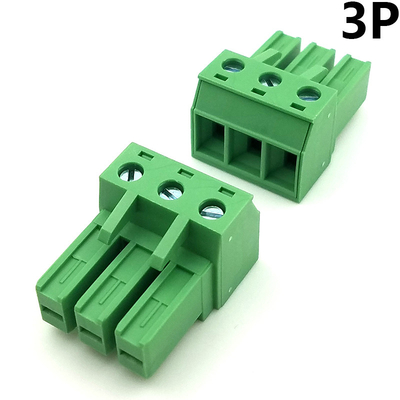

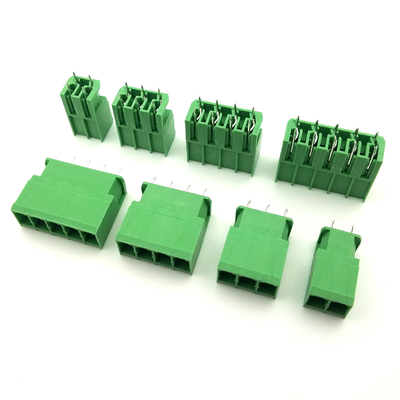

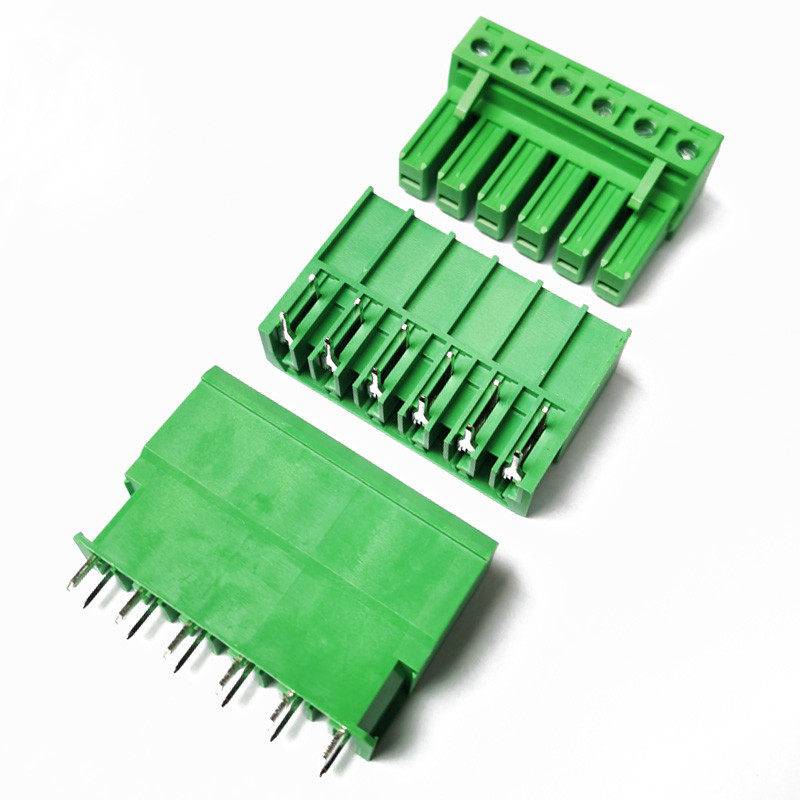

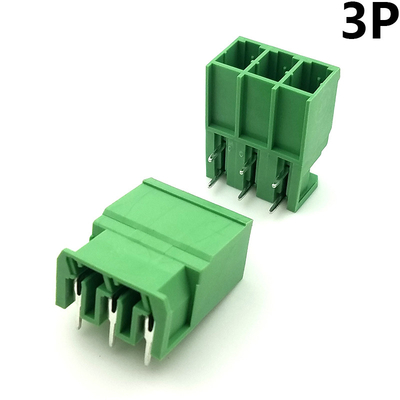

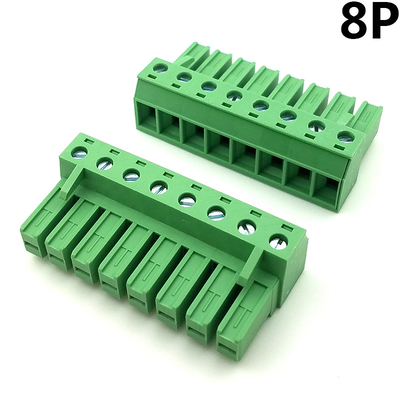

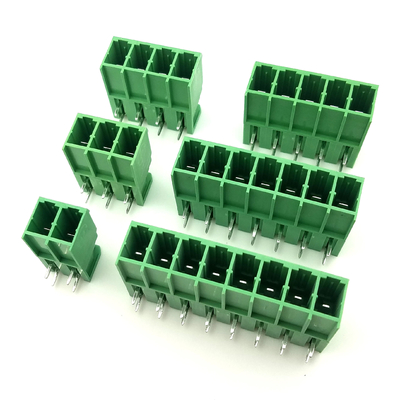

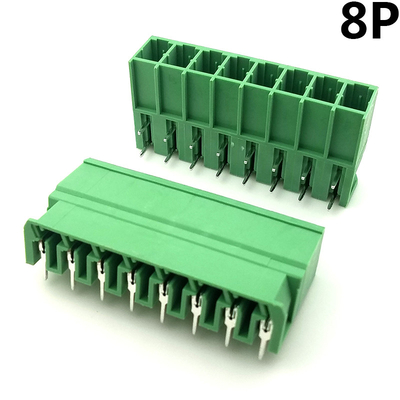

7.62mm Spacing 30Amp Pluggable Plug-in Screw Terminal Blocks Plug + Header

7.62mm Spacing 30Amp Pluggable Plug-in Screw Terminal Blocks Plug + Header

  • 7.62mm Spacing 30Amp Pluggable Plug-in Screw Terminal Blocks Plug + Header
  • 7.62mm Spacing 30Amp Pluggable Plug-in Screw Terminal Blocks Plug + Header
  • 7.62mm Spacing 30Amp Pluggable Plug-in Screw Terminal Blocks Plug + Header
  • 7.62mm Spacing 30Amp Pluggable Plug-in Screw Terminal Blocks Plug + Header
  • 7.62mm Spacing 30Amp Pluggable Plug-in Screw Terminal Blocks Plug + Header
  • 7.62mm Spacing 30Amp Pluggable Plug-in Screw Terminal Blocks Plug + Header
  • 7.62mm Spacing 30Amp Pluggable Plug-in Screw Terminal Blocks Plug + Header
  • 7.62mm Spacing 30Amp Pluggable Plug-in Screw Terminal Blocks Plug + Header
  • 7.62mm Spacing 30Amp Pluggable Plug-in Screw Terminal Blocks Plug + Header
7.62mm Spacing 30Amp Pluggable Plug-in Screw Terminal Blocks Plug + Header
Product Details:
Place of Origin: Guang Dong
Brand Name: Jetacon
Certification: UL, CE
Model Number: 2EDGSKT-7.62mm
Payment & Shipping Terms:
Minimum Order Quantity: 50 pieces
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T, L/C, Paypal, Payoneer
Supply Ability: 1KK poles monthly
Contact Now
Detailed Product Description
Number Of Contacts: 11 - 20 Conductor Size: 10 - 28 AWG
Type: Screw

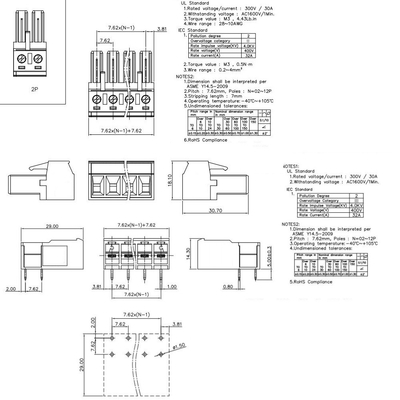

Specifications:

Condition: Brand New
Certification: CE, Rohs
Pitch: 7.62mm
Poles: 2 Pins to 12 pins
Color:Green
Torque: 0.2Nm
Strip length: 5-6mm
Rated voltage: 300V
Rated current:30A
Insulation resistance: 5000MΩ/1000V
Contact resistance: 20mΩ
Withstanding voltage: 2000V/1min
Wire range: 28~10AWG


Note: The terminal blocks are in stock  from 2 poles to 20 poles
7.62mm Spacing 30Amp Pluggable Plug-in Screw Terminal Blocks Plug + Header 0
