Small Stainless Steel Mini Micro Button Load Cell Miniature Compression Tension Thin Film Sensor 5N 10N 100N 200N

Small Stainless Steel Mini Micro Button Load Cell Miniature Compression Tension Thin Film Sensor 5N 10N 100N 200N

    • Small Stainless Steel Mini Micro Button Load Cell Miniature Compression Tension Thin Film Sensor 5N 10N 100N 200N
    • Small Stainless Steel Mini Micro Button Load Cell Miniature Compression Tension Thin Film Sensor 5N 10N 100N 200N
    • Small Stainless Steel Mini Micro Button Load Cell Miniature Compression Tension Thin Film Sensor 5N 10N 100N 200N
    • Small Stainless Steel Mini Micro Button Load Cell Miniature Compression Tension Thin Film Sensor 5N 10N 100N 200N
    • Small Stainless Steel Mini Micro Button Load Cell Miniature Compression Tension Thin Film Sensor 5N 10N 100N 200N
    • Small Stainless Steel Mini Micro Button Load Cell Miniature Compression Tension Thin Film Sensor 5N 10N 100N 200N
    • Small Stainless Steel Mini Micro Button Load Cell Miniature Compression Tension Thin Film Sensor 5N 10N 100N 200N
    • Small Stainless Steel Mini Micro Button Load Cell Miniature Compression Tension Thin Film Sensor 5N 10N 100N 200N
    • Small Stainless Steel Mini Micro Button Load Cell Miniature Compression Tension Thin Film Sensor 5N 10N 100N 200N
    • Small Stainless Steel Mini Micro Button Load Cell Miniature Compression Tension Thin Film Sensor 5N 10N 100N 200N
    • Small Stainless Steel Mini Micro Button Load Cell Miniature Compression Tension Thin Film Sensor 5N 10N 100N 200N
    • Small Stainless Steel Mini Micro Button Load Cell Miniature Compression Tension Thin Film Sensor 5N 10N 100N 200N
  • Small Stainless Steel Mini Micro Button Load Cell Miniature Compression Tension Thin Film Sensor 5N 10N 100N 200N

    Product Details:

    Place of Origin: China Mainland
    Brand Name: OEM
    Certification: CE
    Model Number: Mini-Load Cell

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Pieces
    Price: US $99.99
    Packaging Details: Standard Export Carton
    Delivery Time: 7-15 days
    Payment Terms: T/T, L/C, Paypal, Payoneer
    Supply Ability: 100 /Pieces per Day
    Contact Now
    Detailed Product Description
    Material: Stainless Steel Waterproof: IP65
    Application: Force Sensor Zero Output: ± 0.2 MV / V
    Capacity: 5N 10N 20N 50N 100N 200N 300N 500N 1000N 2000N

    Features & Applications:

    Tension and compression load cell with metal foil strain gauge technology and over load protection, made of stainless steel

    Mainly used for pull and push dynamometer, hopper scale and industrial measuring systems.
    Capacity : 5N, 10N, 20N, 50N, 100N, 200N, 300N,500N, 1000N, 2000N

    Parameters:

    Capacity 0-5N~2000N Material Stainless Steel
    Rated output 1.5 ±10% mV/V Output Impedance 350±3Ω
    Non-linearity 0.05 % F.S. Insulation >5000MΩ/10VDC
    Hysteresis 0.05 % F.S. Recommended Excitation 2.5-5V
    Repeatability 0.05 % F.S. Excitation max 10V
    Creep(30min) 0.05 % F.S. Compensated Temp Range -10~60
    Temp Effect On Output 0.1 % F.S./ 10 Operating Temp Range -20~80
    Temp Effect On Zero 0.1 % F.S./ 10 Safe Load 1.2
    Protection Class IP 65 Ultimate Load Limit 1.5
    Input Impedance 350±15Ω Cable Length 2-3 x 3m
    Wire Connection

    Ex +: Red; Ex -Black; Sig +: Green; Sig -: White

    (Pressure is positive, pulling is negative);





    Photos:

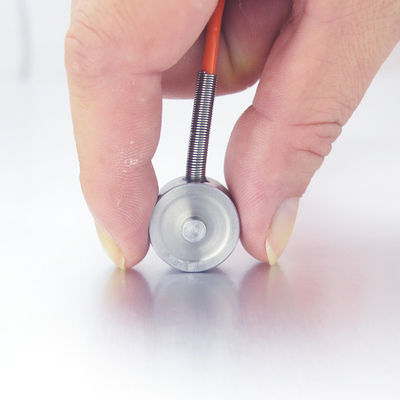

    Small Stainless Steel Mini Micro Button Load Cell Miniature Compression Tension Thin Film Sensor 5N 10N 100N 200N
