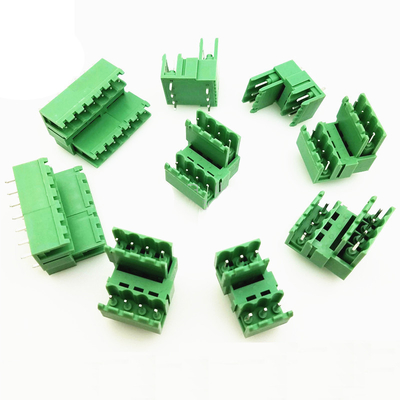

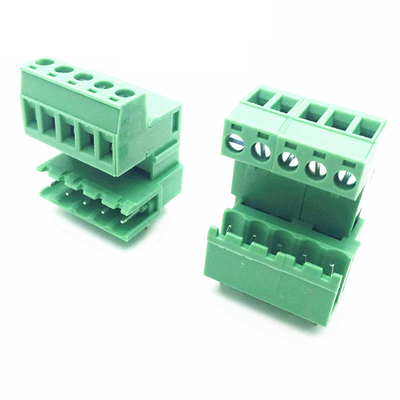

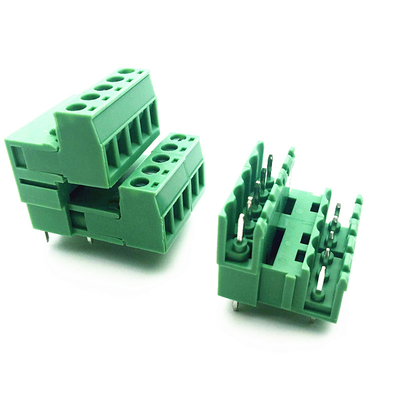

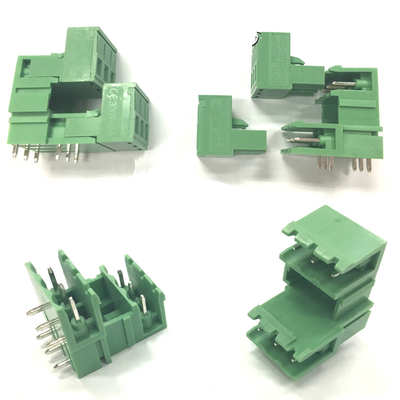

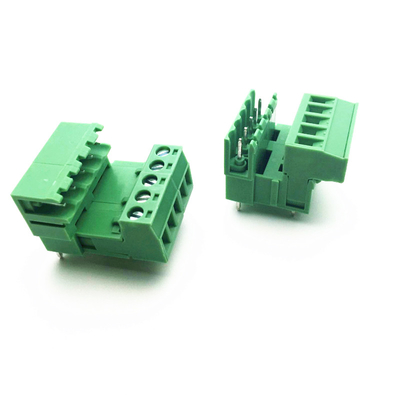

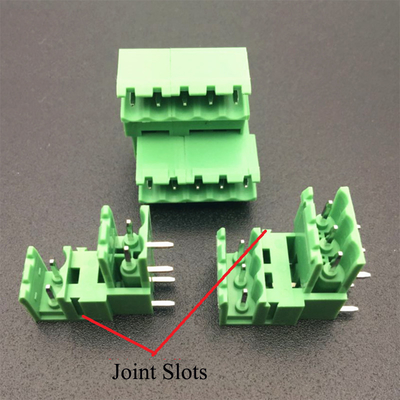

5.08mm Pitch Dual Row Jointable PCB Pluggable Screw Terminal Blocks Plug Pin Header

5.08mm Pitch Dual Row Jointable PCB Pluggable Screw Terminal Blocks Plug Pin Header

  • 5.08mm Pitch Dual Row Jointable PCB Pluggable Screw Terminal Blocks Plug Pin Header
  • 5.08mm Pitch Dual Row Jointable PCB Pluggable Screw Terminal Blocks Plug Pin Header
  • 5.08mm Pitch Dual Row Jointable PCB Pluggable Screw Terminal Blocks Plug Pin Header
  • 5.08mm Pitch Dual Row Jointable PCB Pluggable Screw Terminal Blocks Plug Pin Header
  • 5.08mm Pitch Dual Row Jointable PCB Pluggable Screw Terminal Blocks Plug Pin Header
  • 5.08mm Pitch Dual Row Jointable PCB Pluggable Screw Terminal Blocks Plug Pin Header
  • 5.08mm Pitch Dual Row Jointable PCB Pluggable Screw Terminal Blocks Plug Pin Header
5.08mm Pitch Dual Row Jointable PCB Pluggable Screw Terminal Blocks Plug Pin Header
Product Details:
Place of Origin: China Mainland
Brand Name: Jetacon
Certification: CE,UL
Model Number: 5.08mm-Dual-Jointable
Payment & Shipping Terms:
Minimum Order Quantity: 50 pieces
Price: US $0.99
Packaging Details: Standard Export Carton
Delivery Time: 7-15 days
Payment Terms: T/T, L/C, Paypal, Payoneer
Supply Ability: 200 /Pieces per Day
Contact Now
Detailed Product Description
Color: Green Pitch: 5.08mm
Current: 10A

Certification: CE, Rohs
Pitch: 5.08mm
Poles: 2 Pins to 20 pins Jointable ( angle pin or straight pin )
Color:Green
Torque: 0.2Nm
Strip length: 5-6mm
Rated voltage: 300V
Rated current: 10A
Insulation resistance: 5000MΩ/1000V
Contact resistance: 20mΩ
Withstanding voltage: 2000V/1min
Wire range: 28~16AWG
5.08mm Pitch Dual Row Jointable PCB Pluggable Screw Terminal Blocks Plug Pin Header 0
5.08mm Pitch Dual Row Jointable PCB Pluggable Screw Terminal Blocks Plug Pin Header 1
