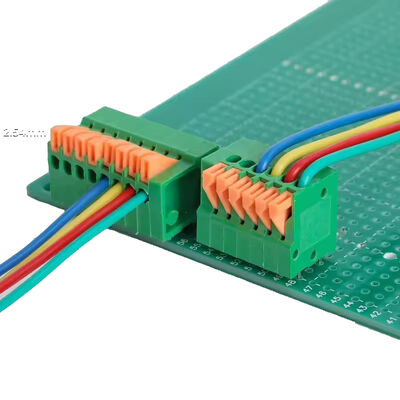

2.54mm Pitch PCB Screwless Spring Clamp Terminal Blocks Vertical Wiring

2.54mm Pitch PCB Screwless Spring Clamp Terminal Blocks Vertical Wiring

  • 2.54mm Pitch PCB Screwless Spring Clamp Terminal Blocks Vertical Wiring
  • 2.54mm Pitch PCB Screwless Spring Clamp Terminal Blocks Vertical Wiring
  • 2.54mm Pitch PCB Screwless Spring Clamp Terminal Blocks Vertical Wiring
  • 2.54mm Pitch PCB Screwless Spring Clamp Terminal Blocks Vertical Wiring
  • 2.54mm Pitch PCB Screwless Spring Clamp Terminal Blocks Vertical Wiring
  • 2.54mm Pitch PCB Screwless Spring Clamp Terminal Blocks Vertical Wiring
2.54mm Pitch PCB Screwless Spring Clamp Terminal Blocks Vertical Wiring
Product Details:
Place of Origin: Guang Dong
Brand Name: Jetacon
Certification: UL, CE
Model Number: EC142-02-3.81
Payment & Shipping Terms:
Minimum Order Quantity: 100 pieces
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T, L/C, Paypal, Payoneer
Supply Ability: 1KK poles monthly
Contact Now
Detailed Product Description
Type: Electrical Plug Grounding: Non-Grounding
Application: Industrial

Specifications:

Condition: Brand New
Certification: CE, Rohs
Pitch:2.54mm
Poles: 4 Pins ( joined togehter)
Color: black
Torque: 0.2Nm
Strip length: 5-6mm
Rated voltage: 150V
Rated current: 2A
Insulation resistance: 5000MΩ/1000V
Contact resistance: 20mΩ
Withstanding voltage: 2000V/1min
Wire range: 26~20AWG

Note:

The terminal blocks are in stock from 2 poles to 24 poles
The lead time will be longer if you buy above 12 poles terminal blocks, sometimes there will be no stock.
