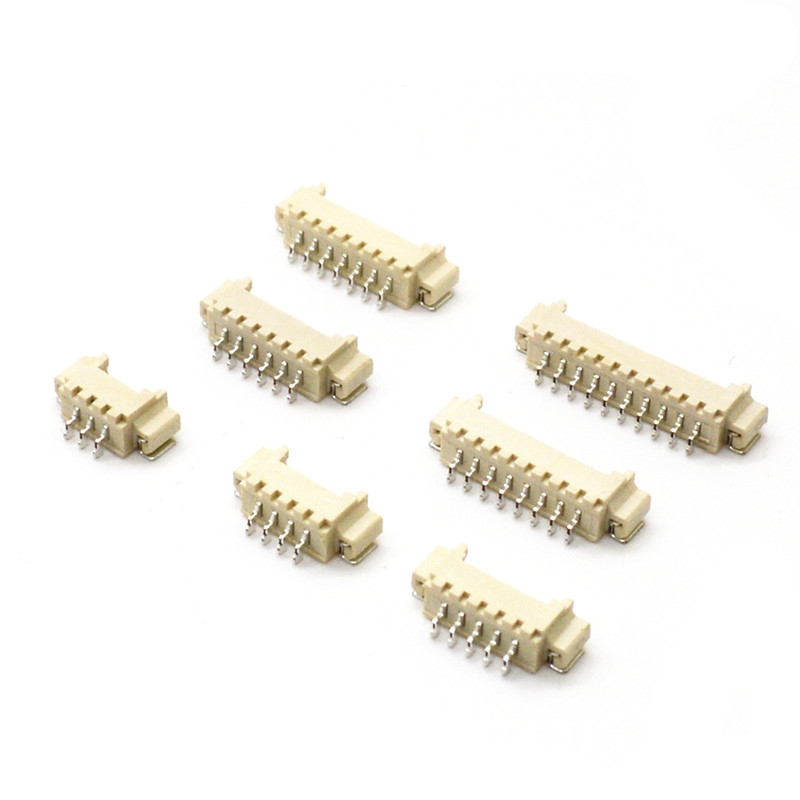

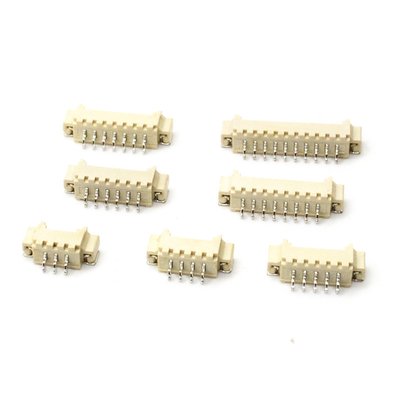

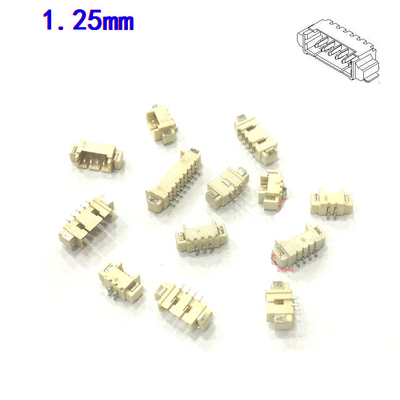

Replacement 53261 1.25mm Pitch Header Surface Mount Right Angle Wire to Board Connector

Replacement 53261 1.25mm Pitch Header Surface Mount Right Angle Wire to Board Connector

  • Replacement 53261 1.25mm Pitch Header Surface Mount Right Angle Wire to Board Connector
  • Replacement 53261 1.25mm Pitch Header Surface Mount Right Angle Wire to Board Connector
  • Replacement 53261 1.25mm Pitch Header Surface Mount Right Angle Wire to Board Connector
Replacement 53261 1.25mm Pitch Header Surface Mount Right Angle Wire to Board Connector
Product Details:
Place of Origin: China Mainland
Brand Name: Jetacon
Certification: CE
Model Number: MX1.25RA
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pieces
Price: US $0.09
Packaging Details: Standard Export Carton
Delivery Time: 3-5 days
Payment Terms: T/T, L/C, Paypal, Payoneer
Supply Ability: 1000 /Pieces per Day
Contact Now
Detailed Product Description
Housing: GF Nylon UL94V-0 Spacing: 1.25mm
Plating: Tin Contact: Phosphor Bronze

Header, Right Angle, SMT, 2 pin to 12 pin are in stock
Connector Type:Wire-to-Board
Gender:Pin

Spacing:1.25mm ( 0.49" )
Termination Method:Solder
Voltage Rating AC:125V;
Voltage Withstand:250V
Voltage Working:125V
Housing Type:GF Nylon UL94V-0
Contact:Phosphor Bronze
Plating, Contact:Tin
Rows No. of:1
RoHS Compliant: Yes

Replacement 53261 1.25mm Pitch Header Surface Mount Right Angle Wire to Board Connector 0
