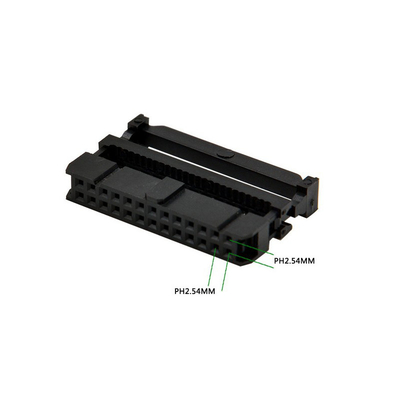

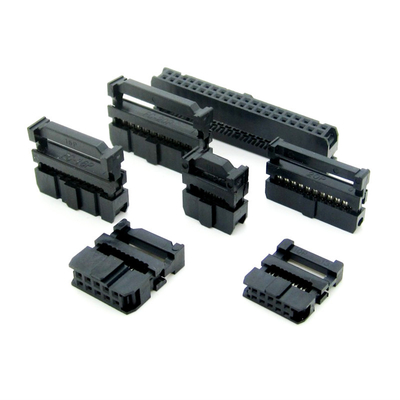

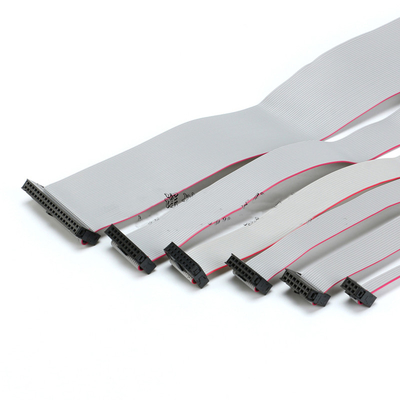

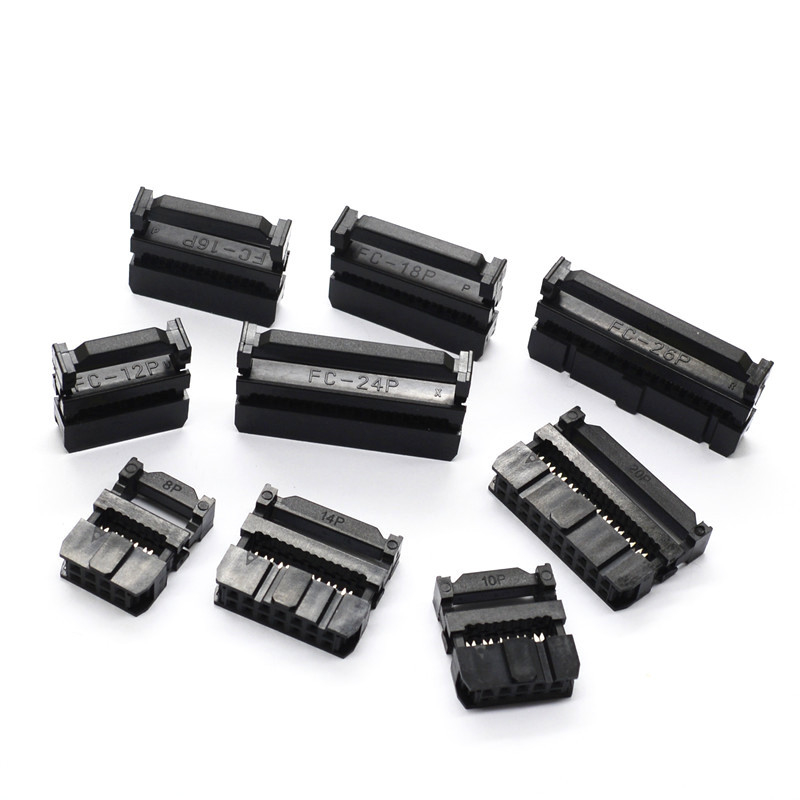

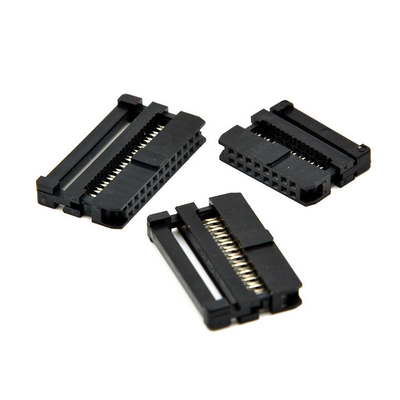

2.54mm Flat Cable IDC Female Socket Rectangular Receptacle Connector 6 - 64 Pins Replacement

2.54mm Flat Cable IDC Female Socket Rectangular Receptacle Connector 6 - 64 Pins Replacement

  • 2.54mm Flat Cable IDC Female Socket Rectangular Receptacle Connector 6 - 64 Pins Replacement
  • 2.54mm Flat Cable IDC Female Socket Rectangular Receptacle Connector 6 - 64 Pins Replacement
  • 2.54mm Flat Cable IDC Female Socket Rectangular Receptacle Connector 6 - 64 Pins Replacement
  • 2.54mm Flat Cable IDC Female Socket Rectangular Receptacle Connector 6 - 64 Pins Replacement
  • 2.54mm Flat Cable IDC Female Socket Rectangular Receptacle Connector 6 - 64 Pins Replacement
2.54mm Flat Cable IDC Female Socket Rectangular Receptacle Connector 6 - 64 Pins Replacement
Product Details:
Place of Origin: China Mainland
Brand Name: Jetacon
Certification: CE
Model Number: FC-6P / 64P
Payment & Shipping Terms:
Minimum Order Quantity: 500 pieces
Price: US $0.09 / Piece
Packaging Details: Standard Export Carton
Delivery Time: 7-15 days
Payment Terms: T/T, L/C, Paypal, Payoneer
Supply Ability: 500000pcs / per day
Contact Now
Detailed Product Description
Material: Plastic, Brass Color: Black
Wire Gauge: 26-28 AWG

IDC Socket Connector 6 position to 64 posistion available
Connector Type:Receptacle
Contact Type:Female Socket
Number of Positions:6 - 64 Position
Pitch:0.100" (2.54mm)
Number of Rows:2
Row Spacing:0.100" (2.54mm)
Mounting Type:Free Hanging (In-Line)
Fastening Type:-
Cable Termination:IDC
Wire Type:Ribbon Cable
Wire Gauge:26-28 AWG
Features:Feed Through Polarizing Key

Contact Material: Brass

Plating: Nickle or Tin Plated

2.54mm Flat Cable IDC Female Socket Rectangular Receptacle Connector 6 - 64 Pins Replacement 0



2.54mm Flat Cable IDC Female Socket Rectangular Receptacle Connector 6 - 64 Pins Replacement 1
