Name: RS232 to RS485 RS422 Converter Adapter Up To 1200 Meters Data Transmission
Brand: Shenzhen Jetacon Technology Limited
SKU: RS232-485-422
Price: 8.99 USD
Availability: InStock

Home Products Terminal Block Breakout Board

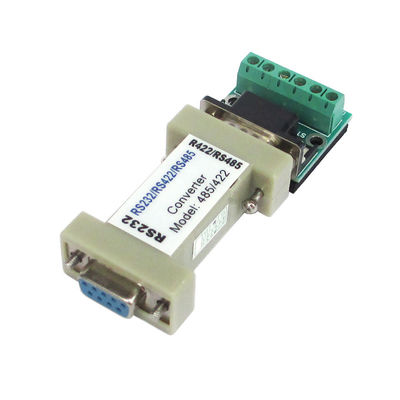

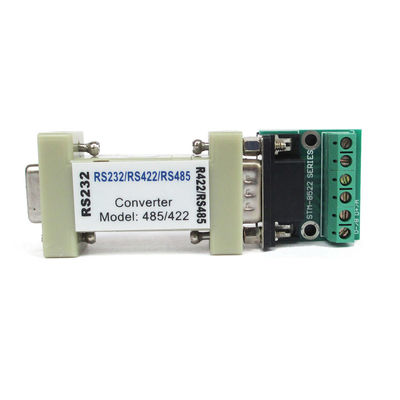

RS232 to RS485 RS422 Converter Adapter Up To 1200 Meters Data Transmission

Product Details:

Place of Origin:	China Mainland
Brand Name:	Jetacon
Certification:	CE
Model Number:	RS232-485-422

Payment & Shipping Terms:

Minimum Order Quantity:	10 pieces
Price:	US $8.99
Packaging Details:	Standard Export Carton
Delivery Time:	7-15 days
Payment Terms:	T/T, L/C, Paypal, Payoneer
Supply Ability:	100pcs / per day

Contact Now

Detailed Product Description

Color:	Green

Product Overview :

RS232 to RS485 Adapter ( R232<==>RS485<==RS422 ), interchangeable.

Instant use without drivers

Specification & Features :

- Compatibility : EIA/TIA RS232C standard and RS485 standard
- Interface RS232 side: DB9 female connector.
- Interface RS485 side: DB9 male connector with optional (included) terminal board.
- Transmission rate: 300 - 115200bps.
- Transmission distance: RS485 max. 1200m, RS232 side max. 5m
- Working mode: asynchronous, half-duplex, differential transmission.
- Working environment: 0 ~ 70°C, relative humidity 5% - 95%
- Mechanical dimensions: 95mm x 33mm x 17mm
