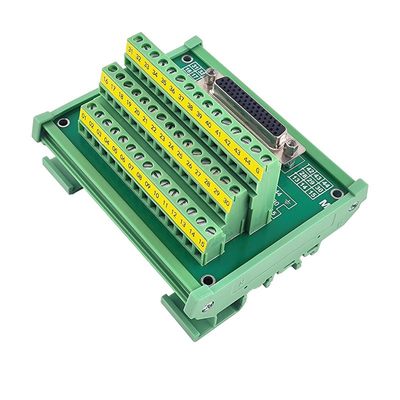

DB44 D Sub Female socket terminal block breakout board adapter with 1 meter cable

DB44 D Sub Female socket terminal block breakout board adapter with 1 meter cable

  • DB44 D Sub Female socket terminal block breakout board adapter with 1 meter cable
  • DB44 D Sub Female socket terminal block breakout board adapter with 1 meter cable
  • DB44 D Sub Female socket terminal block breakout board adapter with 1 meter cable
  • DB44 D Sub Female socket terminal block breakout board adapter with 1 meter cable
DB44 D Sub Female socket terminal block breakout board adapter with 1 meter cable
Product Details:
Place of Origin: Guang Dong
Brand Name: Jetacon
Certification: UL, CE
Model Number: DB44F-TB-1MC
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T, L/C, Paypal, Payoneer
Supply Ability: 1KK poles monthly
Contact Now
Detailed Product Description
Number Of Contacts: 41 - 50 Conductor Size: 11 - 20 AWG
Type: PCB

Default Package included :

Process Side Connection Terminal Blocks - Screw Connection
Control Side Connection Female
Control Side Cable 1 meter, Male to Male
Positions / Poles 44
Features -
Voltage - Rated 125AC
Current Rating (Per Contact) 2.5A
Operating Temperature -10°C ~ 50°C
Cable Length 100cm
Width -
Wire Gauge 14-22 AWG



Size: 99mm x 90mm x 54mm

DB44 D Sub Female socket terminal block breakout board adapter with 1 meter cable 0


Note: some times the item is from customized products, the actual product will have some minor difference from the photo, thanks.
