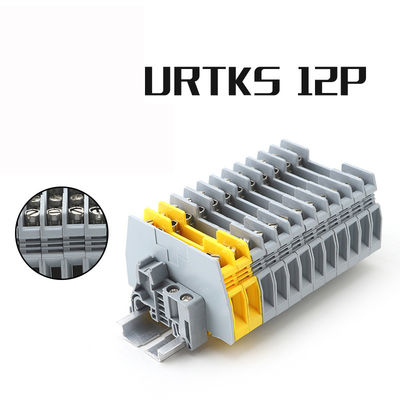

URTK/S 6mm² Din Rail Test Terminal Blocks Strips Screw Clamping

URTK/S 6mm² Din Rail Test Terminal Blocks Strips Screw Clamping

  • URTK/S 6mm² Din Rail Test Terminal Blocks Strips Screw Clamping
  • URTK/S 6mm² Din Rail Test Terminal Blocks Strips Screw Clamping
  • URTK/S 6mm² Din Rail Test Terminal Blocks Strips Screw Clamping
  • URTK/S 6mm² Din Rail Test Terminal Blocks Strips Screw Clamping
  • URTK/S 6mm² Din Rail Test Terminal Blocks Strips Screw Clamping
  • URTK/S 6mm² Din Rail Test Terminal Blocks Strips Screw Clamping
  • URTK/S 6mm² Din Rail Test Terminal Blocks Strips Screw Clamping
  • URTK/S 6mm² Din Rail Test Terminal Blocks Strips Screw Clamping
URTK/S 6mm² Din Rail Test Terminal Blocks Strips Screw Clamping
Product Details:
Place of Origin: Guang Dong
Brand Name: Jetacon
Certification: UL, CE
Model Number: URTK/S
Payment & Shipping Terms:
Minimum Order Quantity: 100 pieces
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T, L/C, Paypal, Payoneer
Supply Ability: 1KK poles monthly
Contact Now
Detailed Product Description
Number Of Contacts: 1 - 10 Conductor Size: 11 - 20 AWG
Type: Screw

Specifications:

Condition: Brand New

--
standard UL IEC
rated voltage 600V 800V
rated current 40A 41A
cross section of conductor 26-10AWG 0.5-6mm2
thick / width / Height 8.2mm / 72mm / 51.5mm
height(NS35:7.5 / NS35:15 / NS32) 51.5/59/56mm
Rated impulse voltage 6KV
Wire stripping  length 13mm
screw/torque for wiring M4/1.2-1.5Nm
breaker block screw/torque for wiring M3/0.6-0.8Nm
Plug gauge A5
Insulated material/Flame retardant level PA66/V0

--
URTK/S 6mm² Din Rail Test Terminal Blocks Strips Screw Clamping 0
URTK/S 6mm² Din Rail Test Terminal Blocks Strips Screw Clamping 1
-
Accessories


URTK/S 6mm² Din Rail Test Terminal Blocks Strips Screw Clamping 2

Mounting Rail

End Caps

End Stopper

URTK/S 6mm² Din Rail Test Terminal Blocks Strips Screw Clamping 3
URTK/S 6mm² Din Rail Test Terminal Blocks Strips Screw Clamping 4
URTK/S 6mm² Din Rail Test Terminal Blocks Strips Screw Clamping 5

Top Strip Jumper

Markers

Marker Holder
