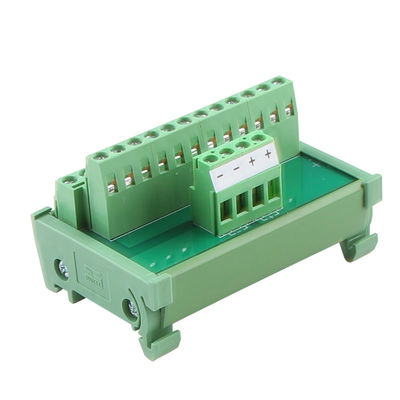

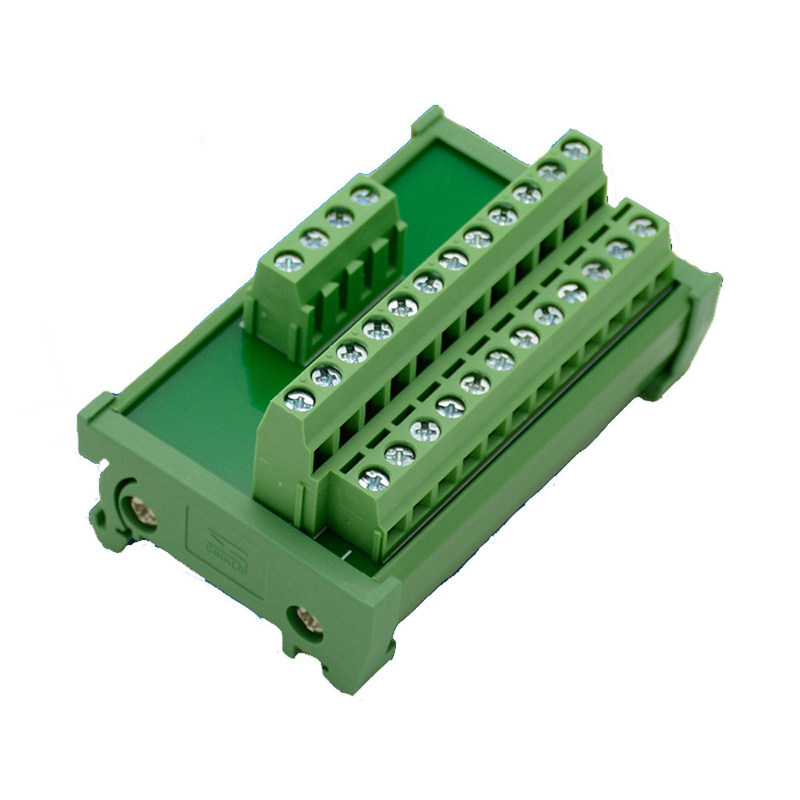

1 in 12 out Power Source Wiring Distribution Splitter Divider Terminal Blocks Breakout Board

Product Details:

Place of Origin:	Guang Dong
Brand Name:	Jetacon
Certification:	CE
Model Number:	Splitter12

Payment & Shipping Terms:

Minimum Order Quantity:	5 pieces
Price:	Get latest price
Packaging Details:	Standard Export Carton
Delivery Time:	7-20 working days
Payment Terms:	T/T, L/C, Paypal, Payoneer
Supply Ability:	1000ea monthly

Contact Now

Detailed Product Description

Number Of Contacts:	11 - 20	Conductor Size:	11 - 20 AWG
Type:	Screws	Power Supply:	DC24V

Application Reference: You may connect it to Control units ( +DC24V or -DC24V )

Features:
1 way entry 12 ways exit
Mounting: Din 35mm
Power Supply: DC24V

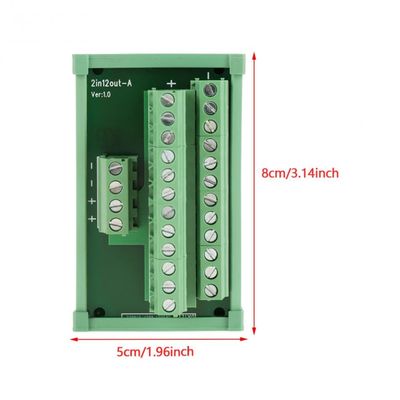

Size :73mm L x 48mm W x 40mm H
Standard Din Rail installation ( 35mm )
Current Input ( Common Port) :25A
Current Output ( one way): 10A (if the current is output to a one-way port only at the same time)
Current Output (12 ways) : 5A ( If the current is output to the 8-way port at the same time)
Note: some times the item is from customized products, the actual productwill have some minor difference from the photo, thanks.
