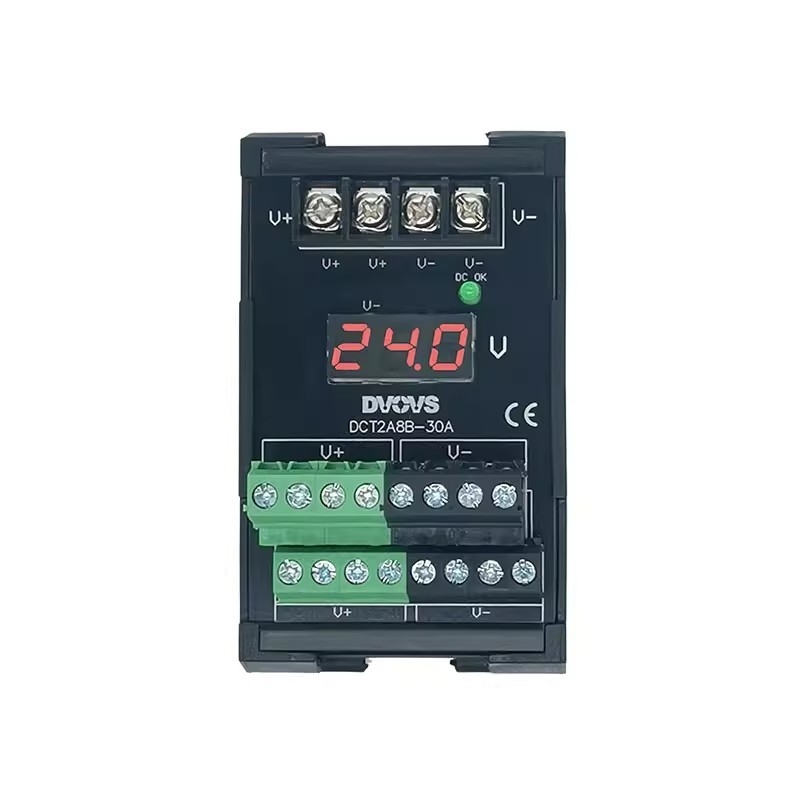

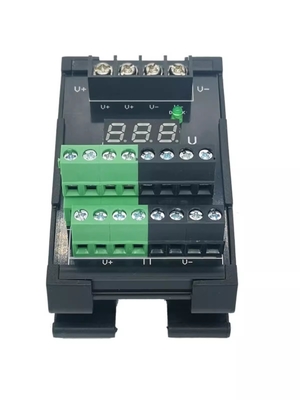

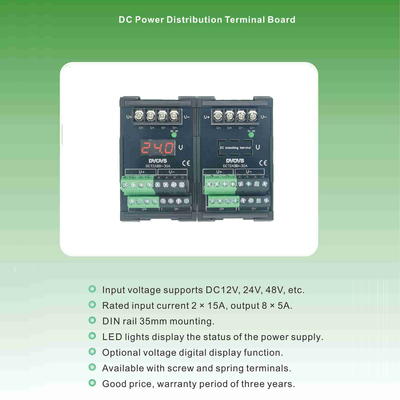

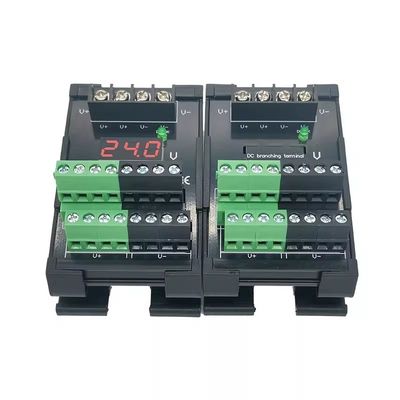

Name: Digital Display DC 24V 8 Ways Power Source Wiring Distribution Splitter Terminal Blocks Breakout Board
Brand: Shenzhen Jetacon Technology Limited
SKU: DCT2A8B-30A
Availability: InStock

Home Products Terminal Block Breakout Board

Digital Display DC 24V 8 Ways Power Source Wiring Distribution Splitter Terminal Blocks Breakout Board

Product Details:

Place of Origin:	Guang Dong
Brand Name:	Jetacon
Certification:	CE
Model Number:	DCT2A8B-30A

Payment & Shipping Terms:

Minimum Order Quantity:	5 Pieces
Price:	Get latest price
Packaging Details:	Standard Export Carton
Delivery Time:	7-20 working days
Payment Terms:	T/T, L/C, Paypal, Payoneer
Supply Ability:	1000ea monthly

Contact Now

Detailed Product Description

Number Of Contacts:	1 - 10	Conductor Size:	11 - 20 AWG
Type:	Screw

Application Reference: You may connect it to Control units ( +DC24V or -DC24V )
Power Supply input options: DC 12V, DC 24V, DC 48V e.g, Digital Display
Size :53mm L x 48mm W x 40mm H
Standard Din Rail installation ( 35mm )
Current Input ( Common Port) : 30 Amps Maximum
Current Output ( one way): 10 Amps (if the current is output to a one-way port only at the same time)
Current Output ( 8 ways) : 5Amps ( If the current is output to the 8-way port at the same time)
Note: some times the item is from customized products, the actual productwill have some minor difference from the photo, thanks.
