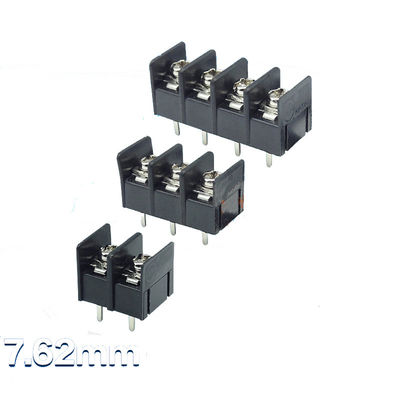

7.62mm / 0.3" Barrier Screw Terminal Blocks Jointable Straight Pin
Product Details:
| Place of Origin: |
Guang Dong |
| Brand Name: |
Jetacon |
| Certification: |
UL, CE |
| Model Number: |
EC201-762-01 |
Payment & Shipping Terms:
| Minimum Order Quantity: |
500 |
| Price: |
Get latest price |
| Packaging Details: |
Standard Export Carton |
| Delivery Time: |
7-20 working days |
| Payment Terms: |
T/T, L/C, Paypal, Payoneer |
| Supply Ability: |
1KK poles monthly |
Contact Now
Detailed Product Description
| Number Of Contacts: |
1 - 10 |
Conductor Size: |
11 - 20 AWG |
| Type: |
Screw |
Specifications:
Condition: Brand New
Certification: CE, Rohs
Pitch:7.62mm
Poles: 2 pin +3 pin, joined togehter
Color: black
Torque: 0.2Nm
Strip length: 5-6mm
Rated voltage: 300V
Rated current: 20A
Insulation resistance: 5000MΩ/1000V
Contact resistance: 20mΩ
Withstanding voltage: 2000V/1min
Wire range: 22~14AWG
