DC 24V 8V 12V 5V Power Supply Source Wiring Distribution Splitter Terminal Blocks Breakout Board

DC 24V 8V 12V 5V Power Supply Source Wiring Distribution Splitter Terminal Blocks Breakout Board

  • DC 24V 8V 12V 5V Power Supply Source Wiring Distribution Splitter Terminal Blocks Breakout Board
  • DC 24V 8V 12V 5V Power Supply Source Wiring Distribution Splitter Terminal Blocks Breakout Board
  • DC 24V 8V 12V 5V Power Supply Source Wiring Distribution Splitter Terminal Blocks Breakout Board
  • DC 24V 8V 12V 5V Power Supply Source Wiring Distribution Splitter Terminal Blocks Breakout Board
DC 24V 8V 12V 5V Power Supply Source Wiring Distribution Splitter Terminal Blocks Breakout Board
Product Details:
Place of Origin: Guang Dong
Brand Name: Jetacon
Certification: CE
Model Number: Splitter9
Payment & Shipping Terms:
Minimum Order Quantity: 2 pieces
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T, L/C, Paypal, Payoneer
Supply Ability: 1000ea monthly
Contact Now
Detailed Product Description
Number Of Contacts: 31 - 40 Conductor Size: 11 - 20 AWG
Type: Screw

Application Reference: You may connect it to Control units

Input Option: DC24V DC12V DC8V DC5V

Output: DC24V ( 6 ways) , DC12V (4ways), DC8V ( 2 ways), DC5V ( 6 Ways), GND ( 18 ways)

Size :153mm L x 89mm W x 40mm H

Standard Din Rail installation ( 35mm )

Current Input ( Common Port) :25A

Current Output ( one way): 10A (if the current is output to a one-way port only at the same time)

Current Output ( 8 ways) : 5A ( If the current is output to the 8-way port at the same time)

Note: some times the item is from customized products, the actual productwill have some minor difference from the photo, thanks.

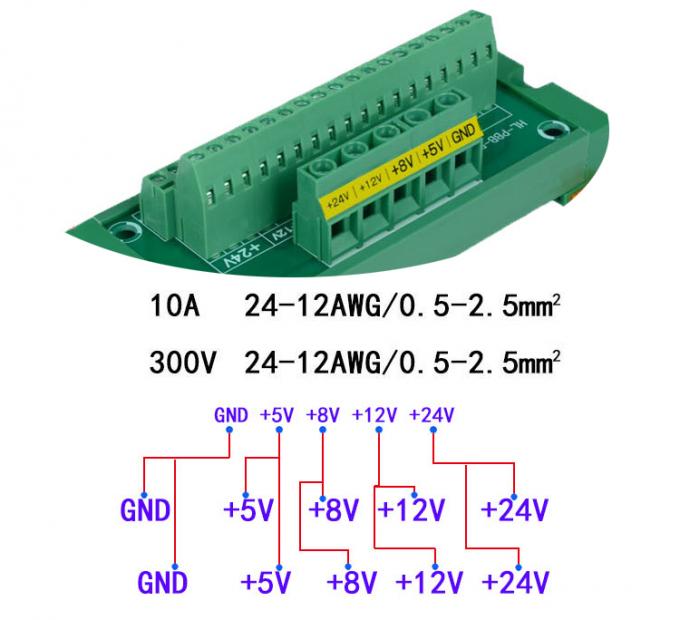

DC 24V 8V 12V 5V Power Supply Source Wiring Distribution Splitter Terminal Blocks Breakout Board 0

DC 24V 8V 12V 5V Power Supply Source Wiring Distribution Splitter Terminal Blocks Breakout Board 1
