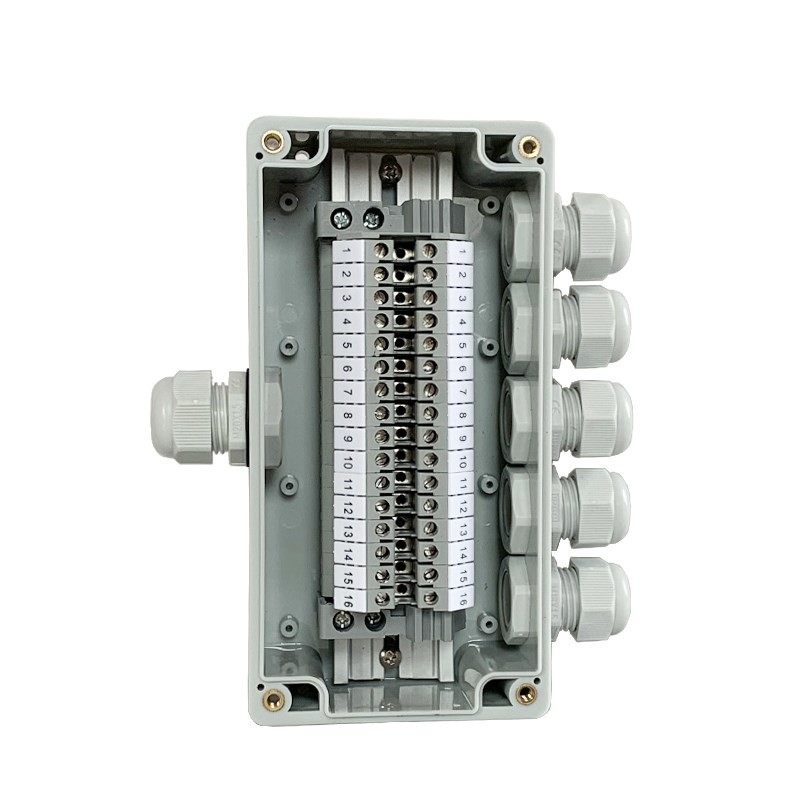

IP65 Waterproof Cable Junction Box 1 in 5 out 80*160*55mm with UK2.5B Din Rail Terminal Blocks

IP65 Waterproof Cable Junction Box 1 in 5 out 80*160*55mm with UK2.5B Din Rail Terminal Blocks

  • IP65 Waterproof Cable Junction Box 1 in 5 out 80*160*55mm with UK2.5B Din Rail Terminal Blocks
  • IP65 Waterproof Cable Junction Box 1 in 5 out 80*160*55mm with UK2.5B Din Rail Terminal Blocks
  • IP65 Waterproof Cable Junction Box 1 in 5 out 80*160*55mm with UK2.5B Din Rail Terminal Blocks
  • IP65 Waterproof Cable Junction Box 1 in 5 out 80*160*55mm with UK2.5B Din Rail Terminal Blocks
  • IP65 Waterproof Cable Junction Box 1 in 5 out 80*160*55mm with UK2.5B Din Rail Terminal Blocks
  • IP65 Waterproof Cable Junction Box 1 in 5 out 80*160*55mm with UK2.5B Din Rail Terminal Blocks
  • IP65 Waterproof Cable Junction Box 1 in 5 out 80*160*55mm with UK2.5B Din Rail Terminal Blocks
IP65 Waterproof Cable Junction Box 1 in 5 out 80*160*55mm with UK2.5B Din Rail Terminal Blocks
Product Details:
Place of Origin: Guang Dong
Brand Name: Jetacon
Certification: UL, CE
Model Number: JBox 1608055
Payment & Shipping Terms:
Minimum Order Quantity: 5 pieces
Price: US $39.99 / Piece
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T, L/C, Paypal, Payoneer
Supply Ability: 1KK poles monthly
Contact Now
Detailed Product Description
Material: ABS Plastic Size: 160mmx80mmx55mm
Connectors: PG13.5x1 PG11x5 Screw Terminals: UK2.5B Screw Terminals

Box Material: ABS
IP65 Waterproof
Box outer dimension 160mm length x 80mm width x 55mm height
Wall thickness :1.5mm

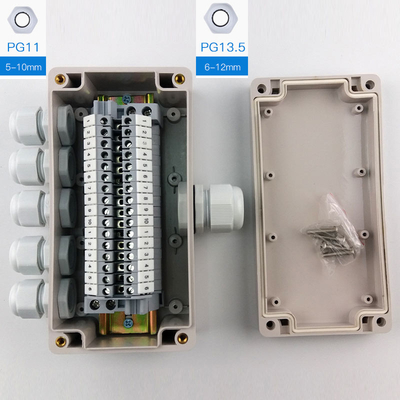

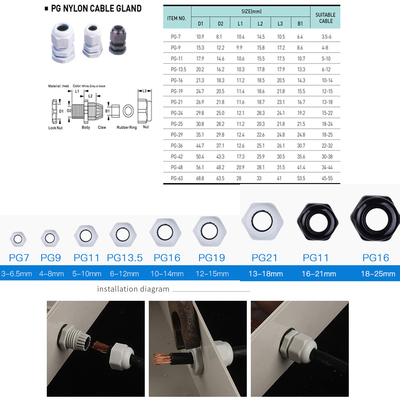

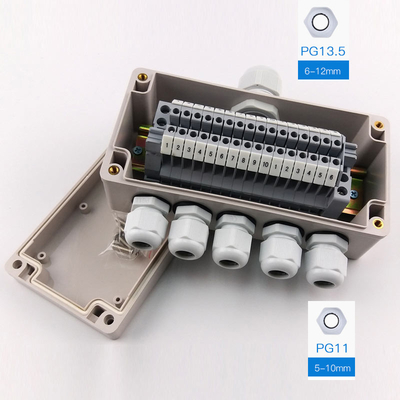

Cable Connectors: PG13.5 x 1,  PG11 x5

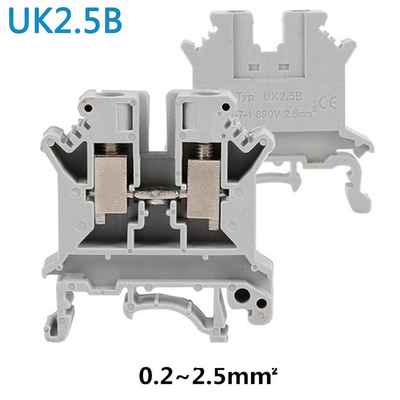

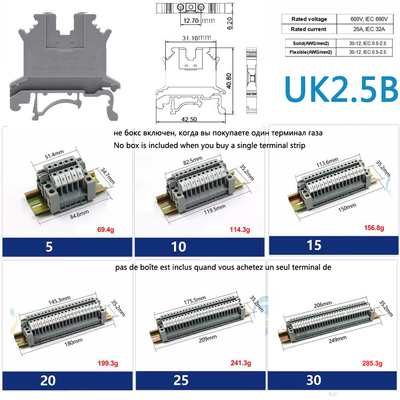

Terminal blocks: UK2.5B din rail terminal blocks, 16-position
Cable diameter size range: 4mm - 8mm

IP65 Waterproof Cable Junction Box 1 in 5 out 80*160*55mm with UK2.5B Din Rail Terminal Blocks 0

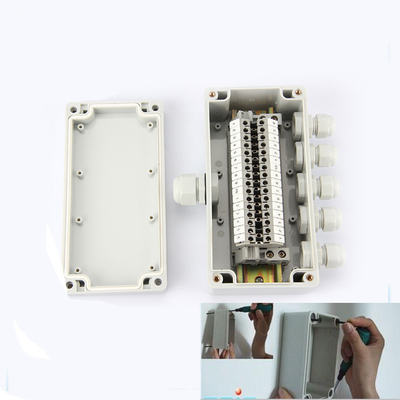

Walll Mounting Instruction
