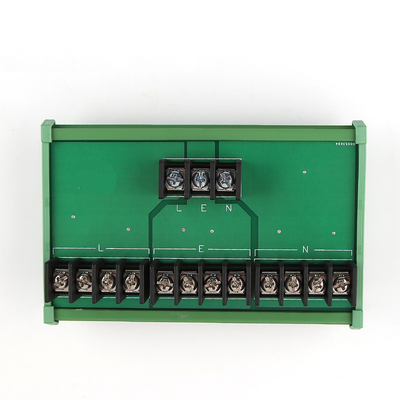

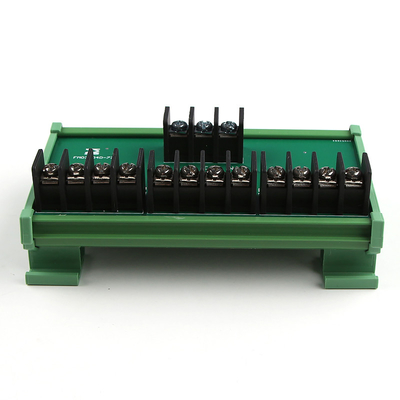

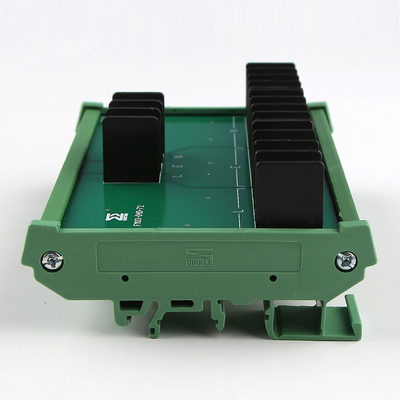

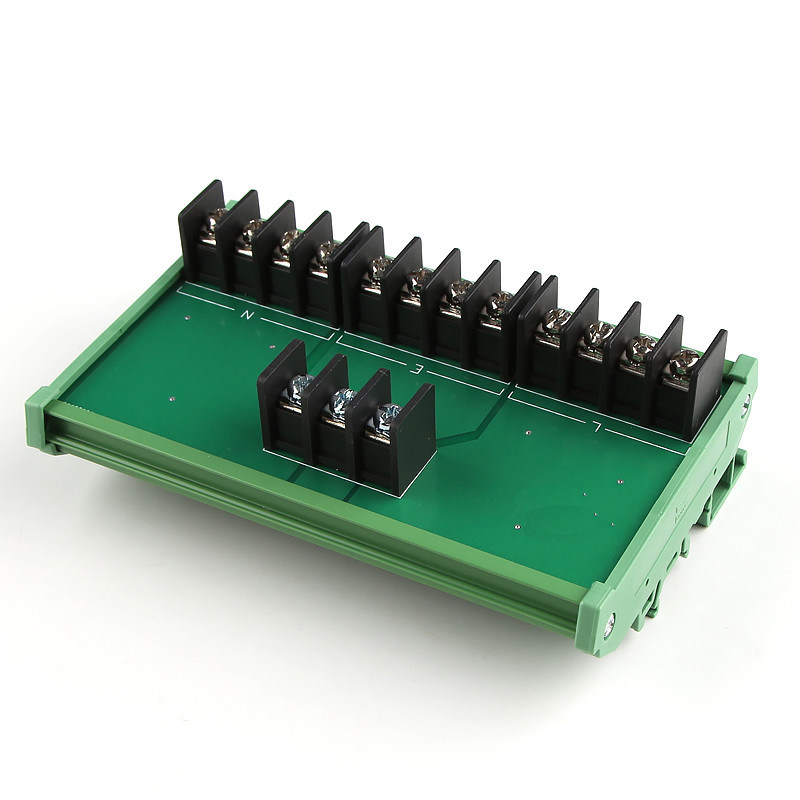

1 In 4 Out Power Source Wiring Distribution Splitter Terminal Blocks Breakout Board 300V 25A

1 In 4 Out Power Source Wiring Distribution Splitter Terminal Blocks Breakout Board 300V 25A

  • 1 In 4 Out Power Source Wiring Distribution Splitter Terminal Blocks Breakout Board 300V 25A
  • 1 In 4 Out Power Source Wiring Distribution Splitter Terminal Blocks Breakout Board 300V 25A
  • 1 In 4 Out Power Source Wiring Distribution Splitter Terminal Blocks Breakout Board 300V 25A
  • 1 In 4 Out Power Source Wiring Distribution Splitter Terminal Blocks Breakout Board 300V 25A
1 In 4 Out Power Source Wiring Distribution Splitter Terminal Blocks Breakout Board 300V 25A
Product Details:
Place of Origin: Guang Dong
Brand Name: Jetacon
Certification: CE
Model Number: Splitter12-300V
Payment & Shipping Terms:
Minimum Order Quantity: 5 pieces
Price: US $32.99
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T, L/C, Paypal, Payoneer
Supply Ability: 1000ea monthly
Contact Now
Detailed Product Description
Number Of Contacts: 1 - 12 Conductor Size: 12 - 24 AWG
Size: 132mm X 87mm X 45mm Voltage: 300V
Current: 25A

 Application Reference: You may connect it to Control units


Power Supply: 300V

Size :132mm L x 87mm W x 45mm H

Standard Din Rail installation ( 35mm )

Current Input ( Common Port) :25A

Current Output ( one way): 25A (if the current is output to a one-way port only at the same time)

Current Output ( 12 ways) : 25A ( If the current is output to the 8-way port at the same time)

Note: some times the item is from customized products, the actual productwill have some minor difference from the photo, thanks.
