Microwave Radar Sensor AC 110V / 220V 5.8GHz Body Motion HF Detector Light Switch

Microwave Radar Sensor AC 110V / 220V 5.8GHz Body Motion HF Detector Light Switch

  • Microwave Radar Sensor AC 110V / 220V 5.8GHz Body Motion HF Detector Light Switch
  • Microwave Radar Sensor AC 110V / 220V 5.8GHz Body Motion HF Detector Light Switch
  • Microwave Radar Sensor AC 110V / 220V 5.8GHz Body Motion HF Detector Light Switch
  • Microwave Radar Sensor AC 110V / 220V 5.8GHz Body Motion HF Detector Light Switch
  • Microwave Radar Sensor AC 110V / 220V 5.8GHz Body Motion HF Detector Light Switch
  • Microwave Radar Sensor AC 110V / 220V 5.8GHz Body Motion HF Detector Light Switch

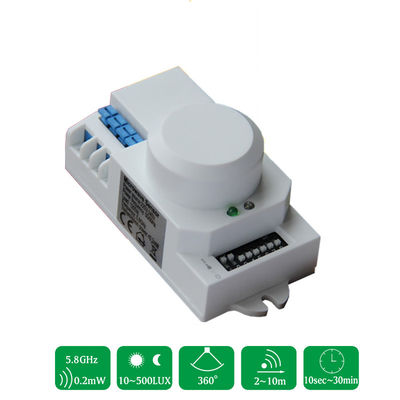

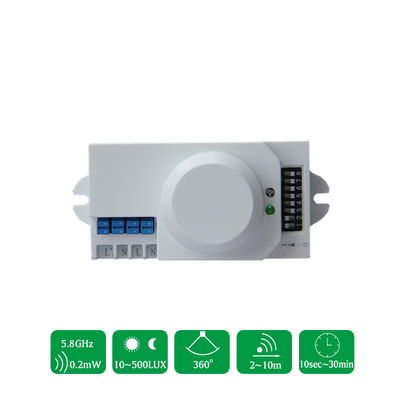

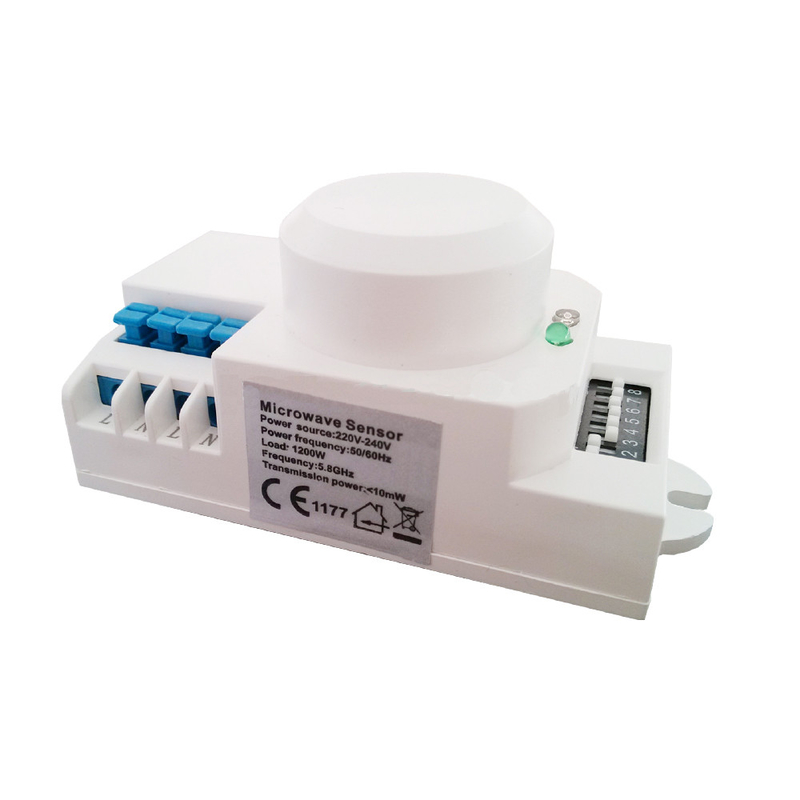

Microwave Radar Sensor AC 110V / 220V 5.8GHz Body Motion HF Detector Light Switch
Product Details:
Place of Origin: China Mainland
Brand Name: Jetacon
Certification: CE
Model Number: L-S-16
Payment & Shipping Terms:
Minimum Order Quantity: 10 Pieces
Price: US $9.99
Packaging Details: Standard Export Carton
Delivery Time: 7-15 days
Payment Terms: T/T, L/C, Paypal, Payoneer
Supply Ability: 100 /Pieces per Day
Contact Now
Detailed Product Description
Color: White Voltage Output: AC110V Or AC220V
Current Output: 10A

Specifications:
Name: Microwave Sensor

Color: White

Input: 220-240V AC or 110V -120V
Frequency: 5.8GHz
Transmission power: < 0.2mW
Power Comsumption: <0.5W
Load: 7A(MAX)
Sensing Angle: 360°
Time Delay: 10 Seconds to 30 Seconds.
Sensing Distance: 1M-10M
Photosensitive Setting: 5-2000Lux
Operating Temperature: -35℃to+80℃

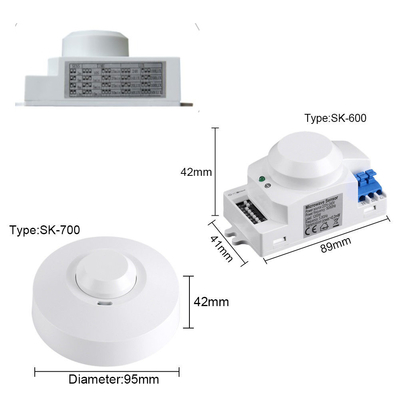

Size: Approx. 90 x 41 x 39mm / 3.54'' x 1.61'' x 1.53''
Package Weight: Approx. 82

Package Included: 1 x Light Switch

Microwave Radar Sensor AC 110V / 220V 5.8GHz Body Motion HF Detector Light Switch 0

Microwave Radar Sensor AC 110V / 220V 5.8GHz Body Motion HF Detector Light Switch 1

Microwave Radar Sensor AC 110V / 220V 5.8GHz Body Motion HF Detector Light Switch 2

Microwave Radar Sensor AC 110V / 220V 5.8GHz Body Motion HF Detector Light Switch 3
