6ES7 216-2AD23-0XB0 SIMATIC S7-200 CPU 226 Compatible with PLC

6ES7 216-2AD23-0XB0 SIMATIC S7-200 CPU 226 Compatible with PLC

6ES7 216-2AD23-0XB0 SIMATIC S7-200 CPU 226 Compatible with PLC

Product Details:

Place of Origin: Guang Dong
Brand Name: Jetacon
Certification: UL, CE
Model Number: 6ES7 216-2AD23-0XB0

Payment & Shipping Terms:

Minimum Order Quantity: 2 Pieces
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T, L/C, Paypal, Payoneer
Supply Ability: 1KK poles monthly
Contact Now
Detailed Product Description

Completely compatible with plc S7 200 software,CPU and Extension Module,
It can perfectly replace each other,and plc step 7-MICRO/WIN programming software supported.

 Central Processing Unit CPU  S7 200 PLC Part No.  plc model
8 input/6 output, Transistor 6ES7 212-1AB23-0XB0 CPU 222, DC PS, 8DI DC/6DO DC
8 input/6 output, Relay 6ES7 212-1BB23-0XB0 CPU 222, AC PS, 8DI DC/6DO RELAY
14 input/10 output, Transistor 6ES7 214-1AD23-0XB0 CPU 224, DC PS, 14DI DC/10DO DC
14 input/10 output, Relay 6ES7 214-1BD23-0XB0 CPU 224, AC PS, 14DI DC/10DO RELAY
14 input/10 output, Transistor; 2 point analog input,1 point analog output  6ES7 214-2AD23-0XB0 CPU224XP, DC PS, 14DI DC/10DO DC/2AI/1AO
14 input/10 output, Relay; 2 point analog input,1 point analog output 6ES7 214-2BD23-0XB0 CPU224XP,AC PS,14DI DC/10DO REL./2AI/1AO
24 input/16 output, Transistor 6ES7 216-2AD23-0XB0 CPU 226, DC PS, 24DI DC/16DO DC
24 input/16 output, Relay 6ES7 216-2BD23-0XB0 CPU 226, AC PS, 24DI DC/16DO RELAY

-

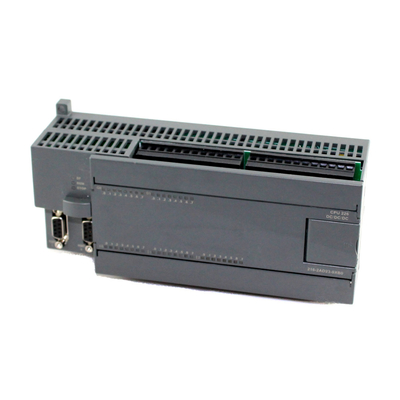

6ES7 216-2AD23-0XB0 SIMATIC S7-200 CPU 226 Compatible with PLC


-

 PLC CPU226
·Strong capabilities of high-speed computering and data

    processing

·Program memory:72KB

·Boolean execution speed: 0.08µs per instruction

·Port:2 RS-485 ports, within1standard PPI port
Technical specifications
Model CPU226 DC/DC/DC
Physical characteristic
Dimensions(W x H x D)(mm) 196×80×62
Power consume 11W
Memory

With run mode edit 36K bytes
Without run mode edit 72K bytes
Data memory 40960bytes
I/O
Local digital inputs 24 inputs
Local digital outputs 16 outputs
Digital I/O image size 256(128 inputs/128 outputs)
Analog I/O image size 64(32 inputs/32 outputs)
expansion modules allowed (Max) 7 modules
intelligent modules allowed (Max) 7 modules
Pulse catch inputs 24
High-speed counters 6 counters total

Two phase 4 at 20KHz
Pulse outputs 2 at 20KHz(DC outputs only)
Power
Input voltage 20.4 to 28.8 V DC
Input current 110mA while CPU only at 24 V DC
700mA while Max. load at 24 V DC
Inrush current 12A at 28.8 V DC
Isolation(field to logic) Not isolated
Hold up time(loss of power) 1s at 24 V DC
Sensor voltage L+ minus 5 V
Current limit 1.5A peak,thermal limit non-destructive

Isolation (sensor to logic) Not isolated
CPU Digital Input Specifications
Built-in digital inputs 24
Input type PNP/NPN
Rated voltage 24 V DC at 4mA
Max. continuous  permissible voltage 30 V DC
Surge voltage 35 V DC for 0.5s
Logic “1”  voltage range 15 to 30 V DC
Logic “0”  voltage range 0 to 5 V DC
Input delay Selectable (0.2 to12.8ms)
Isolation (field to logic) Yes
Optical galvanic 500 V AC for 1minute
Isolation groups Refer to Wiring diagram


HSC logic level 1(15 TO 26 V DC) 30K Hz (Single phase), 20K Hz (Tow phase),
Inputs on simultaneously all
Shielded 500m normal inputs, 50m HSC inputs
unshielded 300m normal inputs
CPU Digital Output Specifications
Built-in outputs 16 outputs

Rated voltage 24 V DC
Voltage range 20.4 to 28.8 V DC
Surge current (Max.) 8A for 100ms
Logic “1”  (Min) 20 V DC,at maximum current
Logic “0”  (Max) 0.1 V DC with 10KΩ load
Isolation

Isolation groups Refer to wiring diagram
Cable Length (Shielded) 500m
Cable Length (unshielded) 150m
Order number 6ES7 216-2AD23-0XB0

-

6ES7 216-2AD23-0XB0 SIMATIC S7-200 CPU 226 Compatible with PLC

-





6ES7 216-2AD23-0XB0 SIMATIC S7-200 CPU 226 Compatible with PLC
