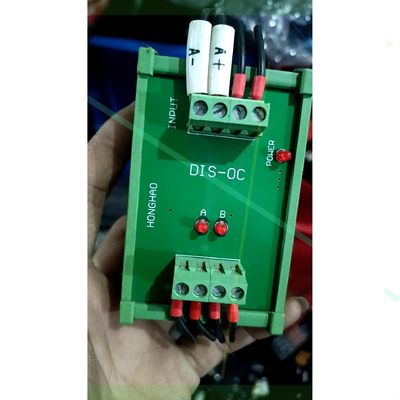

Converter 5V Differential TTL Singal into Collector 24V HTL Signal 2 Ways Support PLC NPN and PNP

Differintial Signal TTL (5V) to Open Collector Signals (24V), Frequency 2MHz Compatible With NPN and PNP PLC


Introduction:
1. Make the differential signal to the open collector signal output, 2 channels, electrical isolation between input and output.
2. Working frequency: 2000000Hz
3. The collector output mode: using push-pull output mode,support NPN or PNP input's PLC interface .
4. Installation: DIN35mm rail mounting,convenient and quick!
5. Product Size: 43mm x 87mm x 47mm
6. Rated Working Power Voltage: DC24V ( DC14V- DC30V is also available in some condition)
7. Singal Output Voltage: HTL

Applications:
1. servo driver output ABZ signal to the collector output signal, input to the PLC high-speed counter interface.
2. the differential encoder output signal to the collector output signal, input to the PLC high-speed counter interface.
3. for a plurality of servo motor speed synchronization control.
