    Product Details:

    Place of Origin: Guang Dong
    Brand Name: Jetacon
    Certification: UL, CE
    Model Number: 6ES7 331-7PF01-0AB0

    Payment & Shipping Terms:

    Minimum Order Quantity: 10
    Price: Get latest price
    Packaging Details: Standard Export Carton
    Delivery Time: 7-20 working days
    Payment Terms: T/T, L/C, Paypal, Payoneer
    Supply Ability: 1KK poles monthly
    Contact Now
    Detailed Product Description

    Type Number Available :
    Analog Input RTD PT100 Module for SIMATIC S7 300

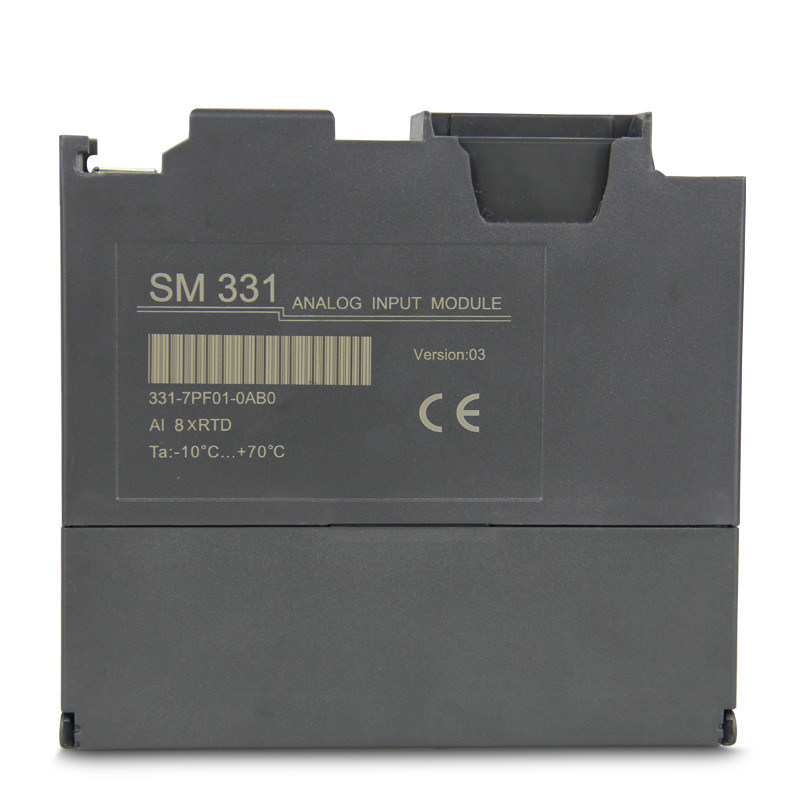

    6ES7 331-7PF01-0AB0
    6ES7 331-7PF11-0AB0

    -

    SM331 Analog I/O Module Compatible PLC S7-300 6ES7 6ES7 331-7PF01-0AB0 331-7PF11-0AB0

    -

    Model SM331

    8AI RTD
    Product Description 8AI;

    RTD temperature measurement modules; stable
    Power consumption
    ·Rate value 24V DC
    ·From backplane bus current consumption 50mA
    ·From L+ 40mA
    ·Power loss 1W
    The power of transmitter
    ·Supply current /
    ·short-circuit protection /
    Number of analog inputs 8
    Cable Length (Shielded) Max:200m
    Input type and input range
    ·voltage /
    ·current(4wire) /
    ·current(2wire) /
    ·tesistance 150Ω, 300Ω, 600Ω,
    ·thermocouple /
    ·RTD Pt10, Pt50,Pt100, Pt200, Pt500, Pt1000, Ni100, Ni120,Ni200,Ni500,Ni1000,Cu10(9.035),Cu50,Cu100
    A/D resolution 16bits
    Basic conversion time(per channel) 190ms
    Interference frequency suppression 400/50/60Hz
    Tolerance(Over entire temperature range)
    ·Voltage /
    ·Current /
    ·resistance ±0.1%
    ·temperature ±1°C
    Interrupts
    Diagnostic interrupt Per group Yes,Configurable
    Limit-value interrupt Yes,Configurable
    Isolation tested for contact
    ·Between channels Yes
    ·Between channels and backplane bu Yes
    Front connector 40-pin
    Dimensions(W x H x D)(mm) 40×125×120
    Order Number 6ES7 331-7PF01-0AB0

    -
