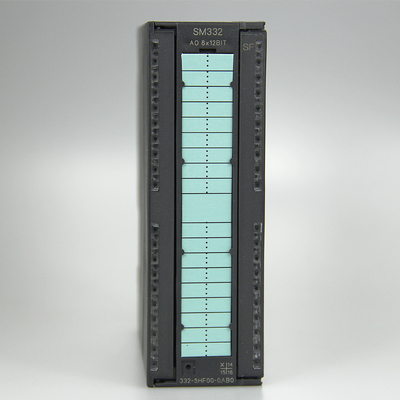

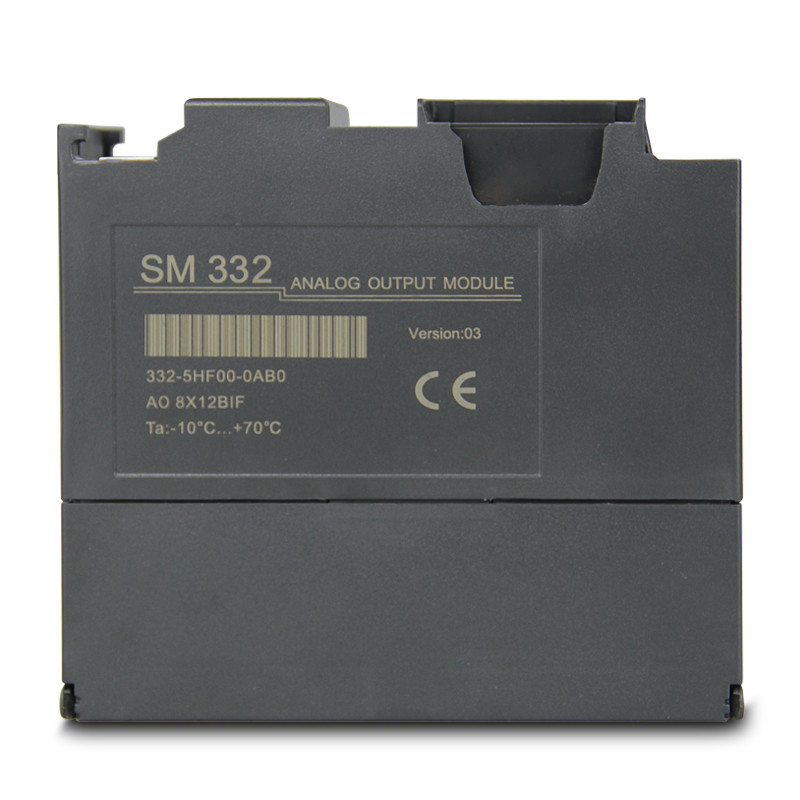

SM332 Analog I/O Module Compatible PLC S7-300 6ES7 332-5HF00-0AB0 332-5HD01-0AB0

SM332 Analog I/O Module Compatible PLC S7-300 6ES7 332-5HF00-0AB0 332-5HD01-0AB0

    • SM332 Analog I/O Module Compatible PLC S7-300 6ES7 332-5HF00-0AB0 332-5HD01-0AB0
    • SM332 Analog I/O Module Compatible PLC S7-300 6ES7 332-5HF00-0AB0 332-5HD01-0AB0
    • SM332 Analog I/O Module Compatible PLC S7-300 6ES7 332-5HF00-0AB0 332-5HD01-0AB0
    • SM332 Analog I/O Module Compatible PLC S7-300 6ES7 332-5HF00-0AB0 332-5HD01-0AB0
    • SM332 Analog I/O Module Compatible PLC S7-300 6ES7 332-5HF00-0AB0 332-5HD01-0AB0
  • SM332 Analog I/O Module Compatible PLC S7-300 6ES7 332-5HF00-0AB0 332-5HD01-0AB0

    Product Details:

    Place of Origin: Guang Dong
    Brand Name: Jetacon
    Certification: UL, CE
    Model Number: 6ES7 332-5HF00-0AB0

    Payment & Shipping Terms:

    Minimum Order Quantity: 10
    Price: Get latest price
    Packaging Details: Standard Export Carton
    Delivery Time: 7-20 working days
    Payment Terms: T/T, L/C, Paypal, Payoneer
    Supply Ability: 1KK poles monthly
    Contact Now
    Detailed Product Description

    Type Number Available :

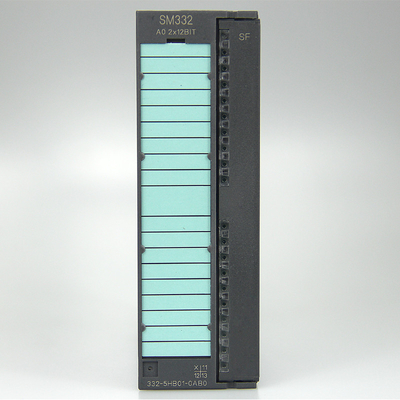

    6ES7 332-5HB01-0AB0

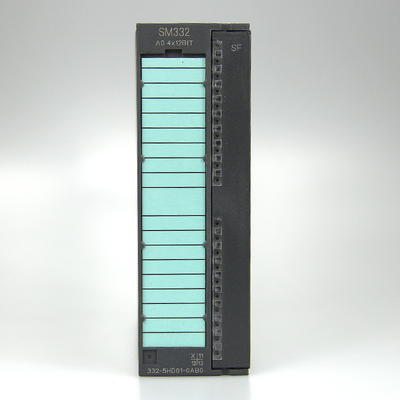

    6ES7 332-5HD01-0AB0
    6ES7 332-5HF00-0AB0

    -

    SM332 Analog I/O Module Compatible PLC S7-300 6ES7 332-5HF00-0AB0 332-5HD01-0AB0

    SM332 Analog I/O Module Compatible PLC S7-300 6ES7 332-5HF00-0AB0 332-5HD01-0AB0

    SM332 Analog I/O Module Compatible PLC S7-300 6ES7 332-5HF00-0AB0 332-5HD01-0AB0

    SM332 Analog I/O Module Compatible PLC S7-300 6ES7 332-5HF00-0AB0 332-5HD01-0AB0

    --

    Model SM332 SM332

    4AO  8AO
    Product Description 4AO; Resolution:12bits; High-accuracy 8AO; Resolution:12bits; High-accuracy

    Power consumption
    ·From bus current consumption 40mA 100mA
    ·From L+ 40mA 70mA
    ·Power loss 3W 6W
    Number of analog outputs 4 8
    Load voltage+rated value 24V 24V
    Shielded cable length,Max 200m 200m
    Voltage output, Yes Yes

    Max,short circuit Current
    Voltage output, 25mA 25mA

    Short circuit current(Max)
    Voltage output, 18V 18V

    Open-circuit current,Max
    Load impedance
    ·Voltage outputs,Min 1KΩ 1KΩ
    ·current outputs,Max 500Ω 500Ω
    Output ranges
    ·voltage ±10V,0~10V,1~5V ±10V,0~10V,1~5V
    ·current ±20mA,0~20mA,4~20mA ±20mA,0~20mA,4~20mA
    D/A resolution 12bit 12bit
    conversion time(per channel) Max:0.8ms Max:0.8ms
    Setting time
    ·Resistive loads 0.1ms 0.1ms
    ·Capacitive loads 3.3ms 3.3ms
    ·Inductive loads 0.5ms 0.5ms
    Output cross talk >40dB >40dB
    Tolerance(Over entire temperature range)
    ·Voltage output ±0.5% ±0.5%
    ·Current output ±0.6% ±0.6%
    Diagnostic interrupt None None
    Group fault error Red LED Red LED
    Isolution tested for contact
    ·Between channels and backplane bus Yes Yes
    ·Between channels and load voltage L+ Yes Yes

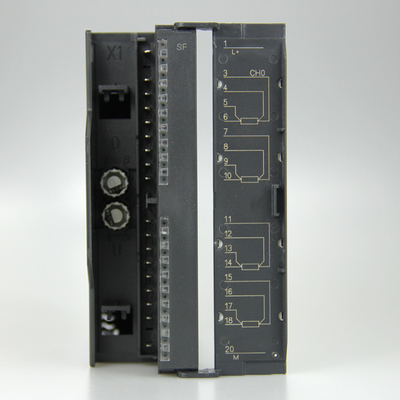

    Front connector 20-pin 40-pin
    Dimensions(W x H x D)(mm) 40×125×120 40×125×120
    Order Number SM 332-5HD01-0AB0 SM 332-5HF00-0AB0

    --
