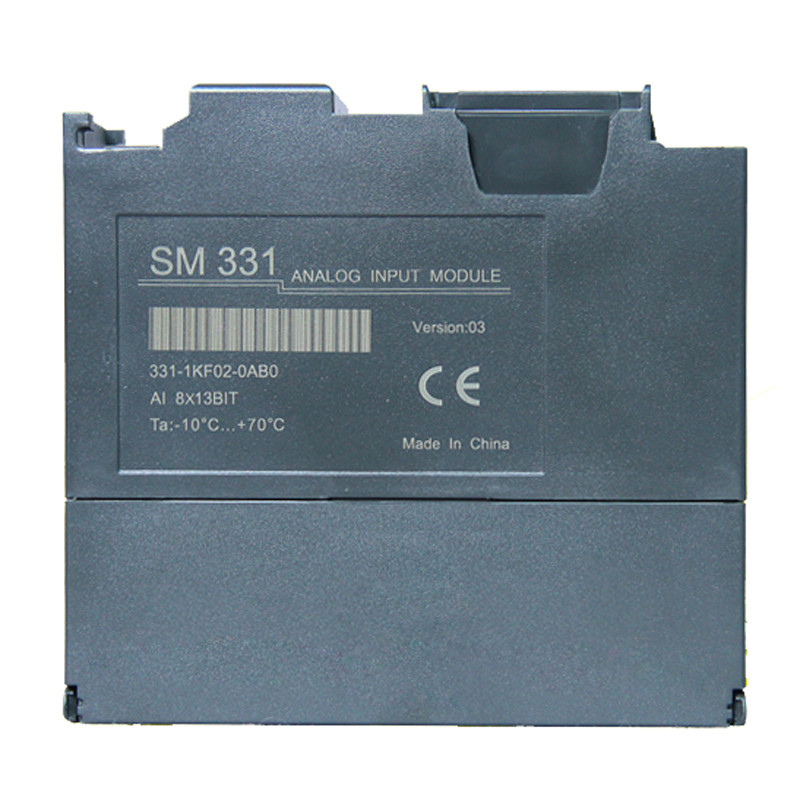

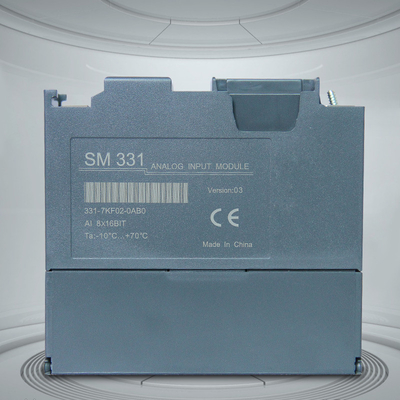

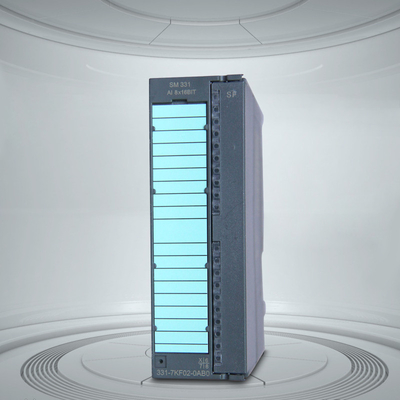

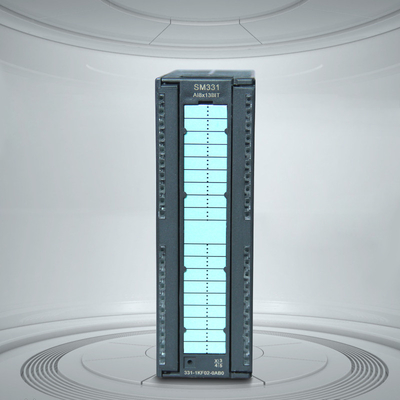

SM331 Analog I/O Module Compatible PLC S7-300 6ES7 331-1KF02-0AB0 331-7KF02-0AB0

SM331 Analog I/O Module Compatible PLC S7-300 6ES7 331-1KF02-0AB0 331-7KF02-0AB0

    • SM331 Analog I/O Module Compatible PLC S7-300 6ES7 331-1KF02-0AB0 331-7KF02-0AB0
    • SM331 Analog I/O Module Compatible PLC S7-300 6ES7 331-1KF02-0AB0 331-7KF02-0AB0
    • SM331 Analog I/O Module Compatible PLC S7-300 6ES7 331-1KF02-0AB0 331-7KF02-0AB0
    • SM331 Analog I/O Module Compatible PLC S7-300 6ES7 331-1KF02-0AB0 331-7KF02-0AB0
    • SM331 Analog I/O Module Compatible PLC S7-300 6ES7 331-1KF02-0AB0 331-7KF02-0AB0
  • SM331 Analog I/O Module Compatible PLC S7-300 6ES7 331-1KF02-0AB0 331-7KF02-0AB0

    Product Details:

    Place of Origin: Guang Dong
    Brand Name: Jetacon
    Certification: UL, CE
    Model Number: 6ES7 331-1KF02-0AB0

    Payment & Shipping Terms:

    Minimum Order Quantity: 10
    Price: Get latest price
    Packaging Details: Standard Export Carton
    Delivery Time: 7-20 working days
    Payment Terms: T/T, L/C, Paypal, Payoneer
    Supply Ability: 1KK poles monthly
    Contact Now
    Detailed Product Description

    Type Number Available :

    6ES7 331-1KF02-0AB0
    6ES7 331-7KF12-0AB0

    -

    SM331 Analog I/O Module Compatible PLC S7-300 6ES7 331-1KF02-0AB0 331-7KF02-0AB0

    SM331 Analog I/O Module Compatible PLC S7-300 6ES7 331-1KF02-0AB0 331-7KF02-0AB0

    SM331 Analog I/O Module Compatible PLC S7-300 6ES7 331-1KF02-0AB0 331-7KF02-0AB0

    SM331 Analog I/O Module Compatible PLC S7-300 6ES7 331-1KF02-0AB0 331-7KF02-0AB0

    --

    -

    Model SM331 SM331

    8AI 8AI
    Product Description 8AI; 8AI;

    voltage/current/RTD temperature measurement modules; Full-function temperature measurement modules; Resolution:16bits;

    Resolution:13bits Short-circuit protection ;High immunity;

    Optical isolation with high immunity;
    Power consumption
    ·Rate value / 24V DC
    ·From backplane bus current consumption 90mA 100mA
    ·From L+   25mA
    ·Power loss 0.4W 1W
    The power of transmitter
    ·Supply current   Per channel (Max):60mA
    ·short-circuit protection   Yes
    Number of analog inputs 8 8
    Cable Length (Shielded) Max:200m 200m Max.For 80mV:50m
    Input type and input range
    ·voltage 1~5V,0~10V,±50mV ±80mV, ±250mV,

    ±500mV, ±1V, ±5V, ±10V ±500mV,±1V, ±2.5V ±5V,1~5V, ±10V
    ·current(4wire) ±20mA, 0~20mA, 4~20mA ±3.2mA, ±10mA, ±20mA, 4~20mA
    ·current(2wire)   4~20mA
    ·tesistance 600Ω,6KΩ 600Ω, 300Ω, 150Ω,
    ·thermocouple   K,J,N,E,L
    ·RTD Pt100(-200°C-850°C) Pt100,Ni100
    A/D resolution 13bits 16bits
    Basic conversion time(per channel) 66/55ms 0.5ms/125ms/25ms/100ms
    Interference frequency suppression 50/60Hz 400/50/60/10Hz
    Tolerance(Over entire temperature range)
    ·Voltage ±0.6% ±0.6%
    ·Current ±0.6% ±0.6%
    ·resistance ±0.6% ±0.6%
    ·temperature ±1°C ±1°C
    Interrupts
    Diagnostic interrupt None Per group Yes,Configurable
    Limit-value interrupt None Yes,Configurable
    Isolation tested for contact
    ·Between channels None None
    ·Between channels and backplane bu Yes Yes
    Front connector 40-pin 20-pin
    Dimensions(WxHxD)(mm) 40×125×120 40×125×120
    Order Number SM 331-1KF01-0AB0 SM 331-7KF02-0AB0

    -

    --
