PoE Cable 15cm IP Camera Network RJ45 DC Power Port to 6 Pin Screw Terminal Blocks Adapter

PoE Cable 15cm IP Camera Network RJ45 DC Power Port to 6 Pin Screw Terminal Blocks Adapter

  • PoE Cable 15cm IP Camera Network RJ45 DC Power Port to 6 Pin Screw Terminal Blocks Adapter
  • PoE Cable 15cm IP Camera Network RJ45 DC Power Port to 6 Pin Screw Terminal Blocks Adapter
  • PoE Cable 15cm IP Camera Network RJ45 DC Power Port to 6 Pin Screw Terminal Blocks Adapter
  • PoE Cable 15cm IP Camera Network RJ45 DC Power Port to 6 Pin Screw Terminal Blocks Adapter
  • PoE Cable 15cm IP Camera Network RJ45 DC Power Port to 6 Pin Screw Terminal Blocks Adapter
  • PoE Cable 15cm IP Camera Network RJ45 DC Power Port to 6 Pin Screw Terminal Blocks Adapter
  • PoE Cable 15cm IP Camera Network RJ45 DC Power Port to 6 Pin Screw Terminal Blocks Adapter
PoE Cable 15cm IP Camera Network RJ45 DC Power Port to 6 Pin Screw Terminal Blocks Adapter
Product Details:
Place of Origin: Guang Dong
Brand Name: Jetacon
Certification: UL, CE
Model Number: RJ45-8P8C-6Pin-15cm
Payment & Shipping Terms:
Minimum Order Quantity: 50 pieces
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T, L/C, Paypal, Payoneer
Supply Ability: 1000 /Pieces per Day
Contact Now
Detailed Product Description
Type: RJ45 POE-TB-6PIN Application: Audio & Video
Gender: Male Female Color: Green

POE Cable 6 pin Screw Terminal Blocks to RJ45 Network DC Power Port

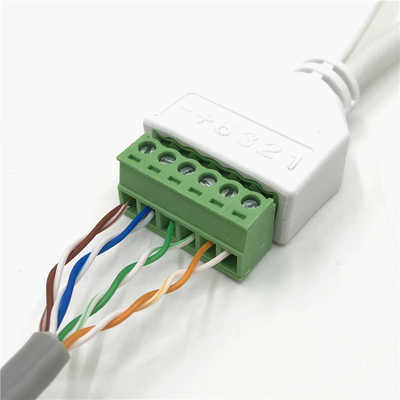

RJ45 Wiring Mode is Pin1-A + pin2-B + pin3-C + pin6-D

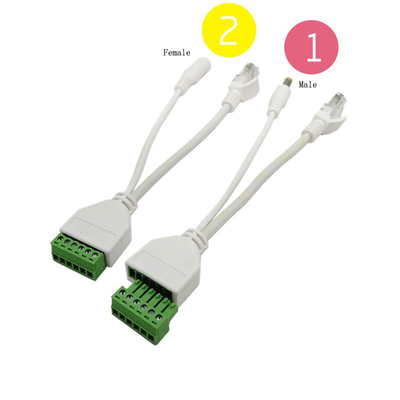

Product 1: RJ45 & DC Male to 6-pin screw terminals

Product 2: RJ45 & DC Female to 6-pin screw terminals

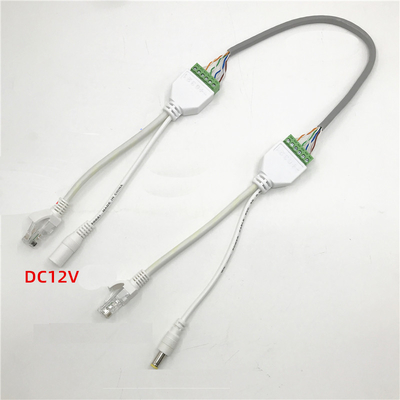

Power Source Supply: DC 12V ( Not DC 24V or DC 48V )

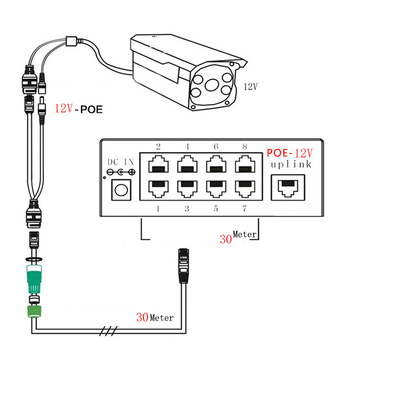

Application: Security Monitor Camera Power Over Etherne ( POE ) Wireing Connection







PoE Cable 15cm IP Camera Network RJ45 DC Power Port to 6 Pin Screw Terminal Blocks Adapter 0
PoE Cable 15cm IP Camera Network RJ45 DC Power Port to 6 Pin Screw Terminal Blocks Adapter 1
