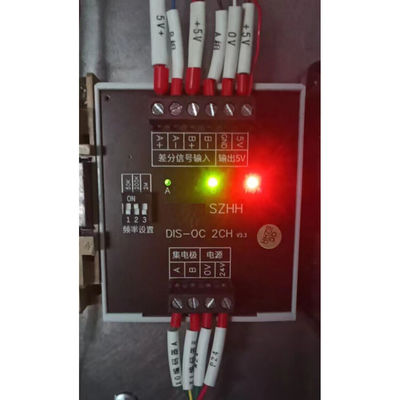

Converter 5V Encoder Signal Differential to Collector Single-ended 24v Signal Control System Operation

This module is to convert differential signals of encoders / scales to single-ended signals for PLC high-speed counters.
It also can be for NPN to PNP, or PNP to NPN level conversion. high-speed isoaltion.

specification
Input / output channels: 2 Channels or 3 Channels
Operation voltage: 24V (DC15- 30V)
Extra Supply Output 5V/100mA (can leave unconnected if no use)
Input signal type: TTL / EIA422 / 423 differential 5V
Output signal: single-ended push-pull signals 24V, NPN/PNP/HTL/TTL.
Conversion frequency 0~2MHz, response speed tpHL / tpLH=500 ns (max), Free setting.
Input current: 4-20mA
Output current: ±2.5A peak (max), suggest load current no more than 0.6A
LED indification
Screws or rail installation
Size: 66x58x31mm
Operation temp. -40 Degree ~100 Degree
RH<=90%(40c) Grade 4 anti-lighting protection
