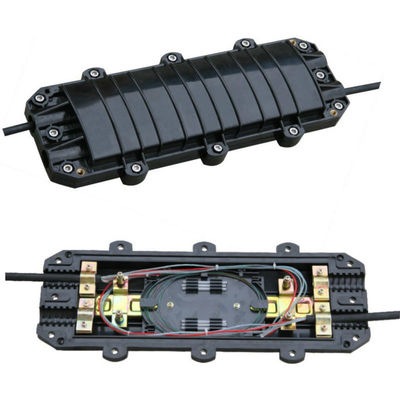

12 24 Core Horizontal Fiber Optic Cable Joint Box Splice Enclosure Waterproof IP67 2 in 2 out

12 24 Core Horizontal Fiber Optic Cable Joint Box Splice Enclosure Waterproof IP67 2 in 2 out

    • 12 24 Core Horizontal Fiber Optic Cable Joint Box Splice Enclosure Waterproof IP67 2 in 2 out
    • 12 24 Core Horizontal Fiber Optic Cable Joint Box Splice Enclosure Waterproof IP67 2 in 2 out
    • 12 24 Core Horizontal Fiber Optic Cable Joint Box Splice Enclosure Waterproof IP67 2 in 2 out
    • 12 24 Core Horizontal Fiber Optic Cable Joint Box Splice Enclosure Waterproof IP67 2 in 2 out
    • 12 24 Core Horizontal Fiber Optic Cable Joint Box Splice Enclosure Waterproof IP67 2 in 2 out
    • 12 24 Core Horizontal Fiber Optic Cable Joint Box Splice Enclosure Waterproof IP67 2 in 2 out
    • 12 24 Core Horizontal Fiber Optic Cable Joint Box Splice Enclosure Waterproof IP67 2 in 2 out
    • 12 24 Core Horizontal Fiber Optic Cable Joint Box Splice Enclosure Waterproof IP67 2 in 2 out
    • 12 24 Core Horizontal Fiber Optic Cable Joint Box Splice Enclosure Waterproof IP67 2 in 2 out
    • 12 24 Core Horizontal Fiber Optic Cable Joint Box Splice Enclosure Waterproof IP67 2 in 2 out
  • 12 24 Core Horizontal Fiber Optic Cable Joint Box Splice Enclosure Waterproof IP67 2 in 2 out

    Product Details:

    Place of Origin: Guang Dong
    Brand Name: Jetacon
    Certification: UL, CE
    Model Number: 3C-FOSC-09-14

    Payment & Shipping Terms:

    Minimum Order Quantity: 5 Pieces
    Price: Get latest price
    Packaging Details: Standard Export Carton
    Delivery Time: 5 - 7 working days
    Payment Terms: T/T, L/C, Paypal, Payoneer
    Supply Ability: 10000 Pieces / per Month
    Contact Now
    Detailed Product Description
    Material: ABS Color: Black
    Ways: 2 Entry 2 Exit

    Characteristics:

    Straight-through, branching, splitter, splicing and distribution functions
    Applications: aerial, buried and mounted in manhole
    Overlap structure in splicing tray for easy installation.
    Splice trays can be easily increased and reduced according to capacity
    Fiber-bending radium guaranteed more than 40mm.
    Stand up to severe condition of moisture,vibration and extreme temperatures.
    Mechanical seal can be reopened, which makes maintenance and capacity increasing more convenient

    Performance:

    Protection class: IP68
    Operating Temperature: -40℃-+60℃
    Storage Temperature: -40℃-+70℃
    Atmospheric pressure:70kPa-106kPa
    Pressure loss during the test: Internal pressure: 100kPa,duration: 24 hours, no pressure loss
    Crush resistance: 2000N/100mm
    Tensile strength: can bear the minimal axial load of 800N
    Bending: Can bear 10 cycles of +/-45°bending at 150N tension
    Lifetime: above 20 years
    Temperature cycling: pass

    Application :

    Be suitable for aerial, duct and direct buried application
    CATV environment
    Telecommunications
    Customer premises environments
    Carrier Networks and fiber optic networks

    -

    12 24 Core Horizontal Fiber Optic Cable Joint Box Splice Enclosure Waterproof IP67 2 in 2 out

    12 24 Core Horizontal Fiber Optic Cable Joint Box Splice Enclosure Waterproof IP67 2 in 2 out

    --

    Model Material Dimension(cm) Weight(kg) Cable entry ports Cable diameter(mm) Max. capacity of fibers
    FOSC-09-15 PC 250*190*75 2.3 2 in & 2 out φ8-φ26 288
    FOSC-09-16 PC 520*200*120 2.5 2 in & 2 out φ8-φ23 96
    FOSC-09-17 PC 520*200*180 2.8 2 in & 2 out φ8-φ23 144
    FOSC-09-18 PC 520*200*120 2.5 3 in & 3 out φ8-φ23 96
    FOSC-09-19 PC 520*200*180 2.8 3 in & 3 out φ8-φ23 96
    FOSC-09-20 PC 360*120*80 1.8 2 in & 2 out φ8-φ20 96
    FOSC-09-13 ABS 460*180*105 2.5 2 in & 2 out φ8-φ20 96
    FOSC-09-14 PC 460*180*105 2.5 2 in & 2 out φ8-φ20 96

    ---
