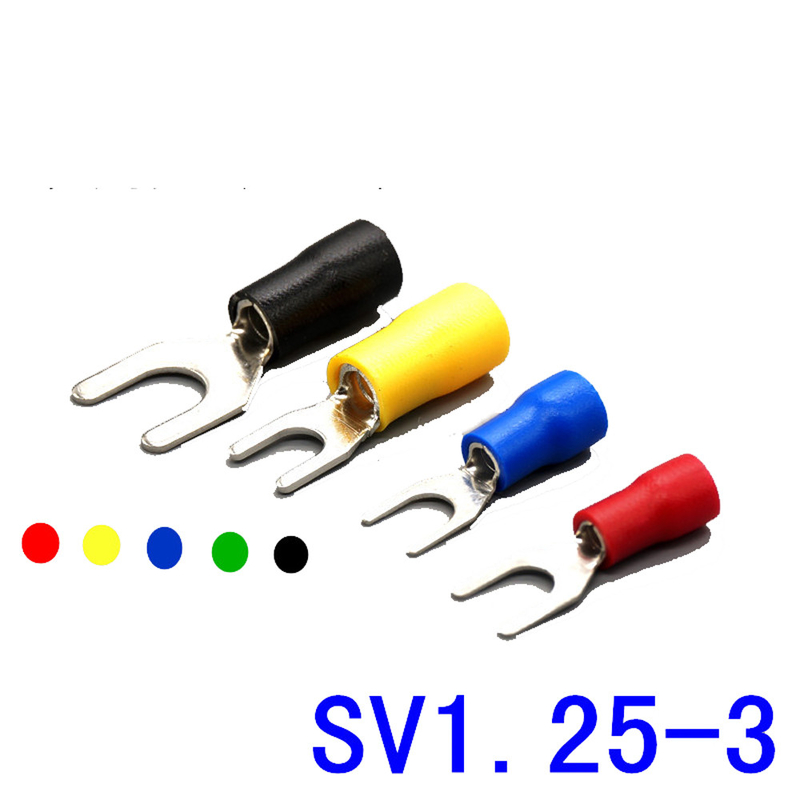

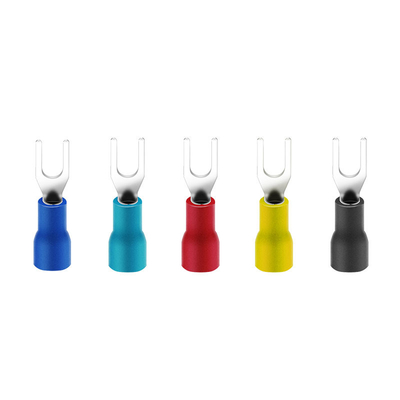

SV 1.25-3 Series Insulated Spade Crimp Terminals

SV 1.25-3 Series Insulated Spade Crimp Terminals

    • SV 1.25-3 Series Insulated Spade Crimp Terminals
    • SV 1.25-3 Series Insulated Spade Crimp Terminals
    • SV 1.25-3 Series Insulated Spade Crimp Terminals
  • SV 1.25-3 Series Insulated Spade Crimp Terminals

    Product Details:

    Place of Origin: Guang Dong
    Brand Name: Jetacon
    Certification: UL, CE
    Model Number: SV1.25

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000
    Price: Get latest price

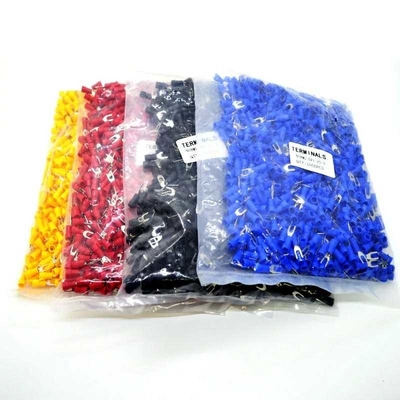

    Packaging Details: Standard Export Carton
    Delivery Time: 7-20 working days
    Payment Terms: T/T, L/C, Paypal, Payoneer
    Supply Ability: 1KK poles monthly
    Contact Now
    Detailed Product Description
    Type: Spade Terminal

    Specifications

    1.Material:copper and PVC
    2.Plating:Tin
    3.Certificates: ROHS
    4.OEM/ODM
    5.Various wire range



    Crimp terminal, cable plug, cable connector,  SV Insulated Spade Crimp Terminal



    1.Material:copper and PVC
    2.Plating:Tin
    3.Certificates: ISO.ROHS
    4.OEM/ODM
    5.Various wire range

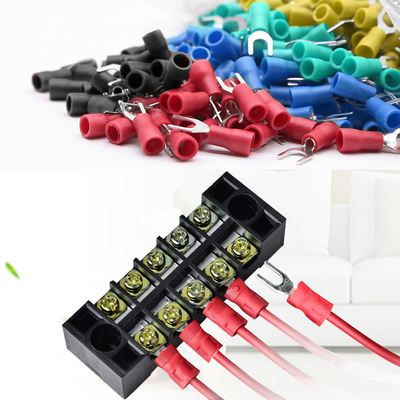

    1) Application: According to US, JP, German standard, widely used in machinery, spinning, electric power, ailway, shipbuilding, spaceflight & avition, light industry, household electrical, computers, auto-equipment and etc.

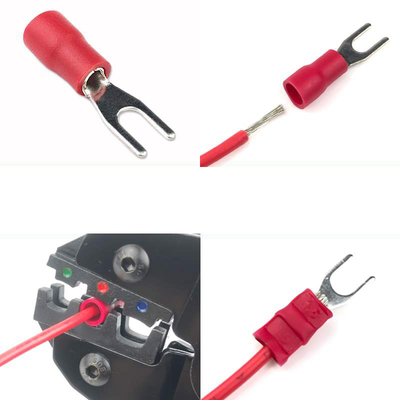

    2) Processing: Cold press



    3) Material: T2 copper with tinned surface, cridible conductivity; PVC insulation cover, no break or rebound.



    4) Certificate: ISO9001-2008



    5) Manufacturer: price advantage, quick delivery

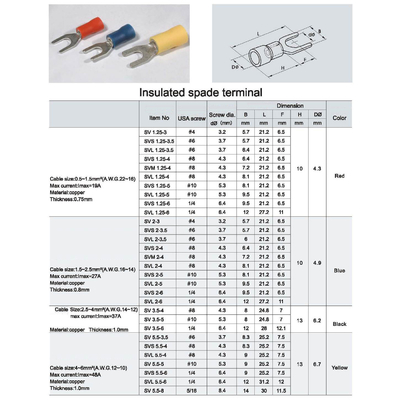

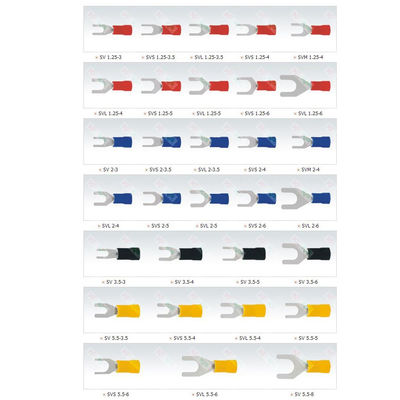

    SV 1.25-3 Series Insulated Spade Crimp Terminals

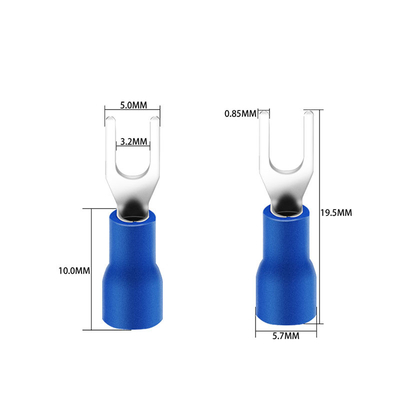

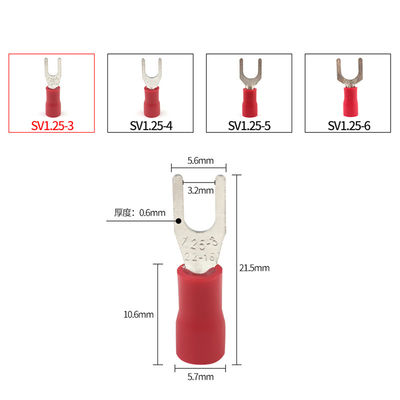

    Cable size:0.5~1.5mm²(A.W.G.22-16)   Max current:Imax=19A Material: purple copper Thickness:0.75mm
    No. Item No. Dimension Color
    US system of bolts Screw dia. D2(mm) B(mm) L(mm) F(mm) H (mm) D (mm)
    1 SV1.25-3.2 #4 3.2 5.7 21.2 6.5 10.0 4.3 Red
    2 SVS1.25-3.7 #6 3.7 5.7 21.2 6.5
    3 SVL1.25-3.7 #6 3.7 6.4 21.2 6.5
    4 SV1.25-4S #8 4.3 6.4 21.2 6.5
    5 SVM1.25-4 #8 4.3 7.2 21.2 6.5
    6 SVL1.25-4 #8 4.3 8.1 21.2 6.5
    7 SVS1.25-5 #10 5.3 8.1 21.2 6.5
    8 SVL1.25-5 #10 5.3 9.5 21.2 6.5
    9 SVS1.25-6 1/4 6.5 9.5 21.2 6.5
    10 SVL1.25-6 1/4 6.5 12.0 27.2 11.0
    Cable size:1.5~2.5mm²(A.W.G.16-14)   Max current:Imax=27A Material: purple copper Thickness:0.8mm
    No. Item No. Dimension Color
    US system of bolts Screw dia. D2(mm) B(mm) L(mm) F(mm) H (mm) D (mm)
    11 SV2-3.2 #4 3.2 5.7 21.2 6.5 10.0 4.9 blue
    12 SVS2-3.7 #6 3.7 5.7 21.2 6.5
    13 SVL2-3.7 #6 3.7 6.0 21.2 6.5
    14 SVS2-4 #8 4.3 6.4 21.2 6.5
    15 SVM2-4 #8 4.3 7.2 21.2 6.5
    16 SVL2-4 #8 4.3 8.1 21.2 6.5
    17 SVS2-5 #10 5.3 8.1 21.2 6.5
    18 SVL2-5 #10 5.3 9.5 21.2 6.5
    19 SVS2-6 1/4 6.5 9.5 21.2 6.5
    20 SVL2-6 1/4 6.5 12.0 27.2 11.0
    Cable size:2.5~4mm²(A.W.G.14-12)   Max current:Imax=37A Material: purple copper Thickness:1.0mm
    No. Item No. Dimension Color
    US system of bolts Screw dia. D2(mm) B(mm) L(mm) F(mm) H (mm) D (mm)
    21 SV3.5-4 #8 4.3 8.0 24.8 7.0 12.5 6.2 black
    22 SV3.5-5 #10 5.3 8.0 24.8 7.0
    23 SV3.5-6 1/4 6.5 12.0 28.0 12.1
    Cable size:4~6mm²(A.W.G.12-10)   Max current:Imax=48A Material: purple copper Thickness:1.0mm
    No. Item No. Dimension Color
    US system of bolts Screw dia. D2(mm) B(mm) L(mm) F(mm) H (mm) D (mm)
    24 SV5.5-3.5 #6 3.7 8.3 25.2 7.5 12.5 6.7 yellow
    25 SVS5.5-4 #8 4.3 8.3 25.2 7.5
    26 SVL5.5-4 #8 4.3 9.0 23.9 7.5
    27 SV5.5-5 #10 5.3 9.0 23.9 7.5
    28 SVS5.5-6 1/4 6.5 9.0 23.9 7.5
    29 SVL5.5-6 1/4 6.5 12.0 31.2 12.0
    30 SV5.5-8 5/16 8.4 14.0 30.0 11.5
