1. Make Encoder differential signal to the open collector signal output, 3 Channels, electrical isolation between input and output.
2. Working frequency: 2000000Hz
3. The signal output mode: push-pull output
4. Installation: DIN35mm rail mounting,convenient and quick
5. Product Size: 105mm x 87mm x 35mm around
6. Rated Working Power Voltage: DC5V
7.Signals Input A+/A-/B-/B+/Z+/Z- TTL / RS232 Signal 5V DC
8.Signals Output A/B/Z HTL Signal 5V
1. servo driver A B Z signal output to the collector , input to the PLC high-speed counter interface.
2. the differential encoder output signal to the collector output signal, input to the PLC high-speed counter interface.

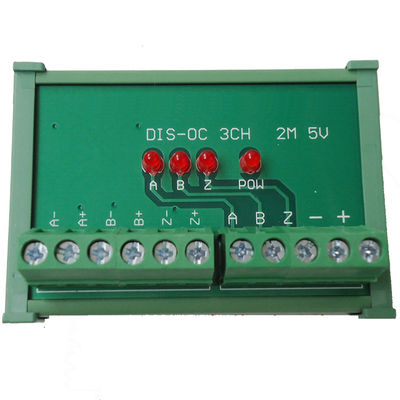

1 * 3-Way Differential to collector
Note: some times the item is from customized products, the actual product will have some minor difference from
the photo, thanks.
