Name: 150cm Female DB9 Cable to CAN LIN Bus Interface Adapter For VECTOR PCAN CAN Bus Monitor
Brand: Jetacon
SKU: DB9-CAN LIN Cable 150cm
Price: 14.99 USD
Availability: InStock
Rating: 4.5 (114 reviews)

Home Products Connectors Cable Assembly

150cm Female DB9 Cable to CAN LIN Bus Interface Adapter For VECTOR PCAN CAN Bus Monitor

Product Details:

Place of Origin:	Guang Dong
Brand Name:	Jetacon
Certification:	UL, CE
Model Number:	DB9-CAN LIN Cable 150cm

Payment & Shipping Terms:

Minimum Order Quantity:	2 pieces
Price:	US $14.99/ piece
Packaging Details:	Standard Export Carton
Delivery Time:	7-20 working days
Payment Terms:	T/T, L/C, Paypal, Payoneer
Supply Ability:	1KK poles monthly

Contact Now

Detailed Product Description

Length:	150cm	Application:	CAN LIN Data Analysis
Gender:	Female

Female DB9 (Pin-2, Pin-7) to CAN LIN Bus Interface Adapter with Cable 150cm

Screw terminal blocks: 3.81mm Pitch, Wiring Gauge: 22-18AWG, 5 Amps current

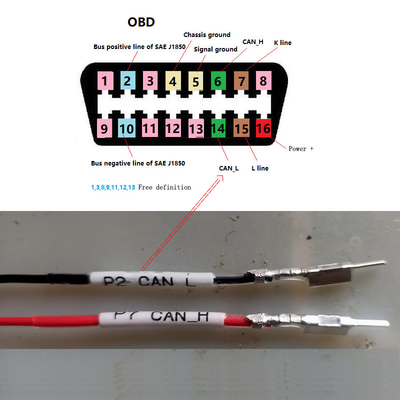

DB9 9 Pin Wiring Diagram:

It is aslo complied to PCAN KVASRE Monitor Interface Port

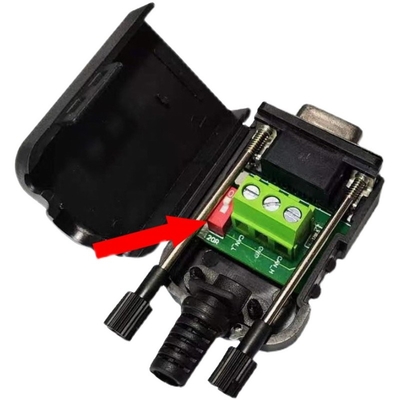

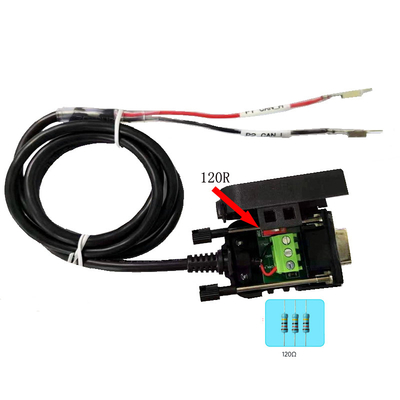

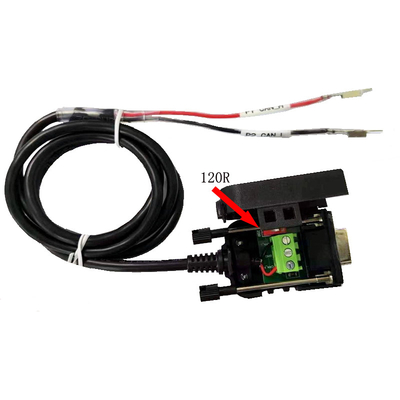

120 Ohm resistance designed with toggle switch

150cm Female DB9 Cable to CAN LIN Bus Interface Adapter For VECTOR PCAN CAN Bus Monitor 0

150cm Female DB9 Cable to CAN LIN Bus Interface Adapter For VECTOR PCAN CAN Bus Monitor 1

150cm Female DB9 Cable to CAN LIN Bus Interface Adapter For VECTOR PCAN CAN Bus Monitor 2

CAN bus (Controller Area Network)
It is a standard bus interface used in most vehicles where the board computer communicates with separate control ECUs taking care of the engine, gearbox, climate, security alarm, and safety bags.
LIN bus (Local Interconnect Network)
It is developed as a complementally bus standard to the Controller Area Network (CAN bus) to address the need for a cost-efficient network for lower performance devices within the vehicle. While the CAN network was already in place within vehicles, its high bandwidth and advanced error detection capabilities were overkill (and thus, cost-prohibitive) for lower performance applications such as seat and window controllers.
