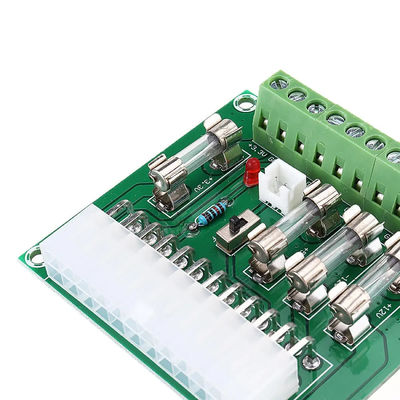

Computer ATX DC Power Supply Distribution Terminal Blocks Breakout Board +3.3V +5V -12V +12V +5V

Computer ATX DC Power Supply Distribution Terminal Blocks Breakout Board +3.3V +5V -12V +12V +5V

    • Computer ATX DC Power Supply Distribution Terminal Blocks Breakout Board +3.3V +5V -12V +12V +5V
    • Computer ATX DC Power Supply Distribution Terminal Blocks Breakout Board +3.3V +5V -12V +12V +5V
    • Computer ATX DC Power Supply Distribution Terminal Blocks Breakout Board +3.3V +5V -12V +12V +5V
    • Computer ATX DC Power Supply Distribution Terminal Blocks Breakout Board +3.3V +5V -12V +12V +5V
    • Computer ATX DC Power Supply Distribution Terminal Blocks Breakout Board +3.3V +5V -12V +12V +5V
    • Computer ATX DC Power Supply Distribution Terminal Blocks Breakout Board +3.3V +5V -12V +12V +5V
    • Computer ATX DC Power Supply Distribution Terminal Blocks Breakout Board +3.3V +5V -12V +12V +5V
  • Computer ATX DC Power Supply Distribution Terminal Blocks Breakout Board +3.3V +5V -12V +12V +5V

    Product Details:

    Place of Origin: Guang Dong
    Brand Name: Jetacon
    Certification: CE
    Model Number: ZJ-024_ATX

    Payment & Shipping Terms:

    Minimum Order Quantity: 2 pieces
    Price: US $6.99 / Piece
    Packaging Details: Standard Export Carton
    Delivery Time: 7-20 working days
    Payment Terms: T/T, L/C, Paypal, Payoneer
    Supply Ability: 1000ea monthly
    Contact Now
    Detailed Product Description
    Number Of Contacts: 20 - 24 Conductor Size: 11 - 20 AWG
    Type: Screw

    Feature:

    Output voltage: +3.3V +5V -12V +12V +5V
    Control mode: toggle switch or second switch.
    The second switch: can be used for front panel, two pins shorted to open the power.
    Supported voltage: +5vsb is the standby power supply, the power supply is available, can be used for standby control circuit.
    Application: Applicable to some of our power amplifier boards, other electronic equipment, etc.



    24-pins Standard ATX Connector, support 20 / 20+4 / 24 pins wire header.



    Stand-By and Power-ON indicator LEDs.
    Having latching button switch to control power ON/OFF.
    High quality 24Amp(per position) screw terminal blocks.

    Terminal Blocks :
    Pitch 5.0mm/0.197"
    Wire range 26AWG ~ 12AWG / 2.5mm2
    Rated voltage 400V, rated current 24Amp.
    Strip length 7mm.
    Screws - M3,steel,Cr3+ Zn plated.
    Pin header and Cage - Brass.


    Note: some times the item is from customized products, the actual productwill have some minor difference from the photo, thanks.
