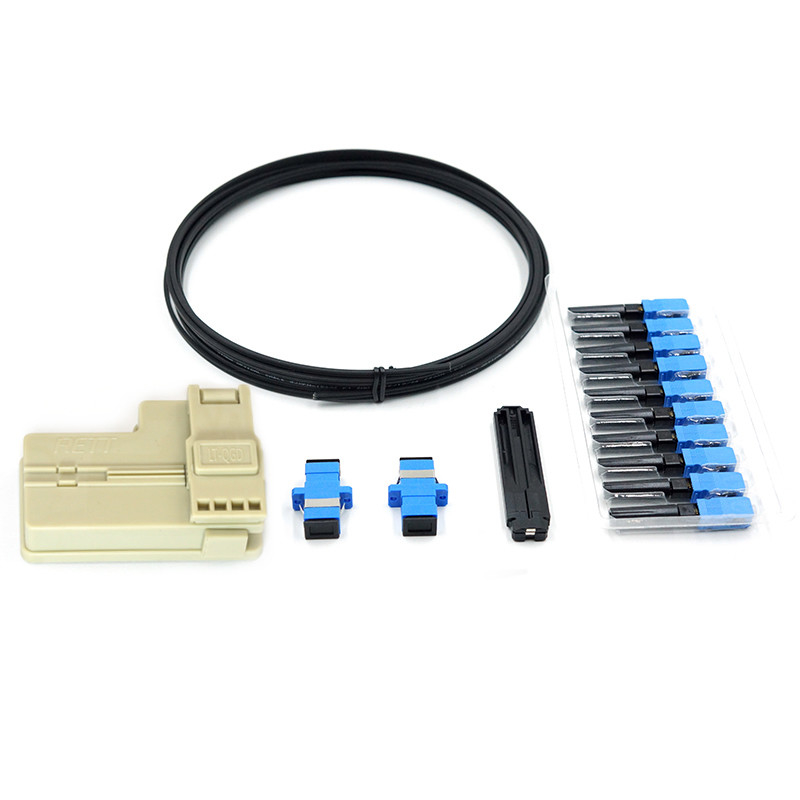

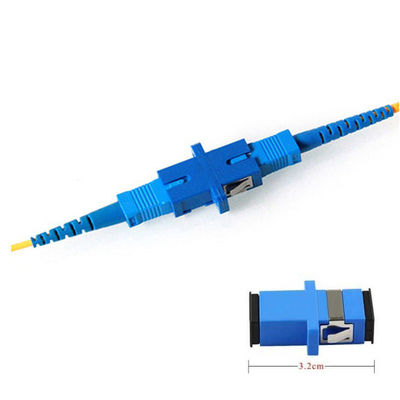

Fiber Optic SC Connector Quick Assembly Set with 5 meters Outdoor Drop Cable Kit

Fiber Optic SC Connector Quick Assembly Set with 5 meters Outdoor Drop Cable Kit

    • Fiber Optic SC Connector Quick Assembly Set with 5 meters Outdoor Drop Cable Kit
    • Fiber Optic SC Connector Quick Assembly Set with 5 meters Outdoor Drop Cable Kit
    • Fiber Optic SC Connector Quick Assembly Set with 5 meters Outdoor Drop Cable Kit
    • Fiber Optic SC Connector Quick Assembly Set with 5 meters Outdoor Drop Cable Kit
    • Fiber Optic SC Connector Quick Assembly Set with 5 meters Outdoor Drop Cable Kit
    • Fiber Optic SC Connector Quick Assembly Set with 5 meters Outdoor Drop Cable Kit
    • Fiber Optic SC Connector Quick Assembly Set with 5 meters Outdoor Drop Cable Kit
    • Fiber Optic SC Connector Quick Assembly Set with 5 meters Outdoor Drop Cable Kit
    • Fiber Optic SC Connector Quick Assembly Set with 5 meters Outdoor Drop Cable Kit
  • Fiber Optic SC Connector Quick Assembly Set with 5 meters Outdoor Drop Cable Kit

    Product Details:

    Place of Origin: Guang Dong
    Brand Name: Jetacon
    Certification: UL, CE
    Model Number: ODF-UT12 24 48 144-SC/FC

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Pieces
    Price: US $15.99 / Piece
    Packaging Details: Standard Export Carton
    Delivery Time: 5 - 7 working days
    Payment Terms: T/T, L/C, Paypal, Payoneer
    Supply Ability: 10000 Pieces / per Month
    Contact Now
    Detailed Product Description
    Material: Plastic Color: Blue
    SC Connector: 10 Units

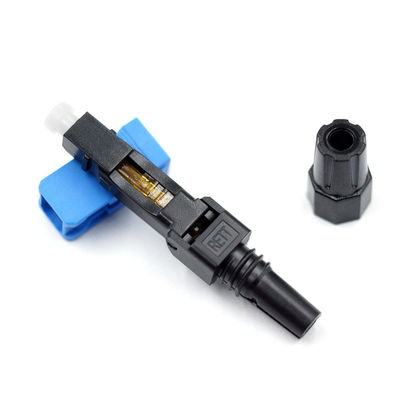

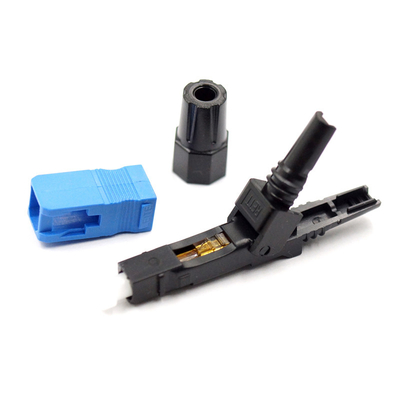

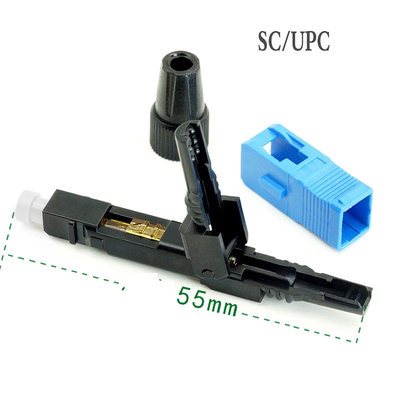

    SC UPC Cold connector Specifications:

    Optical fiber diameter 125μm ( 657A & 657B )
    Tight buffer diameter 250μm
    Fiber mode Single mode
    Operation time About 100s(no fiber cut)
    Insert loss ≤ 0.3dB(1310nm & 1550nm)
    Return loss ≥40dB
    Fastening strength of naked fiber >5 N
    Fastening strength of naked fiber holder >10 N
    Tensile strength >50 N
    Using temperature -40~+80°C
    On-line tensile strength (20 N) IL ≤ 0.2dB RL ≤ 5dB
    Mechanical durability (500 times) IL ≤ 0.2dB RL ≤ 5dB



    Drop Cable Technical Parameters



    Environment temperature: -5 ~+45°C
    Relatively humidity:≤85% (+30°C)
    Atmospheric pressure:70~166 KPa
    Connector attenuation (Interchangeable and repeat): ≤0.5dB
    Insertion loss: ≤ 0.3dB
    Return loss: APC ≥ 60dB; UPC ≥ 50dB; PC ≥ 45dB
    Pressure between high voltage protection place and distribution frame: ≥ 3000V (DC), 1min no breakdown, no arc
    Isolation resistance between high voltage protection place and distribution frame: ≥ 100MΩ/ 500V (DC)
    By cascading 12 port splice integration module, configurable 12-144 core, 12 core per tray

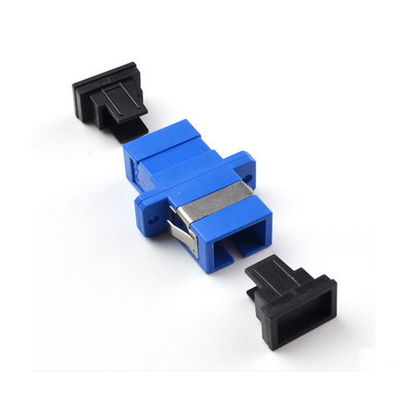

    Clamping FC/SC/ST/LC adapter, the adapter was 30 degrees arrangement, ensure the jumping fiber bending radius≥40mm, but also can avoid the laser burns eyes.
