| Place of Origin: | Guang Dong |
| Brand Name: | Jetacon |
| Certification: | UL, CE |
| Model Number: | ODF-UT12 24 48 144-SC/FC |
| Minimum Order Quantity: | 1 Pieces |
|---|---|
| Price: | Get latest price |
| Packaging Details: | Standard Export Carton |
| Delivery Time: | 5 - 7 working days |
| Payment Terms: | T/T, L/C, Paypal, Payoneer |
| Supply Ability: | 10000 Pieces / per Month |
| Material: | Galvanized Steel | Color: | Gray |
|---|---|---|---|

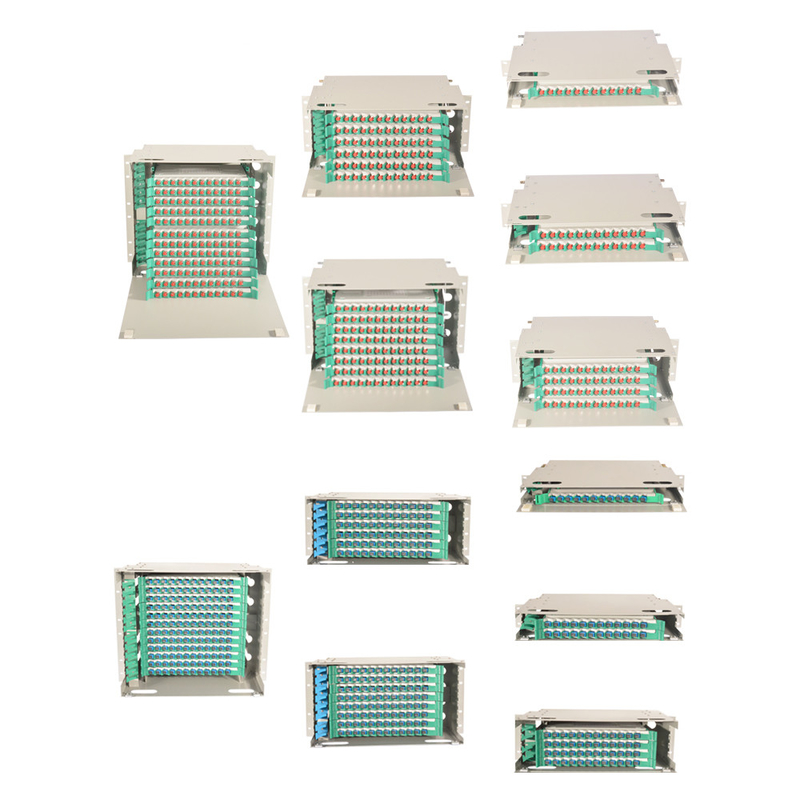

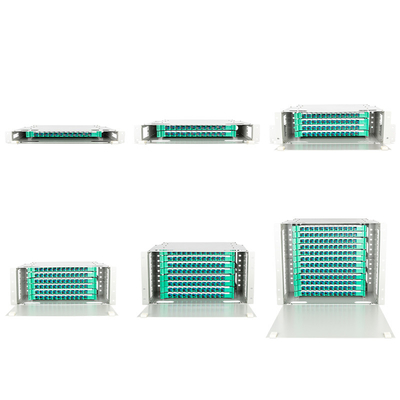

| Numbers: | 1U 2U 3U |
Technical Parameters
Environment temperature: -5 ~+45°C
Relatively humidity:≤85% (+30°C)
Atmospheric pressure:70~166 KPa
Connector attenuation (Interchangeable and repeat): ≤0.5dB
Insertion loss: ≤ 0.3dB
Return loss: APC ≥ 60dB; UPC ≥ 50dB; PC ≥ 45dB
Pressure between high voltage protection place and distribution frame: ≥ 3000V (DC), 1min no breakdown, no arc
Isolation resistance between high voltage protection place and distribution frame: ≥ 100MΩ/ 500V (DC)

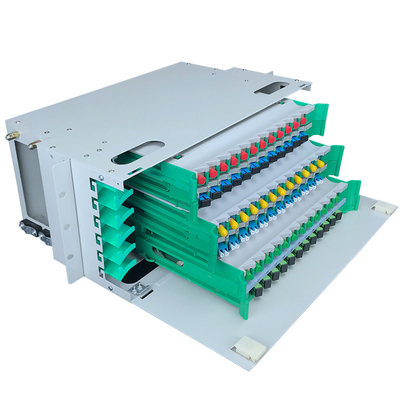

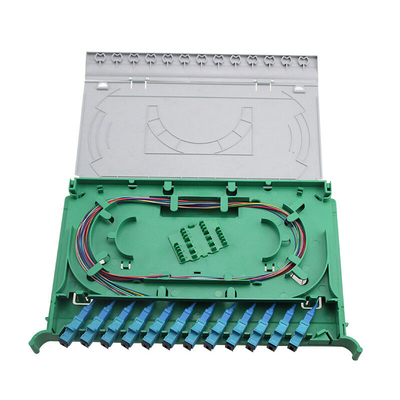

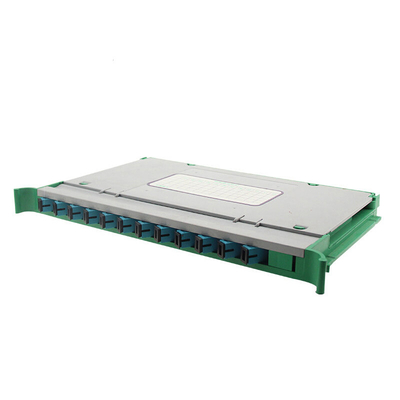

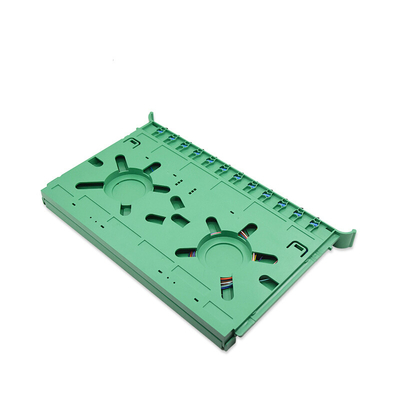

By cascading 12 port splice integration module, configurable 12-144 core, 12 core per tray
Clamping FC/SC/ST/LC adapter, the adapter was 30 degrees arrangement, ensure the jumping fiber bending radius≥40mm, but also can avoid the laser burns eyes.
Structure features
Made of high quality cold-rolled plate and the surface electrostatic spray, beautiful appearance
The downward and the side door use imported lock
The bar adapter panel can be installed adapters like: FC, SC, ST, LC,etc

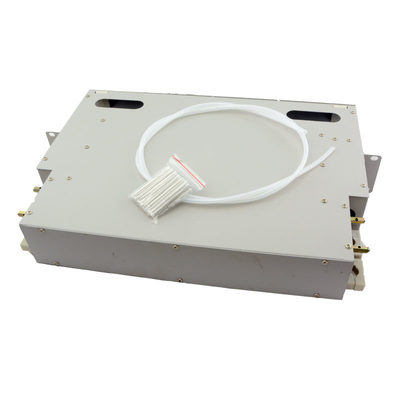

Configure reinforced core and cable fixed seat,complete accessories
--

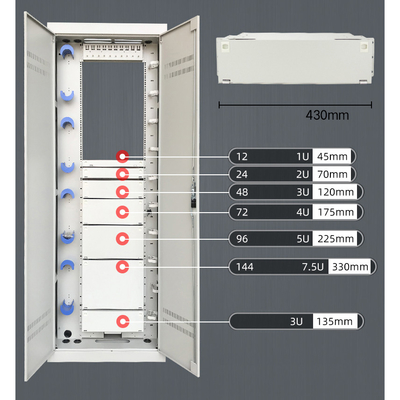

| Capacity | Spare parts | Size / mm | Net weight / kg |
| 12 core | Splice tray, sleeve, buffer tube | 485*300*50 | 3.9 |
| 24 core | Splice tray, sleeve, buffer tube | 485*300*75 | 4.7 |
| 48 coe | Splice tray, sleeve, buffer tube | 485*300*140 | 6.9 |
| 96 core | Splice tray, sleeve, buffer tube | 485*300*252 | 11 |
--
