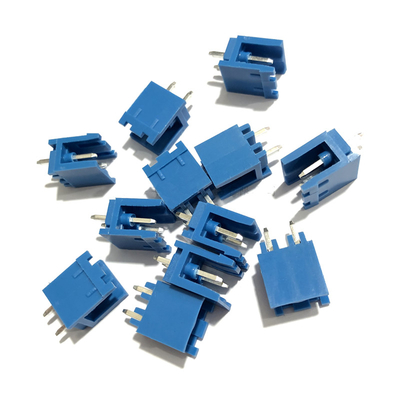

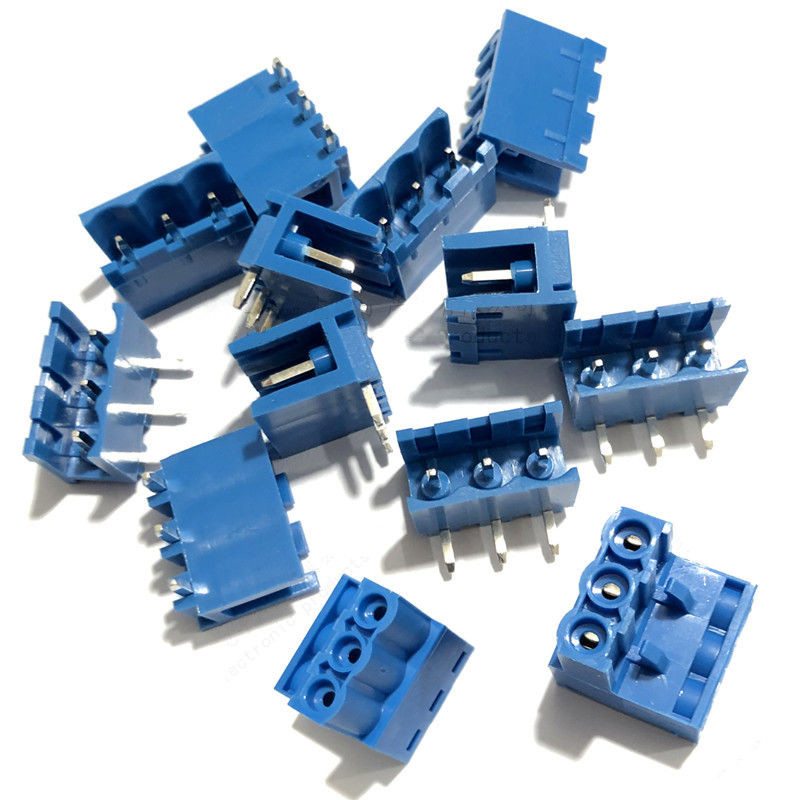

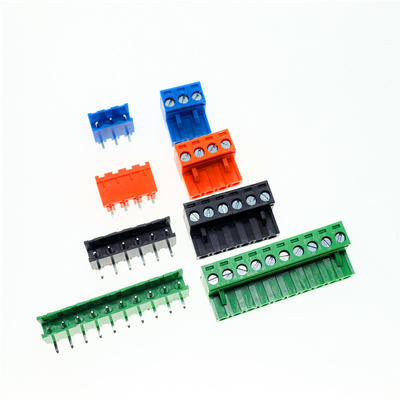

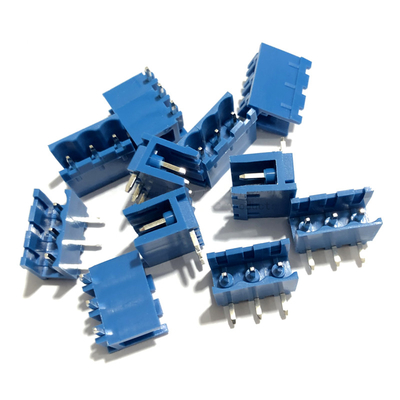

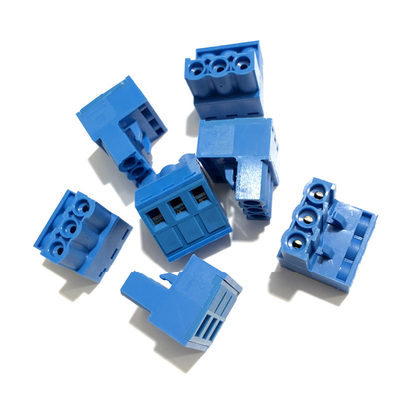

Name: Blue 5.08mm Spacing PCB Pluggable Screw Terminal Blocks Plug + Right Angle Pin Header
Brand: Jetacon
SKU: EC201-02-5.08 / EC601RK-5.08 Blue
Price: 1.00 USD
Availability: InStock
Rating: 4.9 (143 reviews)

Home Products Pluggable Terminal Blocks

Blue 5.08mm Spacing PCB Pluggable Screw Terminal Blocks Plug + Right Angle Pin Header

Product Details:

Place of Origin:	Guang Dong
Brand Name:	Jetacon
Certification:	UL, CE
Model Number:	EC201-02-5.08 / EC601RK-5.08 Blue

Payment & Shipping Terms:

Minimum Order Quantity:	50 pieces
Price:	Get latest price
Packaging Details:	Standard Export Carton
Delivery Time:	7-20 working days
Payment Terms:	T/T, L/C, Paypal, Payoneer
Supply Ability:	1KK poles monthly

Contact Now

Detailed Product Description

Rated Voltage:	300V	Rated Current:	10A
Type:	Plug With Socket	Grounding:	Non-Grounding
Application:	Industrial

Specifications:

Condition: Brand New

Certification: CE, Rohs

Pitch: 5.08mm

Poles: 2 Pins to 20 pins

Color:Green

Torque: 0.2Nm

Strip length: 5-6mm

Rated voltage: 300V

Rated current: 10A

Insulation resistance: 5000MΩ/1000V

Contact resistance: 20mΩ

Withstanding voltage: 2000V/1min

Wire range: 28~16AWG

Note:

The terminal blocks are in stock from 2 poles to 20 poles
