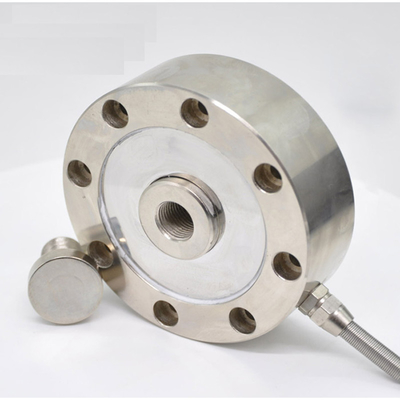

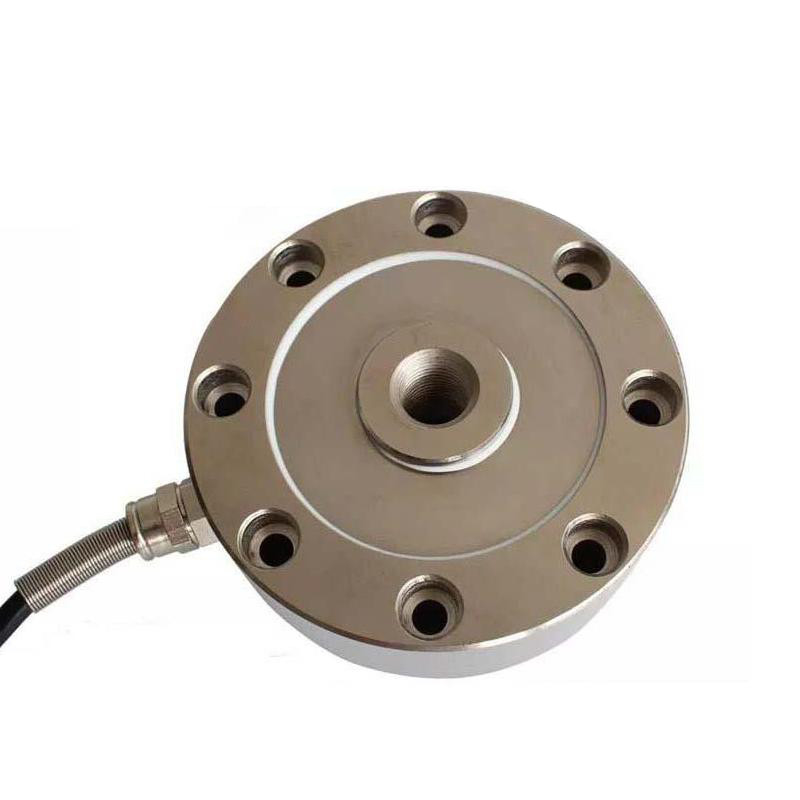

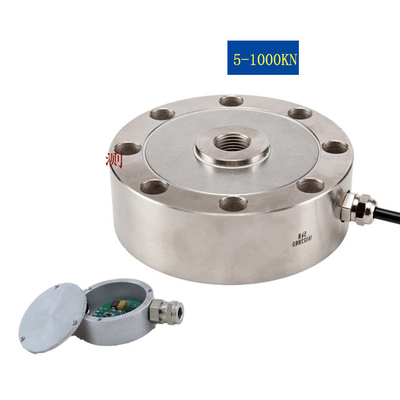

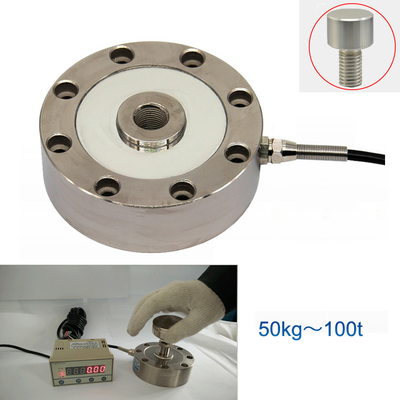

Spoke Type Universal Pancake Load Cell Sensor 5 Ton 10 Ton 30 Ton

Spoke Type Universal Pancake Load Cell Sensor 5 Ton 10 Ton 30 Ton

    • Spoke Type Universal Pancake Load Cell Sensor 5 Ton 10 Ton 30 Ton
    • Spoke Type Universal Pancake Load Cell Sensor 5 Ton 10 Ton 30 Ton
    • Spoke Type Universal Pancake Load Cell Sensor 5 Ton 10 Ton 30 Ton
    • Spoke Type Universal Pancake Load Cell Sensor 5 Ton 10 Ton 30 Ton
    • Spoke Type Universal Pancake Load Cell Sensor 5 Ton 10 Ton 30 Ton
  • Spoke Type Universal Pancake Load Cell Sensor 5 Ton 10 Ton 30 Ton

    Product Details:

    Place of Origin: China Mainland
    Brand Name: OEM
    Certification: CE
    Model Number: YZC-Load Cell

    Payment & Shipping Terms:

    Minimum Order Quantity: 5 Pieces
    Price: US $49.99

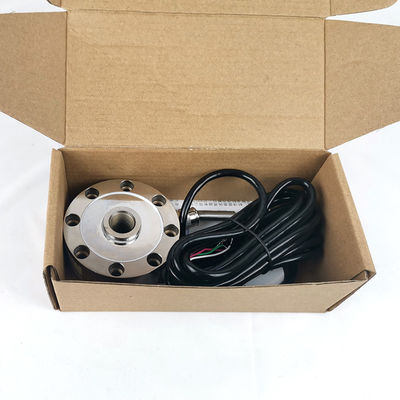

    Packaging Details: Standard Export Carton
    Delivery Time: 7-15 days
    Payment Terms: T/T, L/C, Paypal, Payoneer
    Supply Ability: 100 /Pieces per Day
    Contact Now
    Detailed Product Description
    Material: Stainless Steel Waterproof: IP65
    Application: Weighing Sensor Zero Output: ± 0.2 MV / V
    Capacity: 3000N 5000N 10000N 20000N

    Features & Applications:

    Tension and compression load cell with metal foil strain gauge technology and over load protection, made of stainless steel

    Mainly used for pull and push dynamometer, hopper scale and industrial measuring systems.
    Capacity : 5N, 10N, 20N, 50N, 100N, 200N, 300N,500N, 1000N, 2000N



    Parameters:

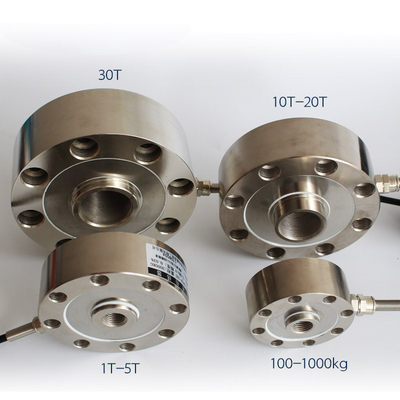

    Capacity 1~100t
    Comprehensive precision 0.05% F·S
    Sensitivity 2.0 MV/V
    Creep ±0.05%F·S/30min
    Zero output ±1 %F·S
    zero temperature ±0.05 %F·S/10℃
    Output temperature ±0.05%F·S/10℃
    Working temperature -20℃~+65℃
    Input impedance 380±10Ω or 750±15Ω
    Output impedance 350±3Ω or 700±5 Ω
    Insulation resistance > 5000 MΩ
    Safety overload 150% F·S
    Bridge voltage Advise 10VDC
    Material Alloy steel

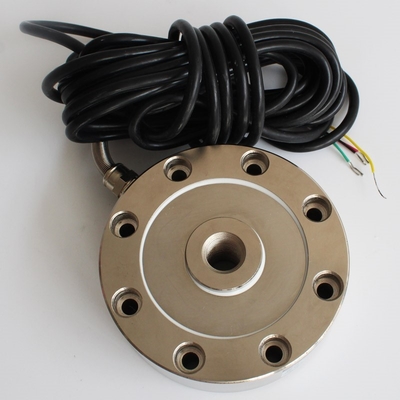

    Connection type Input(+):red input(-):black
    Output(+):green output(-):white



    Q:What are the applications of spoke type load cell?
    A: Belt scale, batching scale, cement mixing plant, reaction kettle weighing system, tank weighing system, silo scale, etc.

    Q:What is the raw material?
    A: Alloy steel

    Q: What is the load range?
    A: 1-470T

    Q: What is the accuracy/precision?
    A: C2 0.03% and C3 0.02%

    Q: How to install?

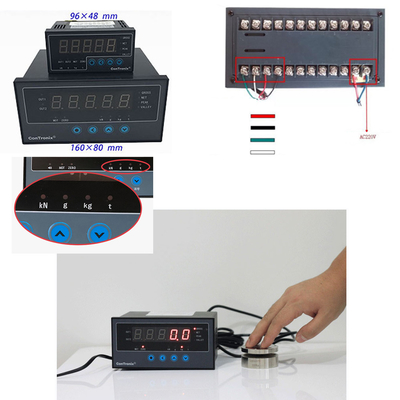

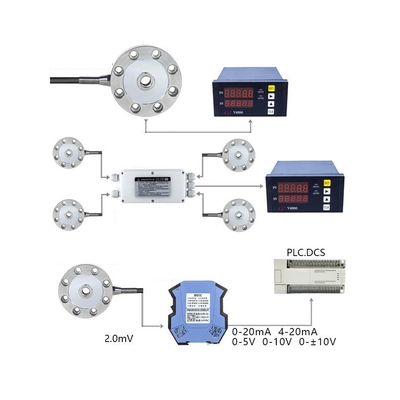

    A: Install them under the tank, then connect all the load cells with junction box and connect junction box with controller indicator or display indicator
