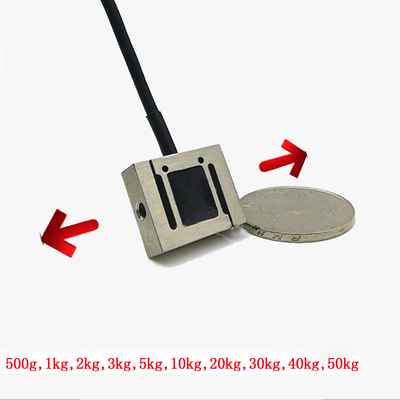

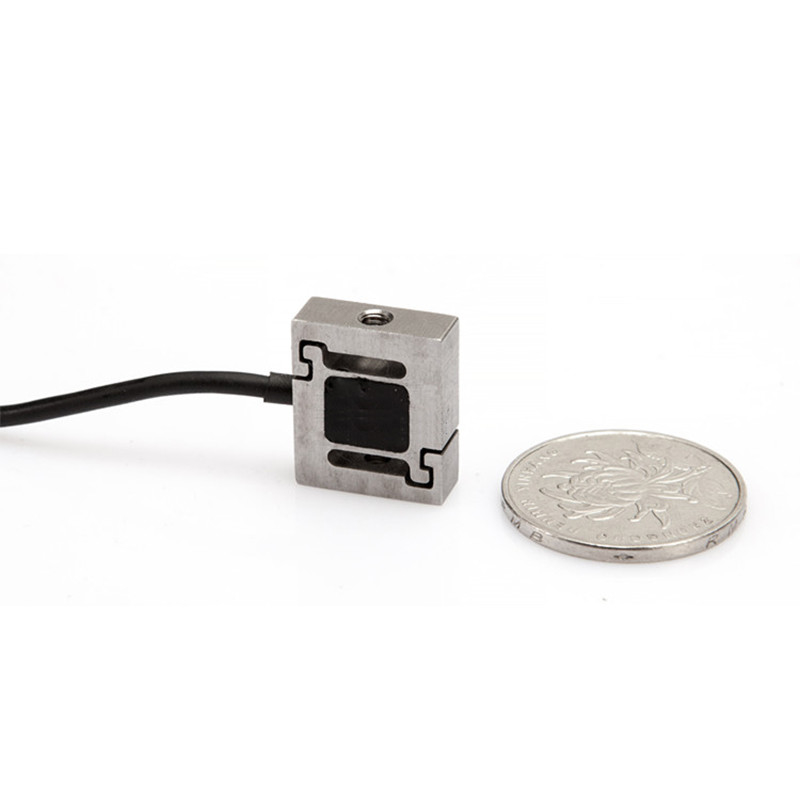

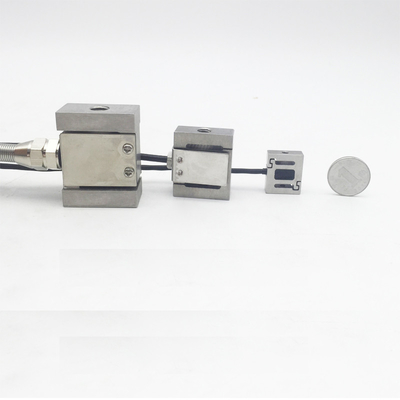

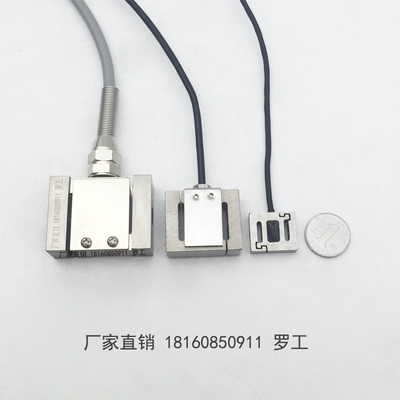

High Precision Stainless Steel Mini S type Load Cell Pull Force Sensor  5N 10N 20N 50N 100N 200N 300N 500N 1000N 2000N
Product Details:
Place of Origin: China Mainland
Brand Name: OEM
Certification: CE
Model Number: YZC-Load Cell
Payment & Shipping Terms:
Minimum Order Quantity: 5 Pieces
Price: US $49.99
Packaging Details: Standard Export Carton
Delivery Time: 7-15 days
Payment Terms: T/T, L/C, Paypal, Payoneer
Supply Ability: 100 /Pieces per Day
Contact Now
Detailed Product Description
Material: Stainless Steel Waterproof: IP65
Application: Weighing Sensor Zero Output: ± 0.2 MV / V
Capacity: 5N 10N 20N 50N 100N 200N 300N 500N 1000N 2000N

Features & Applications:

Tension and compression load cell with metal foil strain gauge technology and over load protection, made of stainless steel

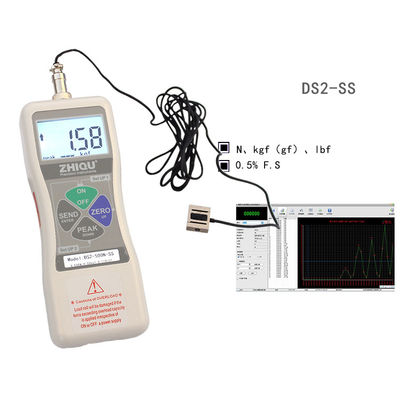

Mainly used for pull and push dynamometer, hopper scale and industrial measuring systems.
Capacity : 5N, 10N, 20N, 50N, 100N, 200N, 300N,500N, 1000N, 2000N

Parameters:

Capacity 0-5N~2000N Material Stainless Steel
Rated output 2.0 ±10% mV/V Output Impedance 350±3Ω
Non-linearity 0.05 % F.S. Insulation >5000MΩ/10VDC
Hysteresis 0.05 % F.S. Recommended Excitation 2.5-5V
Repeatability 0.05 % F.S. Excitation max 10V
Creep(30min) 0.05 % F.S. Compensated Temp Range -10~60
Temp Effect On Output 0.1 % F.S./ 10 Operating Temp Range -20~80
Temp Effect On Zero 0.1 % F.S./ 10 Safe Load 1.2
Protection Class IP 65 Ultimate Load Limit 1.5
Input Impedance 350±15Ω Cable Length 2-3 x 3m
Wire Connection

Ex +: Red; Ex -Black; Sig +: Green; Sig -: White

(Pressure is positive, pulling is negative);





Drawings:

High Precision Stainless Steel Mini S type Load Cell Pull Force Sensor  5N 10N 20N 50N 100N 200N 300N 500N 1000N 2000N 0

-



SIZE(mm)

CAP (N)

M H A B Material Weight
5,10,20 M3 6 16 19.1 Stainless steel 0.1kg
50,100,200,300,500 M4 6 16 19.1
250,300,500,1000,2000 M8 14 26 40
