    Product Details:

    Place of Origin: China Mainland
    Brand Name: Jetacon
    Certification: CE
    Model Number: L-S-16

    Payment & Shipping Terms:

    Minimum Order Quantity: 3 Pieces
    Price: US $149.99
    Packaging Details: Standard Export Carton
    Delivery Time: 7-15 days
    Payment Terms: T/T, L/C, Paypal, Payoneer
    Supply Ability: 100 /Pieces per Day
    Contact Now
    Detailed Product Description
    Channel: 16 Voltage Output: DC24V
    Current Output: 16A

    Function Description:

    Din Rail Mounting
    8 Relay open Close ports
    Can have up8Separate areas
    Each Channel Having a lamp protection delay
    Each channel start with a delay
    Each channel Have Overload protection
    Each channel Start button has priority
    Fire has played a strong function (need fire protection system provides normally open dry contact signal)
    Each Channel has a status indicatorLED
    Overheating protection function
    Can Remote programming and management

    parameters:
    Working conditions Voltage DC24V Load capacity Number of Channels 8 channel
    Power 30mA ~ 450mA Load voltage AC250V
    Temperature -20 ~ 60 Load current per channel 16A (resistive)
    Relative humidity 20% to 90% (non-condensing) Overload Have
    Storage conditions Temperature -30 ~ 70 Other Signal Modbus / RS485

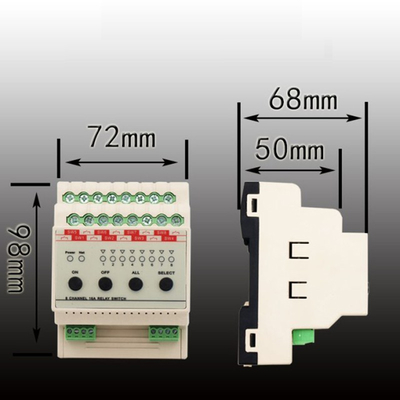

    Relative humidity 20% to 93% (non-condensing) Dimensions 72mm × 68mm × 62mm
