Stepper Motor Driver TB6560 4 axis Controller Board for CNC Engraving Machine 0-10V

Stepper Motor Driver TB6560 4 axis Controller Board for CNC Engraving Machine 0-10V

    • Stepper Motor Driver TB6560 4 axis Controller Board for CNC Engraving Machine 0-10V
    • Stepper Motor Driver TB6560 4 axis Controller Board for CNC Engraving Machine 0-10V
    • Stepper Motor Driver TB6560 4 axis Controller Board for CNC Engraving Machine 0-10V
    • Stepper Motor Driver TB6560 4 axis Controller Board for CNC Engraving Machine 0-10V
  • Stepper Motor Driver TB6560 4 axis Controller Board for CNC Engraving Machine 0-10V

    Product Details:

    Place of Origin: China Mainland
    Brand Name: Jetacon
    Certification: CE
    Model Number: TB6560-4axis

    Payment & Shipping Terms:

    Minimum Order Quantity: 5 pieces
    Price: US $49.99
    Packaging Details: Standard Export Carton
    Delivery Time: 7-15 days
    Payment Terms: T/T, L/C, Paypal, Payoneer
    Supply Ability: 100pcs / per day
    Contact Now
    Detailed Product Description
    Axis: 4

    Description:

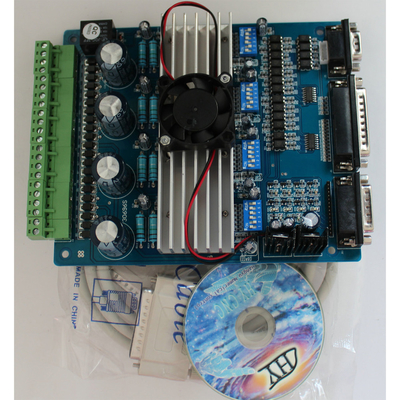

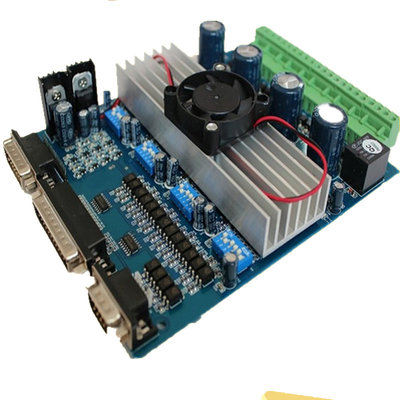

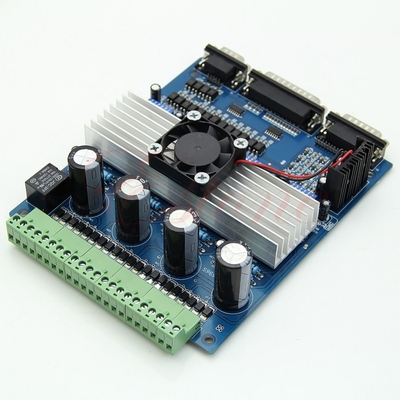

    Toshiba TB6560AHQ chip - High power, maximum 3.5A drive current chipset
    1-1/16 microstep setting - Higher accuracy and smoother operation than standard 1, 1/2 step!
    Adjustable drive current settings for each axis - 25%,50%,75%,100% of full current can be set for different stepper motors
    Overload, over-current and over-temperature safety - Full protection for your computer and peripheral equipment
    On board current switching - Power output can be set according to specific user requirement
    Full closed-type optical isolation to protect the user\'s computer and equipment
    Relay spindle interface - Outputs Max. 36V 7.5A for spindle motors or coolant pump (only one device can be powered by this output!)
    4 channel inputs interface- Can be used for XYZ limit and emergency stop
    Professional design - Two stage signal processing with super anti-jamming
    Bipolar constant current chopper drive with non-resonant region - Controls motors smoothly through range without creep effect
    Four control inputs (divided into pairs of knives) - Allows setting of limit and emergency stop
    Universal architecture - Supports most parallel software MACH3, KCAM4, EMC2 etc!
    Board size:18.5x14x4cm(approx)
    Cable length: 130cm(approx)

    -

    Dip settings:

    •
      Current Setting 1 2 Decay Mode Settings 3 4 MicroStep Settings 5 6
      100% ON ON FAST ON ON 1 ON ON
      75% OFF ON 25% ON OFF 1/2 ON OFF
      50% ON OFF 50% OFF ON 1/8 OFF OFF
      25% OFF OFF SLOW OFF OFF 1/16 OFF ON

    -



    Package includes:

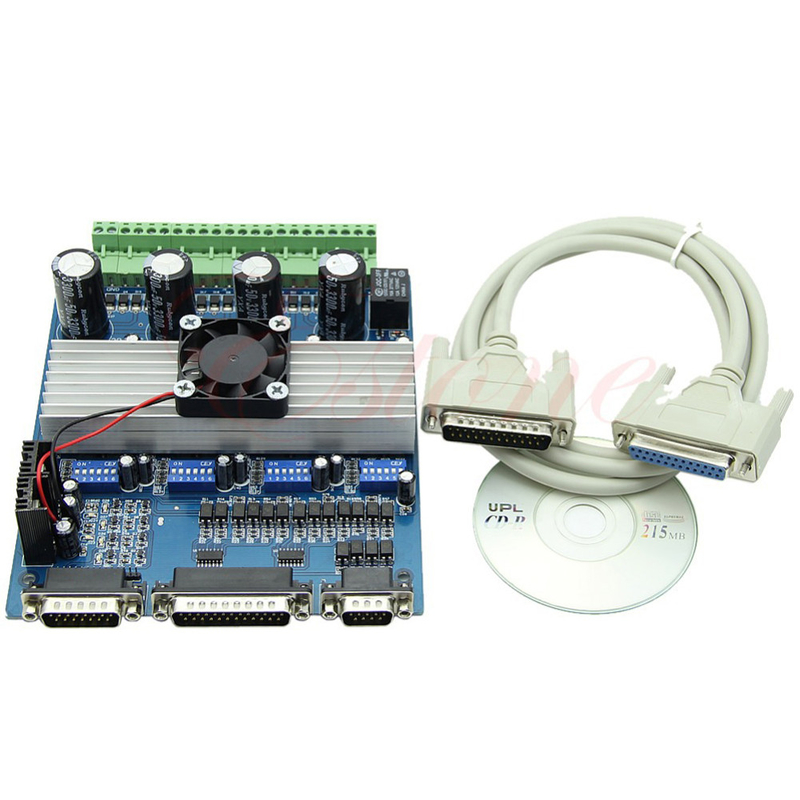

    CNC TB6560 4 Axis Stepper Motor Driver Controller Board x 1
    Cable x 1
    CD x 1
