    Product Details:

    Place of Origin: China Mainland
    Brand Name: Jetacon
    Certification: CE
    Model Number: KTO 011 / KTS 011

    Payment & Shipping Terms:

    Minimum Order Quantity: 10 pieces
    Price: US $9.99
    Packaging Details: Standard Export Carton
    Delivery Time: 7-15 days
    Payment Terms: T/T, L/C, Paypal, Payoneer
    Supply Ability: 500pcs / per day
    Contact Now
    Detailed Product Description
    Material: ABS Plastic Range: 0°C To +60°C

    Large setting range
    Simple to mount
    High switching performance
    Wide adjustment range
    Color coded temperature dials
    35mm DIN rail mountable

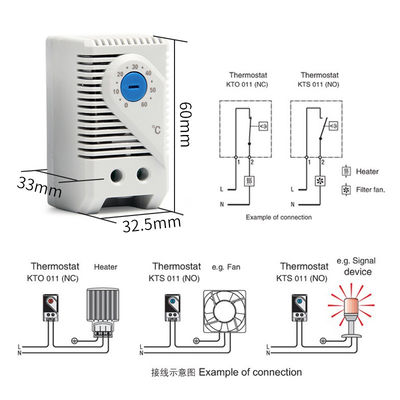

    KTO011: Thermostat (normally closed); for regulating heaters.
    KTS011: Thermostat (normally open); for regulating of filter fans and heat exchangers
    or for switching signal devised when temperature limit has been exceeded.



    Heaters and cooling equipment can be switched independently from each other

    with a temperature offset as opposed to the usual change-over contacts.



    ZR011 : Dual Thermostat, NC and NO ( Normal closed and Normall open ) in one case

    MFR 012: Mechanical Hygrostat 35 to 95% RH



    Switch temperature difference 7K (± 4K tolerance)

    Sensor element thermostatic bimetal

    Contact type snap-action contact

    Service life > 100,000 cycles

    Max. Switching capacity : 250VAC, 10 (2) A 120VAC, 15 (2) A DC 30W



    Connection
    2-pole terminal, clamping torque 0.5Nm max.: rigid wire 2.5mm² stranded wire (with wire end ferrule) 1.5mm²



    Mounting: clip for 35mm DIN rail, EN60715 (or for exit filter EF 118 Series)

    Casing: plastic according to UL94 V-0, light grey

    Dimensions 60 x 33 x 43mm

    Weight approx. 40g

    Fitting position variable

    Operating / Storage temperature -45 to +80°C (-49 to +176°F)

    Operating / Storage humidity max. 90 % RH (non-condensing)

    Protection type IP20
